Parts for Westinghouse WBRUCNG-199F:

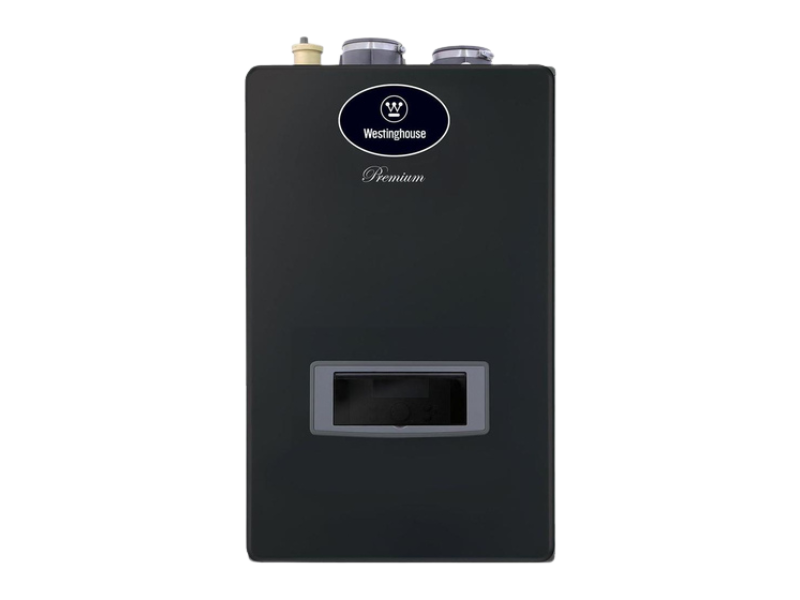

Premium, Gas Fired Residential Combi Boiler, Natural Gas, 199, Floor Standing

Manufacturer: Westinghouse


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


133 Parts

Component Description Serial Qty Price
P21148913 Base Assy, Floor Stand - 1.000 0.00 ADD TO CART
P21148914 Screws M5 x 12 mm - 2.000 0.00 ADD TO CART
P21148915 Anchor Wall Bracket - 1.000 0.00 ADD TO CART
P21148916 Screw M6 x 12 mm (Not Shown) - 1.000 0.00 ADD TO CART
P21148917 Right Side Panel w/Labels - 1.000 0.00 ADD TO CART
P21148918 Adapter 1 in x 1 in - 1.000 0.00 ADD TO CART
P21148919 Adapter ¾ in. x ¾ in. - 1.000 0.00 ADD TO CART
P21148920 Adapter ¾ in. x ½ in. - 1.000 0.00 ADD TO CART
P21148921 Adapter PVC ¾ in x ½ in. - 1.000 0.00 ADD TO CART
P21148922 Locknut – Electrical ½ in. - 1.000 0.00 ADD TO CART
P21148923 Barb Fitting ½ in. - 1.000 0.00 ADD TO CART
P21148924 Screw M4 x 10 mm - 1.000 0.00 ADD TO CART
P21148925 ¾ in. ID SS Flex – 22 in. Long - 1.000 0.00 ADD TO CART
P21148926 ¾ in. ID SS Flex – 24 in. Long - 1.000 0.00 ADD TO CART
P21148927 SS Gas Flex – 18 in. Long - 1.000 0.00 ADD TO CART
P21148928 Condensate Hose - 1.000 0.00 ADD TO CART
P21148929 Left Side Panel, Floor Stand - 1.000 0.00 ADD TO CART
P21148930 Front Cover Assy., Floor Stand - 1.000 0.00 ADD TO CART
P21042680 Exhaust Duct Assembly - 1.000 67.31 ADD TO CART
P21148763 Exhaust/Intake Duct Camps (100 dia.) - 2.000 32.23 ADD TO CART
P21148764 Exhaust/Intake Gaskets - 2.000 6.48 ADD TO CART
P21148765 Exhaust Duct - 1.000 0.00 ADD TO CART
P21148766 Combustion Analyzer Port Plug O-Ring - 1.000 39.66 ADD TO CART
P21148767 Combustion Analyzer - 1.000 0.00 ADD TO CART
P21148768 Intake and Exhaust Adapter O-Ring (85 dia.) - 2.000 0.00 ADD TO CART
P21148769 Exhaust Duct Inner Adapter - 2.000 0.00 ADD TO CART
P21148770 Exhaust Adapter O-Ring (75 dia.) - 2.000 3.30 ADD TO CART
P21148771 Air Intake Assembly - 1.000 0.00 ADD TO CART
P21148772 Air Intake Cap - 1.000 9.74 ADD TO CART
P21042692 Air Vent - 1.000 138.97 ADD TO CART
P21148773 Air Vent Grommet - 1.000 48.55 ADD TO CART
P21148774 PRV Ring - 1.000 0.00 ADD TO CART
P21042682 Condensate Air Pressure Switch - 1.000 70.99 ADD TO CART
P21148775 Control Board Bracket - 1.000 0.00 ADD TO CART
P21042696 Display Panel - 1.000 159.88 ADD TO CART
P21148776 Display Panel Bracket - 1.000 0.00 ADD TO CART
P21148777 Ignition Transformer - 1.000 87.57 ADD TO CART
P21148778 Control Board - 1.000 0.00 ADD TO CART
P21148779 Terminal Blocks Bracket - 1.000 0.00 ADD TO CART
P21042650 Manual Power Switch - 1.000 12.79 ADD TO CART
P21042649 Terminal Block 6P – Combi - 1.000 10.76 ADD TO CART
P21042670 Condensate Block APS - 1.000 58.18 ADD TO CART
P21042689 Front Cover - 1.000 88.59 ADD TO CART
P21042659 Display Panel Cover - 1.000 50.77 ADD TO CART
P21148780 Exhaust Adapter Sealing Gasket - 1.000 0.00 ADD TO CART
P21148781 Cabinet - 1.000 0.00 ADD TO CART
P21148782 Wire Gland - 1.000 0.00 ADD TO CART
P21148782 P21042686 CH Pressure Gauge - 1.000 107.83 ADD TO CART
P21148783 Wire Harness (Not Shown) - 1.000 0.00 ADD TO CART
P21042658 DHW Outlet Pipe - 1.000 63.98 ADD TO CART
P21042175 ¾ in. Pipe Gasket - 5.000 23.30 ADD TO CART
P21042637 P18 O-Ring - 2.000 23.46 ADD TO CART
P21148784 Clip (DHW Inlet) - 6.000 0.00 ADD TO CART
P21042666 DHW Inner Block - 1.000 59.66 ADD TO CART
P21042648 P22A O-Ring - 8.000 35.94 ADD TO CART
P21148785 Pipe Adapter Clip - 3.000 0.00 ADD TO CART
P21148786 DHW Outlet Adapter - 1.000 0.00 ADD TO CART
P21148786 P21042660 DHW Temperature Sensor - 1.000 53.32 ADD TO CART
P21042662 DHW Inlet Pipe - 1.000 61.10 ADD TO CART
P21042695 DHW Flow Sensor - 1.000 127.11 ADD TO CART
P21042701 Mixing Valve - 1.000 216.04 ADD TO CART
P21042174 P15 O-Ring - 3.000 23.01 ADD TO CART
P21042638 P16 O-Ring - 6.000 23.75 ADD TO CART
P21148787 DHW Outer Block - 1.000 0.00 ADD TO CART
P21042691 DHW Inlet Filter Block - 1.000 139.75 ADD TO CART
P21042657 Flow Restrictor - 1.000 17.57 ADD TO CART
P21042652 DHW Inlet Filter - 1.000 12.79 ADD TO CART
P21042647 P20 O-Ring - 4.000 37.74 ADD TO CART
P21042653 DHW Inlet Block Cap - 2.000 45.53 ADD TO CART
P21042674 DHW Inlet Adapter - 1.000 65.60 ADD TO CART
P21042640 CH Return Block w/Filter - 1.000 35.94 ADD TO CART
P21042634 P22 O-Ring - 4.000 23.75 ADD TO CART
P21148788 CH Return Block w/Filter Clips - 2.000 0.00 ADD TO CART
P21148789 Pressure Gauge Clip - 1.000 0.00 ADD TO CART
P21042676 CH Return Adapter - 2.000 68.89 ADD TO CART
P21042673 Filter for CH Return Block - 1.000 61.10 ADD TO CART
P21042641 CH Filter Clip - 1.000 35.94 ADD TO CART
P21148790 CH Return Pipe - 1.000 0.00 ADD TO CART
P21042661 CH Return Temperature Sensor - 1.000 53.32 ADD TO CART
P21042693 3 Way Valve Assembly - 1.000 123.57 ADD TO CART
P21042646 P25 O-Ring - 1.000 35.94 ADD TO CART
P21148791 Pump Clip - 1.000 0.00 ADD TO CART
P21148792 CH Supply Lower Pipe - 1.000 0.00 ADD TO CART
P21042639 1 in. Pipe Gasket - 3.000 23.46 ADD TO CART
P21042714 Internal Pump / DHW Storage Pump - 1.000 779.51 ADD TO CART
P21042675 Exhaust Temperature Sensor and Sensor O-Ring - 2.000 68.89 ADD TO CART
P21148793 Exhaust Temperature Sensor Clip - 1.000 43.36 ADD TO CART
P21042684 Exhaust Pipe Assembly - 1.000 102.69 ADD TO CART
P21042643 Exhaust Pipe Gasket - 1.000 34.23 ADD TO CART
P21148794 Storage Tank Clamp - 2.000 0.00 ADD TO CART
P21148795 Storage Tank Bracket - 1.000 0.00 ADD TO CART
P21042688 CH Supply Pipe - 1.000 108.83 ADD TO CART
P21042688 P21042709 Storage Tank - 1.000 385.69 ADD TO CART
P21042665 CH Supply Temperature Sensor - 1.000 57.20 ADD TO CART
P21042654 Water Level Detection Sensor (LWCO) - 1.000 45.53 ADD TO CART
P21148796 Flame Sensor Bracket - 1.000 0.00 ADD TO CART
P21042415 Flame Sensor - 1.000 35.20 ADD TO CART
P21148797 Flame Sensor Cover - 1.000 11.26 ADD TO CART
P21148798 Heat Exchanger Assembly - 051818SA301040 1.000 0.00 ADD TO CART
P21148799 Heat Exchanger Assembly 051818SA301041 - 1.000 0.00 ADD TO CART
P21148800 Burner Body - 1.000 0.00 ADD TO CART
P21148801 Burner Gasket - 1.000 0.00 ADD TO CART
P21042708 Ceramic Fiber Burner - 1.000 167.26 ADD TO CART
P21042663 Ignition Rod - 1.000 53.32 ADD TO CART
P21042418 Igniter Gasket - 1.000 43.36 ADD TO CART
P21042664 Burner Overheat Switch - 1.000 57.20 ADD TO CART
P21042642 Condensate Trap Assembly - 1.000 286.20 ADD TO CART
P21148802 Sight Glass - 1.000 0.00 ADD TO CART
P21042678 Exhaust APS Hose Fitting 051818SA301041 - 1.000 41.65 ADD TO CART
P21148803 Burner Inlet w/Damper - 1.000 0.00 ADD TO CART
P21148804 Air Damper 19G - 1.000 0.00 ADD TO CART
P21148805 Air Damper Guide - 1.000 0.00 ADD TO CART
P21148806 Fan Outlet Gasket - 1.000 0.00 ADD TO CART
P21148807 Burner Inlet Channel Gasket - 1.000 0.00 ADD TO CART
P21148808 Fan and Mixer Assembly - 1.000 0.00 ADD TO CART
P21042420 Fan - 1.000 201.24 ADD TO CART
P21148809 Fan O-Ring - 1.000 0.00 ADD TO CART
P21042656 Air Gas Mixer (Inner Part) - 1.000 53.32 ADD TO CART
P21042645 Air Gas Mixer Gasket - 1.000 35.94 ADD TO CART
P21042705 Air Gas Mixer (Outer Part) - 1.000 288.06 ADD TO CART
P21148810 Air Intake Hose Clamp - 2.000 0.00 ADD TO CART
P21042668 Air Intake Hose - 1.000 38.55 ADD TO CART
P21148811 APS Hose Fitting - 3.000 0.00 ADD TO CART
P21042707 Gas Valve Assembly - 1.000 314.89 ADD TO CART
P21148812 Gas Valve Outlet Adapter - 1.000 0.00 ADD TO CART
P21042633 Gas Valve O-Ring - 1.000 30.64 ADD TO CART
P21042698 Gas Valve - 1.000 224.63 ADD TO CART
P21148813 Gas Valve Bracket - 2.000 0.00 ADD TO CART
P21042644 ½ in. Gas Pipe Gasket - 1.000 6.91 ADD TO CART
P21042671 Gas Orifice Natural Gas 8.3 mm - 1.000 35.94 ADD TO CART
P21148814 Gas Pipe (to Mixer) - 1.000 0.00 ADD TO CART
P21148815 Gas Pipe (to Valve) - 1.000 0.00 ADD TO CART
P21042703 Gas Inlet Adapter ¾ in. - 1.000 261.28 ADD TO CART
