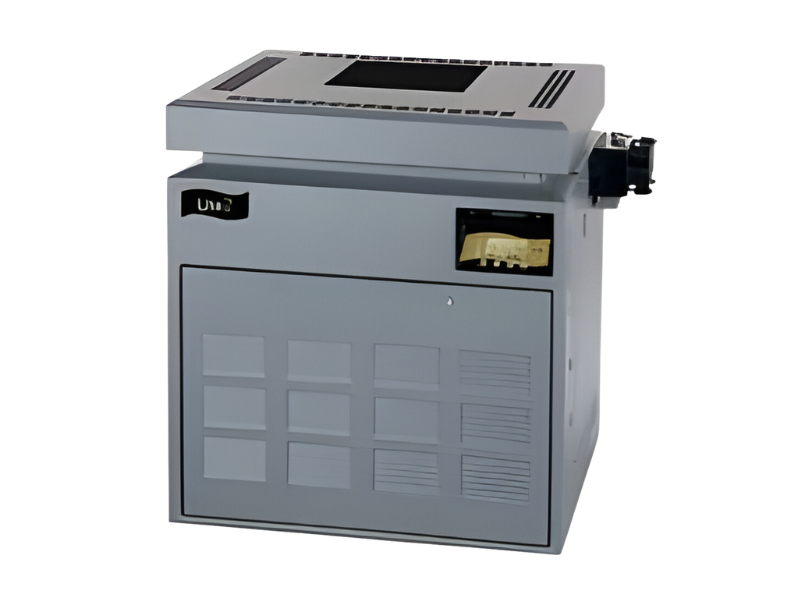

Parts for Teledyne Laars LJ175PBH:
Lite2 LJ, Lite2 LJ Pool and Spa Heater, 175, Propane, Bronze (Copper HX/Bronze Headers), High Altitude
Manufacturer: Teledyne Laars
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
87 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10128796 | Burner Tray, Shelf Only | - | 1.000 | $ 0.00 | ADD TO CART |
|
P10120570 | Gas Valve, LPG | - | 1.000 | $ 504.83 | ADD TO CART |
|
P10114730 | Burner Assy With Flame Sensor | - | 1.000 | $ 368.88 | ADD TO CART |
|
P10016566 | Burner, Main | - | 1.000 | $ 22.57 | ADD TO CART |
|
P10111924 | Heater Control Assembly | - | 1.000 | $ 0.00 | ADD TO CART |
|
P10127168 | High Voltage Assembly | - | 1.000 | $ 579.64 | ADD TO CART |
|
P10121740 | Transformer with Wiring Harness | - | 1.000 | $ 81.02 | ADD TO CART |
|
P10110560 | Power Control Board | - | 1.000 | $ 878.26 | ADD TO CART |
|
P10107256 | 115/230 VAC Conversion Plug | - | 1.000 | $ 98.72 | ADD TO CART |
|
P10142551 | Bezel | - | 1.000 | $ 884.74 | ADD TO CART |
|
P10112214 | Temperature Sensor | - | 1.000 | $ 121.28 | ADD TO CART |
|
P10137550 | Temperature Sensor Retainer Bracket | - | 1.000 | $ 7.58 | ADD TO CART |
|
P10137070 | Retainer Bracket Screw | - | 1.000 | $ 3.95 | ADD TO CART |
|
P10107208 | Pressure Switch, 2 PSI | - | 1.000 | $ 120.76 | ADD TO CART |
|
P10147353 | Pressure Switch, 1 PSI | - | 1.000 | $ 220.19 | ADD TO CART |
|
P10107210 | Pressure Switch, 1-10 PSI | - | 1.000 | $ 202.17 | ADD TO CART |
|
P10108146 | Siphon Loop Assembly | - | 1.000 | $ 154.11 | ADD TO CART |
|
P10108884 | High-Limit Switch Assembly | - | 1.000 | $ 102.73 | ADD TO CART |
|
P10107214 | High-Limit Switch, 135 deg. F | - | 1.000 | $ 49.98 | ADD TO CART |
|
P10111396 | High-Limit Switch, 150 deg. F | - | 1.000 | $ 49.98 | ADD TO CART |
|
P10144146 | High-Limit Switch Retainer Clip | - | 1.000 | $ 0.00 | ADD TO CART |
|
P10137625 | High-Limit Switch Cover | - | 1.000 | $ 4.77 | ADD TO CART |
|
P10107204 | Fusible Link Assembly | - | 1.000 | $ 58.65 | ADD TO CART |
|
P10137332 | Fusible Link Bracket | - | 1.000 | $ 3.17 | ADD TO CART |
|
P10111402 | Igniter | - | 1.000 | $ 237.81 | ADD TO CART |
|
P10142559 | Igniter Fuse Assy (set of 2) | - | 1.000 | $ 37.98 | ADD TO CART |
|
P10108162 | Wire Harnesses, Temp/Ignition Control | - | 1.000 | $ 115.12 | ADD TO CART |
|
P10155833 | Top Enclosure | - | 1.000 | $ 537.18 | ADD TO CART |
|
P10120572 | Top Filler Plate | - | 1.000 | $ 71.02 | ADD TO CART |
|
P10128736 | Rainshield Kit | - | 1.000 | $ 115.57 | ADD TO CART |
|
P10152916 | Flue Collector Assembly | - | 1.000 | $ 277.57 | ADD TO CART |
|
P10129782 | Outdoor Vent Cap (U.S.) | - | 1.000 | $ 215.02 | ADD TO CART |
|
P10130132 | Indoor Drafthood (U.S.) | - | 1.000 | $ 267.31 | ADD TO CART |
|
P10141879 | Flue Transition Plate | - | 1.000 | $ 31.99 | ADD TO CART |
|
P10006016 | Adapter Plate | - | 1.000 | $ 20.26 | ADD TO CART |
|
P10005330 | Clip | - | 1.000 | $ 16.73 | ADD TO CART |
|
P10131164 | Inlet/Outlet Header, Bronze, 2 in. | - | 1.000 | $ 1,625.06 | ADD TO CART |
|
P10155707 | Return Header, Bronze(Includes set of 9 gaskets) | - | 1.000 | $ 558.96 | ADD TO CART |
|
P10108144 | Header Bolt Assembly (Set of 8) | - | 1.000 | $ 39.31 | ADD TO CART |
|
P10015810 | Bolt for Headers, 2 1/2 in. | - | 1.000 | $ 4.26 | ADD TO CART |
|
P10015752 | Nut for Headers | - | 1.000 | $ 1.87 | ADD TO CART |
|
P10108142 | Header Gasket Assembly (Set of 18) | - | 1.000 | $ 93.57 | ADD TO CART |
|
P10123062 | Flange & Gasket Assembly (Set of 2 ) | - | 1.000 | $ 433.96 | ADD TO CART |
|
P10146149 | Flange, 2 in. | - | 1.000 | $ 86.46 | ADD TO CART |
|
P10140403 | Flange Gasket, 2 in. | - | 1.000 | $ 30.15 | ADD TO CART |
|
P10138753 | Flange Gasket, 1 1/2 - 2 in. | - | 1.000 | $ 14.17 | ADD TO CART |
|
P10138755 | Flange Sleeve, 2 in. | - | 1.000 | $ 13.26 | ADD TO CART |
|
P10015782 | Flange Bolt | - | 1.000 | $ 3.41 | ADD TO CART |
|
P10107228 | Rubber Grommet for Drain Plug | - | 1.000 | $ 10.94 | ADD TO CART |
|
P10138504 | Brass Connector Body | - | 1.000 | $ 4.74 | ADD TO CART |
|
P10016768 | Brass Drain Plug 1/4 in. | - | 1.000 | $ 9.47 | ADD TO CART |
|
P10016772 | Brass Plug, 3/4 in. | - | 1.000 | $ 12.56 | ADD TO CART |
|
P10146134 | By-Pass Assembly with spring (Bronze Cap) | - | 1.000 | $ 81.13 | ADD TO CART |
|
P10107200 | By-Pass Valve Disc | - | 1.000 | $ 8.76 | ADD TO CART |
|
P10140394 | By-Pass Valve Spring, White | - | 1.000 | $ 13.92 | ADD TO CART |
|
P10107198 | By-Pass Valve Gasket | - | 1.000 | $ 5.12 | ADD TO CART |
|
P10131386 | Heat Exch. Tube Assy. (Incl. set of 18 gaskets) | - | 1.000 | $ 2,014.72 | ADD TO CART |
|
P10146139 | Heat Exchanger Baffle (8 Required) | - | 1.000 | $ 78.61 | ADD TO CART |
|
P10005478 | Heat Exchanger Support Clip (2 Required) | - | 1.000 | $ 24.69 | ADD TO CART |
|
P10117982 | Heat Exchanger End Baffles (2 Required) | - | 1.000 | $ 15.86 | ADD TO CART |
|
P10119506 | Gap Closure, Inlet/Outlet | - | 1.000 | $ 18.13 | ADD TO CART |
|
P10118946 | Gap Closure, Return | - | 1.000 | $ 21.99 | ADD TO CART |
|
P10015794 | Button Plug, 1-3/4 in. | - | 1.000 | $ 2.94 | ADD TO CART |
|
P10139499 | Button Plug, 2 in. (With hole for gas line) | - | 1.000 | $ 3.66 | ADD TO CART |
|
P10111900 | Pressure Relief Valve 3/4 in. NPT, 75 PSI | - | 1.000 | $ 453.20 | ADD TO CART |
|
P10020570 | Touch Up Spray Paint, Pewter | - | 1.000 | $ 32.93 | ADD TO CART |
|
P10141336 | Remote Control Wire Harness | - | 1.000 | $ 0.00 | ADD TO CART |
| P10130760 | Burner Tray Assy, LPG | - | 1.000 | $ 1,871.72 | ADD TO CART | |
| P10138046 | Anti-Rotation Bracket | - | 1.000 | $ 6.90 | ADD TO CART | |
| P21138759 | Manifold Assy, L.P. Gas, 0-5K ft. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21138716 | Gasket, Temperature Sensor | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21138717 | Pressure Switch & Siphon Loop Assembly (2 PSI) | - | 1.000 | $ 0.00 | ADD TO CART | |
|
P10145785 | High-Limit Switch Retainer Boot | - | 1.000 | $ 115.63 | ADD TO CART |
| P10145664 | High-Limit Switch Wire Harness | - | 1.000 | $ 86.68 | ADD TO CART | |
| P10136684 | Igniter Box Assembly Kit | - | 1.000 | $ 0.01 | ADD TO CART | |
| P10209316 | Flue Collector Hold Down Clamp | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10137152 | Washer for Headers | - | 1.000 | $ 2.30 | ADD TO CART | |
| P10139425 | By-Pass Valve Rod | - | 1.000 | $ 12.79 | ADD TO CART | |
| P10137145 | Brass Nut (For Rod) | - | 1.000 | $ 1.93 | ADD TO CART | |
| P10145667 | By-Pass Valve Control Cap (Bronze) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10137144 | Control Cap Bolts (2 Required) | - | 1.000 | $ 2.12 | ADD TO CART | |
| P21138720 | Baffle Retainer | - | 1.000 | $ 34.96 | ADD TO CART | |
| P10150315 | Door with Latch | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10157890 | Jacket Assembly, Less Top Assembly | - | 1.000 | $ 1,094.03 | ADD TO CART | |
| P10015786 | Button Plug, 7/8 in. | - | 1.000 | $ 3.41 | ADD TO CART | |
| P10005636 | Noncombustible Base | - | 1.000 | $ 335.29 | ADD TO CART | |
| P21138721 | Touch Up Spray Paint, Black | - | 1.000 | $ 0.00 | ADD TO CART |
