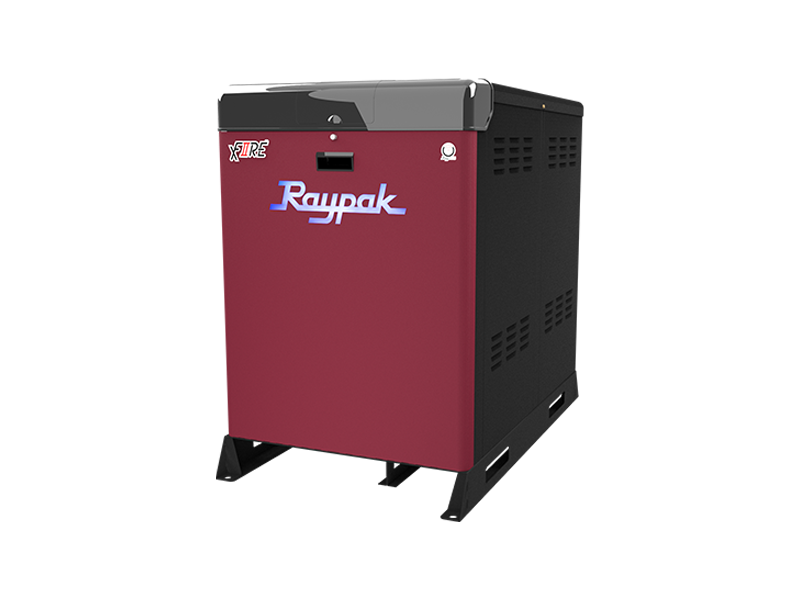

Parts for Raypak, Inc. WH7-1000B:
XFiire, Water Heater Electronic Modulation, 1000B
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
130 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10119804 | Auto Reset Adjustable High Limit 180°F Max | - | 1.000 | $ 553.42 | ADD TO CART |
|
P10026108 | Manual Reset Adjustable High Limit 180°F Max | - | 1.000 | $ 479.98 | ADD TO CART |
|
P10120040 | Inlet Sensor (2 Wire) | - | 1.000 | $ 77.25 | ADD TO CART |
|
P10028572 | Outlet Sensor (4 Wire) | - | 1.000 | $ 127.14 | ADD TO CART |
|
P10113752 | Sensor Water 10K (Not Shown) | - | 1.000 | $ 90.03 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 357.41 | ADD TO CART |
|
P10000058 | Flow Switch Paddle (Taco) | - | 1.000 | $ 157.59 | ADD TO CART |
|
P10028628 | Fuse 5 Amp (Fast Acting) | - | 1.000 | $ 29.87 | ADD TO CART |
|
P10120094 | PC Board VERSA IC | - | 1.000 | $ 988.80 | ADD TO CART |
|
P10119976 | Blocked Vent Pressure Switch | - | 1.000 | $ 148.50 | ADD TO CART |
|
P10125128 | Transformer 115/24 VA | - | 1.000 | $ 251.08 | ADD TO CART |
|
P10119970 | Relay DPDT 24V NO/NC | - | 1.000 | $ 85.47 | ADD TO CART |
|
P10026488 | Contactor | - | 1.000 | $ 333.72 | ADD TO CART |
|
P10024530 | Hose Duct 6" (TruSeal) | - | 1.000 | $ 60.77 | ADD TO CART |
|
P10122824 | Inlet Gas Filter (Not Shown) | - | 1.000 | $ 143.17 | ADD TO CART |
|
P10029782 | Bleedle Valve G1/8 BSP | - | 1.000 | $ 28.84 | ADD TO CART |
|
P10027188 | Solenoid Safety Shut Off Valve M-10 (Optional) | - | 1.000 | $ 908.46 | ADD TO CART |
|
P10113758 | Switch Low Gas Pressure (Optional) | - | 1.000 | $ 363.59 | ADD TO CART |
|
P10113560 | Switch Low Gas Pressure w/M-1 or M-10 (Optional) (Not Shown) | - | 1.000 | $ 334.07 | ADD TO CART |
|
P10026984 | Switch High Gas Pressure (Optional) | - | 1.000 | $ 363.59 | ADD TO CART |
|
P10113452 | Drain Valve | - | 1.000 | $ 101.97 | ADD TO CART |
|
P10113568 | T & P Gauge 0-90 PSI | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10113618 | T & P Gauge 0-200 PSI | - | 1.000 | $ 96.82 | ADD TO CART |
|
P10113578 | PRV 60 PSI | - | 1.000 | $ 189.10 | ADD TO CART |
|
P10024330 | PRV 75 PSI | - | 1.000 | $ 160.68 | ADD TO CART |
|
P10119838 | PRV 125 PSI | - | 1.000 | $ 136.99 | ADD TO CART |
|
P10113580 | PRV 150 PSI | - | 1.000 | $ 327.54 | ADD TO CART |
|
P10119916 | RTV Sealant 2.8 OZ (Not Shown) | - | 1.000 | $ 167.89 | ADD TO CART |
|
P10113424 | RTV Sealant 10 OZ (Not Shown) | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10113582 | Remote Sensor (LWCO) | - | 1.000 | $ 121.54 | ADD TO CART |
|
P10113548 | Control PC Board (LWCO) | - | 1.000 | $ 432.60 | ADD TO CART |
|
P10113398 | Test / Reset Switch (LWCO) | - | 1.000 | $ 114.33 | ADD TO CART |
|
P10133306 | Pump Inline BR Medium WH7 | - | 1.000 | $ 3,273.34 | ADD TO CART |
|
P10120070 | Pump Flange Gasket 1611 | - | 1.000 | $ 175.21 | ADD TO CART |
|
P10120008 | Air Filter Media | - | 1.000 | $ 74.16 | ADD TO CART |
| P21027933 | Front Door Assembly | - | 1.000 | $ 1,069.14 | ADD TO CART | |
| P21027934 | Front Door Insulation | - | 1.000 | $ 986.74 | ADD TO CART | |
| P21027935 | Observation Port | - | 1.000 | $ 294.58 | ADD TO CART | |
| P21027936 | Igniter | - | 1.000 | $ 715.85 | ADD TO CART | |
| P21027937 | Flame Sensor | - | 1.000 | $ 214.24 | ADD TO CART | |
| P21027940 | Burner Adapter | - | 1.000 | $ 671.56 | ADD TO CART | |
| P21027945 | Burner | - | 1.000 | $ 1,328.70 | ADD TO CART | |
| P21027947 | Flue Clamping Ring and Gasket | - | 1.000 | $ 29.87 | ADD TO CART | |
| P21027948 | Insulation (Inside Rear of the Combustion Chamber) | - | 1.000 | $ 882.71 | ADD TO CART | |
| P21038629 | PIM (Platform Ignition Module) Multi Try | - | 1.000 | $ 971.29 | ADD TO CART | |
| P21038630 | PIM (Platform Ignition Module) Single Try | - | 1.000 | $ 1,154.63 | ADD TO CART | |
| P10425431 | Pump Relay 120Vac | - | 1.000 | $ 81.37 | ADD TO CART | |
| P21027952 | Fuse 3/4 Amp (Not Shown) | - | 1.000 | $ 43.26 | ADD TO CART | |
| P21027953 | Transformer 208/120V 650VA | - | 1.000 | $ 739.54 | ADD TO CART | |
| P21027955 | On/Off Circuit Breaker Switch 7.5 Amp | - | 1.000 | $ 125.66 | ADD TO CART | |
| P10113674 | Terminal Block w/Ground Lug | - | 1.000 | $ 39.14 | ADD TO CART | |
| P21027956 | Control Bezel | - | 1.000 | $ 178.19 | ADD TO CART | |
| P21027957 | Gasket Touchscreen Display | - | 1.000 | $ 36.05 | ADD TO CART | |
| P21027958 | Control Bezel Cover | - | 1.000 | $ 78.28 | ADD TO CART | |
| P21027959 | Touchscreen Display PC Board | - | 1.000 | $ 1,568.69 | ADD TO CART | |
| P21038698 | SD Card WiFi Disabled (Not Shown) | - | 1.000 | $ 111.24 | ADD TO CART | |
| P21149206 | SD Card WiFi Enabled (Not Shown) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10031132 | On/Off Switch | - | 1.000 | $ 74.16 | ADD TO CART | |
| P10416395 | WIFI ANTENNA | - | 1.000 | $ 75.19 | ADD TO CART | |
| P21027960 | Indicator LED Strip | - | 1.000 | $ 180.25 | ADD TO CART | |
| P10030224 | Reset Switch Touchscreen | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10026958 | AC/DC Adapter | - | 1.000 | $ 256.47 | ADD TO CART | |
| P21045619 | Blower Combustion Air | - | 1.000 | $ 1,335.91 | ADD TO CART | |
| P21027966 | Plenum Assembly | - | 1.000 | $ 133.90 | ADD TO CART | |
| P10031312 | Valve Gas Modulating 120V | - | 1.000 | $ 3,044.68 | ADD TO CART | |
| P10028128 | Valve Coil 120V | - | 1.000 | $ 2,512.17 | ADD TO CART | |
| P21027970 | Swirler | - | 1.000 | $ 1,243.21 | ADD TO CART | |
| P10027406 | O-rings (Includes Gas Valve and Adapter O-rings) | - | 1.000 | $ 189.10 | ADD TO CART | |
| P10027200 | Adapter Gas Valve 1-1/4" Inlet | - | 1.000 | $ 275.01 | ADD TO CART | |
| P10028134 | Adapter Gas Valve 1" Outlet Flow Control | - | 1.000 | $ 868.29 | ADD TO CART | |
| P10026982 | Valve Gas Ball (WOG) | - | 1.000 | $ 86.52 | ADD TO CART | |
| P10027186 | Motorized Safety Shut Off Actuator M-1 (Optional) | - | 1.000 | $ 2,386.51 | ADD TO CART | |
| P10028646 | Gas Valve Body M1 (Optional) | - | 1.000 | $ 741.60 | ADD TO CART | |
| P10027194 | Vent Valve Gas M-15 (Optional) | - | 1.000 | $ 805.46 | ADD TO CART | |
| P21027975 | Heat Engine (Complete with Burner and Sensors) | - | 1.000 | $ 26,113.59 | ADD TO CART | |
| P21027977 | Plumbing Assy Inlet | - | 1.000 | $ 2,710.96 | ADD TO CART | |
| P21027982 | Plumbing Assy Outlet | - | 1.000 | $ 3,630.75 | ADD TO CART | |
| P10126966 | PRV 30 PSI | - | 1.000 | $ 386.25 | ADD TO CART | |
| P10024328 | PRV 45 PSI | - | 1.000 | $ 172.01 | ADD TO CART | |
| P21027984 | Water Connection Clamps | - | 1.000 | $ 160.68 | ADD TO CART | |
| P21027985 | Condensate Trap | - | 1.000 | $ 311.06 | ADD TO CART | |
| P10028590 | Condensate Float Switch NC | - | 1.000 | $ 260.59 | ADD TO CART | |
| P21027986 | Condensate Hose | - | 1.000 | $ 1,260.72 | ADD TO CART | |
| P21027987 | Condensate Management | - | 1.000 | $ 640.66 | ADD TO CART | |
| P21027988 | Touch-up Paint Maroon | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P21027991 | Wire Harness Cabinet (Not Shown) | - | 1.000 | $ 1,077.38 | ADD TO CART | |
| P21027992 | Spark Cable High Tension Harness (Not Shown) | - | 1.000 | $ 123.60 | ADD TO CART | |
| P10029976 | Versa IC Communication Cable (Not Shown) | - | 1.000 | $ 88.58 | ADD TO CART | |
| P10031000 | Identification Card Harness (Not Shown) | - | 1.000 | $ 50.47 | ADD TO CART | |
| P21027993 | Barbed Sample Connector | - | 1.000 | $ 61.80 | ADD TO CART | |
| P10027570 | Plastic Handle | - | 1.000 | $ 46.35 | ADD TO CART | |
| P21027995 | Air Inlet Gasket | - | 1.000 | $ 50.47 | ADD TO CART | |
| P21027996 | Alarm Bell 24V (4") | - | 1.000 | $ 1,192.74 | ADD TO CART | |
| P21027997 | Alarm Buzzer 24V | - | 1.000 | $ 306.94 | ADD TO CART | |
| P10120150 | Relay 3PDT 24 VAC (Alarm) | - | 1.000 | $ 70.65 | ADD TO CART | |
| P10030944 | Gateway BACnet Interface Module B-85 | - | 1.000 | $ 2,252.61 | ADD TO CART | |
| P10030946 | Gateway LonWorks Interface Module B-86 | - | 1.000 | $ 2,252.61 | ADD TO CART | |
| P10024332 | Pump Inline BR Soft WH7 | - | 1.000 | $ 2,632.68 | ADD TO CART | |
| P21028000 | Jacket Top | - | 1.000 | $ 373.89 | ADD TO CART | |
| P21028001 | Front Door Assy | - | 1.000 | $ 300.76 | ADD TO CART | |
| P21028004 | Jacket Side Panel | - | 1.000 | $ 93.73 | ADD TO CART | |
| P21028007 | Jacket Rear Panel | - | 1.000 | $ 243.08 | ADD TO CART | |
| P21028008 | Access Panel Rear Wiring Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028010 | Access Panel Outlet Water | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028012 | Access Panel Inlet Water | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028014 | Access Panel Intake Air | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028016 | Access Panel Flue Sensor | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028017 | Control Bezel Mtg Panel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028018 | LED Light Bar Mtg Panel | - | 1.000 | $ 103.00 | ADD TO CART | |
| P21028019 | Vertical Cabinet Inner Corner Support | - | 1.000 | $ 153.47 | ADD TO CART | |
| P21028020 | Vertical Cabinet Middle Support | - | 1.000 | $ 53.56 | ADD TO CART | |
| P21028021 | Vertical Cabinet Front Corner Support | - | 1.000 | $ 94.76 | ADD TO CART | |
| P21028024 | Left Side Horizontal Support | - | 1.000 | $ 56.65 | ADD TO CART | |
| P21028027 | Right Side Horizontal Support | - | 1.000 | $ 56.65 | ADD TO CART | |
| P21028029 | Heat Engine Upper Support LT | - | 1.000 | $ 22.66 | ADD TO CART | |
| P21028030 | Heat Engine Upper Support RT | - | 1.000 | $ 42.23 | ADD TO CART | |
| P21028031 | Transformer Cover Assy | - | 1.000 | $ 95.79 | ADD TO CART | |
| P21028033 | Intake Air Flange (TruSeal) | - | 1.000 | $ 86.52 | ADD TO CART | |
| P21028034 | Rear Wiring Box | - | 1.000 | $ 73.13 | ADD TO CART | |
| P21028035 | Upper Rear Support | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21028036 | Cascade Mtg Bracket | - | 1.000 | $ 114.33 | ADD TO CART | |
| P21028038 | Outdoor Vent Termination Tee (Stainless Steel) | - | 1.000 | $ 840.48 | ADD TO CART | |
| P10028268 | Vent Termination Screen For Plastic Vent Tee | - | 1.000 | $ 86.52 | ADD TO CART | |
| P21028040 | Flue Exhaust Adapter Polypropylene Venting WH7 | - | 1.000 | $ 419.21 | ADD TO CART | |
| P21028042 | Flue Exhaust Adapter Stainless Steel Venting | - | 1.000 | $ 179.22 | ADD TO CART | |
| P10031064 | Vent Limit Switch Manual Reset | - | 1.000 | $ 101.49 | ADD TO CART | |
| P21028046 | Intake Air Filter Box | - | 1.000 | $ 223.51 | ADD TO CART | |
| P21028047 | Vertical Vent Support (Not Shown) | - | 1.000 | $ 284.28 | ADD TO CART | |
| P21038751 | Gas Conversions Nat to Pro. DSI Pilot | - | 1.000 | $ 22.66 | ADD TO CART |
