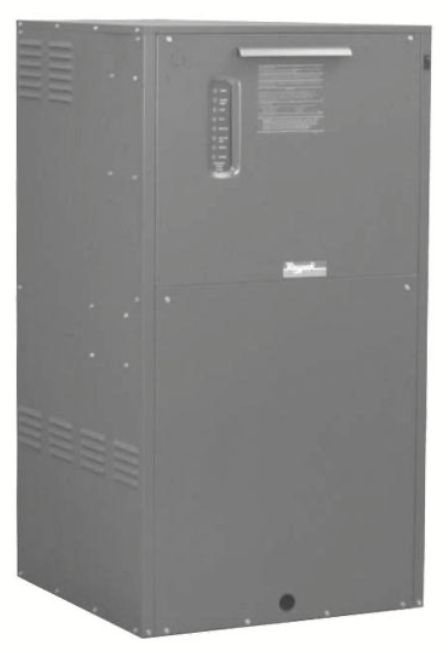

Parts for Raypak, Inc. WH1-500:

ADB, Water Heater On/Off, 500

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


107 Parts

Component Description Serial Qty Price
Part Image P10113540 Ignitor-Spark Rod - 1.000 143.17 ADD TO CART
Part Image P10113538 High Tension Wire - 1.000 111.24 ADD TO CART
Part Image P10119882 Pilot Burner (not shown) - 1.000 270.89 ADD TO CART
Part Image P10119818 Auto Reset High Limit - 1.000 353.29 ADD TO CART
Part Image P10122740 Flow Switch - 1.000 357.41 ADD TO CART
Part Image P10119820 Manual Reset High Limit - 1.000 388.31 ADD TO CART
Part Image P10113544 Printed Circuit Board - Central Point Wiring - 1.000 1,030.00 ADD TO CART
Part Image P10000038 Printed Circuit Board - U2 - 1.000 488.22 ADD TO CART
Part Image P10119822 Remote Aquastat- Storage tank (Tankstat) - 1.000 298.70 ADD TO CART
Part Image P10113550 Switch-Pressure Vent Normally Closed - 1.000 208.06 ADD TO CART
Part Image P10113552 Switch-Pressure Air Normally Open - 1.000 74.16 ADD TO CART
Part Image P10113434 Thermostat Manual Reset - 1.000 63.86 ADD TO CART
Part Image P10113450 Transformer 120/24 50 VA - 1.000 98.88 ADD TO CART
Part Image P10119884 Relay DPDT 24 VAC - 1.000 66.45 ADD TO CART
Part Image P10113546 Ignition Control IID - 1.000 584.01 ADD TO CART
Part Image P10113500 Switch-Rocker SPST 16A - 1.000 41.20 ADD TO CART
Part Image P10125090 Auto On/Off Valve (V-88) - 1.000 555.17 ADD TO CART
Part Image P10113560 Switch Low Gas Pressure - 1.000 292.52 ADD TO CART
Part Image P10119832 Valve Gas Manual A 1" - 1.000 148.50 ADD TO CART
Part Image P10113562 Valve Gas Manual B - 1.000 76.22 ADD TO CART
Part Image P10113564 Valve Pilot Gas Nat - 1.000 210.12 ADD TO CART
Part Image P10119830 Switch High Gas Pressure (optional) Not Shown - 1.000 297.01 ADD TO CART
Part Image P10131994 Return Header Bronze - 1.000 4,640.15 ADD TO CART
Part Image P10113584 Header Gasket (20 PCS) - 1.000 86.52 ADD TO CART
Part Image P10113570 Well-Bulb Sensor 1/2"x 3-5/16" - 1.000 48.41 ADD TO CART
Part Image P10113452 Drain Valve (Not Shown) - 1.000 101.97 ADD TO CART
Part Image P10119784 Flow Switch Paddle - 1.000 132.87 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1.000 70.04 ADD TO CART
Part Image P10113574 PRV 30 PSI - 1.000 219.39 ADD TO CART
Part Image P10113576 PRV 45 PSI - 1.000 143.17 ADD TO CART
Part Image P10113578 PRV 60 PSI - 1.000 189.10 ADD TO CART
Part Image P10024330 PRV 75 PSI - 1.000 160.68 ADD TO CART
Part Image P10119838 PRV 125 PSI - 1.000 136.99 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1.000 139.05 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ - 1.000 167.89 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ - 1.000 145.23 ADD TO CART
Part Image P10122748 Generator-Spark C-2 - 1.000 626.24 ADD TO CART
Part Image P10113582 Remote Sensor for Low Water Cut-Off - 1.000 121.54 ADD TO CART
Part Image P10113548 Low Water Cut Off PC Board - 1.000 416.12 ADD TO CART
Part Image P10024338 Blanket Return Header Refractory - 1.000 142.14 ADD TO CART
Part Image P10024366 Return Header Cover - 1.000 122.57 ADD TO CART
P10126956 Burner / Pilot Assembly IID - 1.000 1,834.43 ADD TO CART
P10024266 Burner / Pilot Assembly C-2 - 1.000 1,837.52 ADD TO CART
P10024282 Plenum Assembly Complete - 1.000 2,033.22 ADD TO CART
P10024274 Burner Block - 1.000 2,499.81 ADD TO CART
P10119814 Burner Housing Refractory Block - 1.000 198.79 ADD TO CART
P10119816 Baffle-Gas/Air Mixing - 1.000 590.19 ADD TO CART
P10024288 Plenum End Panel - 1.000 139.05 ADD TO CART
P10024300 Control Box Cover - 1.000 245.14 ADD TO CART
P10024302 Control Box Complete - 1.000 1,406.98 ADD TO CART
P10024304 Terminal Block 8 space - 1.000 239.99 ADD TO CART
P10113674 Terminal Block w/Ground Tab (Not Shown) - 1.000 143.17 ADD TO CART
P10024306 Connector-Wire Bonding 14/6 - 1.000 82.40 ADD TO CART
P10024228 Air Shutter Assembly - 1.000 534.57 ADD TO CART
P10024310 Cap Intake Vent - 1.000 140.08 ADD TO CART
P10024312 Bleed Line Assembly - 1.000 117.42 ADD TO CART
P10024314 Vent Line Assembly - 1.000 59.74 ADD TO CART
P10122742 Manifold-Gas Injector Nat - 1.000 903.31 ADD TO CART
P10024316 Manifold-Gas Injector Pro - 1.000 595.34 ADD TO CART
P10113554 Orifice-Pilot Air - 1.000 22.66 ADD TO CART
P10113556 Orifice-Pilot Pro - 1.000 13.39 ADD TO CART
P10113558 Orifice-Pilot Nat - 1.000 13.39 ADD TO CART
P10119824 Regulator Gas 1" Nat - 1.000 1,203.04 ADD TO CART
P10119828 Regulator Gas 1" Pro - 1.000 382.13 ADD TO CART
P10113566 Valve Pilot Gas Pro - 1.000 396.55 ADD TO CART
P10024322 Heat Transfer Assy. Cupro Nickel (Includes 17-S) - 1.000 16,432.62 ADD TO CART
P10025784 Heat Transfer Assy. Copper (Includes 17-S) - 1.000 15,537.55 ADD TO CART
P10129478 Inlet/Outlet Header Bronze - 1.000 3,239.35 ADD TO CART
P10122738 Studbolt HX 500-1000 - 1.000 170.98 ADD TO CART
P10113572 In Line Fuse Holder (Not Shown) - 1.000 163.77 ADD TO CART
P10119888 Fuse 15 AMP (Not Shown) - 1.000 272.95 ADD TO CART
P10024296 Guide PC Card - 1.000 26.78 ADD TO CART
P10113586 T & P Gauge 0-90 PSI - 1.000 217.33 ADD TO CART
P10113588 T & P Gauge 0-200 PSI - 1.000 289.43 ADD TO CART
P10028872 T & P Gauge 0-230 PSI - 1.000 103.00 ADD TO CART
P10113844 Touch Up Paint (Green) - 1.000 70.04 ADD TO CART
P10113846 Touch Up Paint (Dark Gray) - 1.000 70.04 ADD TO CART
P10024486 Amplifier-Flame Rectification C-2 - 1.000 690.10 ADD TO CART
P10122746 Control-Burner Flame Safeguard C-2 Ignition - 1.000 3,902.67 ADD TO CART
P10024488 Detector-UV Flame C-2 - 1.000 523.24 ADD TO CART
P10024490 Panel-Control Mounting - 1.000 63.86 ADD TO CART
P10132956 Pump -Circulating - Bronze (Soft Water) 2 in. - 1.000 3,205.36 ADD TO CART
P10024474 Pump -Circulating - Bronze (Hard Water) 2 in. - 1.000 10,092.97 ADD TO CART
P10024334 Pump -Circulating - CI (Soft Water) 2 in. - 1.000 5,137.64 ADD TO CART
P10024480 Pump -Circulating- CI (Hard Water) 2 in. - 1.000 6,685.73 ADD TO CART
P10024340 Jacket Top - 1.000 135.96 ADD TO CART
P10024344 Flue Collector Front (No opening) - 1.000 566.50 ADD TO CART
P10024352 Flue Collector Rear (Opening) - 1.000 1,242.18 ADD TO CART
P10024360 Support Channel - 1.000 229.69 ADD TO CART
P10024364 Control Box Cover - 1.000 128.75 ADD TO CART
P10024368 Door (Lower) - 1.000 96.82 ADD TO CART
P10024376 Jacket Upper Front Panel - 1.000 334.75 ADD TO CART
P10024382 Access Panel Flue (Lower) - 1.000 93.73 ADD TO CART
P10024390 Access Panel Flue (Upper) - 1.000 93.73 ADD TO CART
P10024398 Access Panel Flue (1 Pc.) (Blank-solid) - 1.000 118.45 ADD TO CART
P10024404 Jacket Side Right Panel - 1.000 177.16 ADD TO CART
P10024410 Jacket Side Right Panel Connection Option - 1.000 271.92 ADD TO CART
P10024418 Jacket Side Left Panel - 1.000 266.77 ADD TO CART
P10024426 Jacket Rear Panel - 1.000 261.62 ADD TO CART
P10024434 Jacket Rear Panel Connection Option - 1.000 319.30 ADD TO CART
P10024442 Base Assembly - 1.000 570.62 ADD TO CART
P10024446 Leg Bracket (4 pcs per boiler) - 1.000 398.61 ADD TO CART
P10119840 Base Reflector Panel - 1.000 93.73 ADD TO CART
P10024298 Control Box Assy - 1.000 326.51 ADD TO CART
P10024308 Bracket Pressure Switch MTG - 1.000 53.56 ADD TO CART
P10024320 Valve Pilot Mounting Bracket (Not shown) - 1.000 55.62 ADD TO CART
P10024458 Intake Air Cover Panel - 1.000 53.56 ADD TO CART
