Parts for Raypak, Inc. W2-0724:

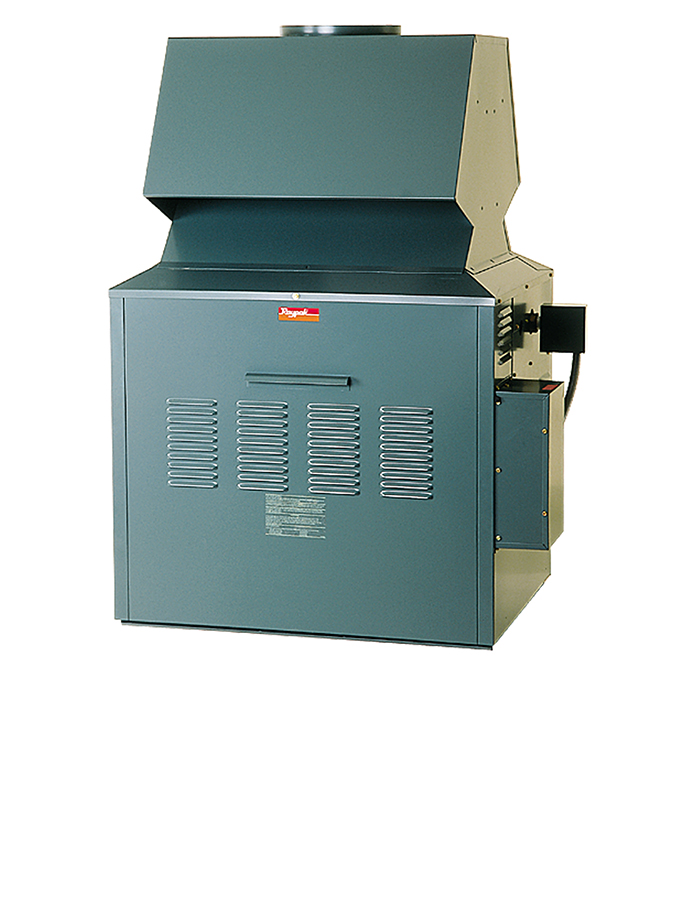

Raytherm, Water Heating Boiler Mechanical Modulation, 0724
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
101 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10133060 | Burner Tray w/Burners (Sea Level) | - | 1.000 | $ 3,693.58 | ADD TO CART |
|
P10003460 | Burner | - | 44.000 | $ 81.63 | ADD TO CART |
|
P10031564 | Burner Orifice Nat. #48 (Sea Level) | - | 44.000 | $ 21.63 | ADD TO CART |
|
P10031574 | Burner Orifice Pro. #57 (Sea Level) | - | 44.000 | $ 21.63 | ADD TO CART |
|
P10122682 | Auto and Manual Reset Dualstat | - | 1.000 | $ 768.38 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 358.24 | ADD TO CART |
|
P10126066 | Low Water Cut Off (Not Shown) | - | 1.000 | $ 918.76 | ADD TO CART |
|
P10113298 | Thermostat Economaster | - | 1.000 | $ 117.24 | ADD TO CART |
|
P10119784 | Flow Switch Paddle (McDonnel Miller) | - | 1.000 | $ 154.50 | ADD TO CART |
|
P10000058 | Flow Switch Paddle (Taco) | - | 1.000 | $ 183.34 | ADD TO CART |
|
P10113302 | Economaster II Control | - | 1.000 | $ 199.34 | ADD TO CART |
|
P10130766 | Inlet/Outlet Header Cast Iron | - | 1.000 | $ 897.13 | ADD TO CART |
|
P10130226 | Return Header Cast Iron | - | 1.000 | $ 735.42 | ADD TO CART |
|
P10130578 | Return Header Brass | - | 1.000 | $ 1,385.35 | ADD TO CART |
|
P10131788 | Return Pump Header Cast Iron | - | 1.000 | $ 1,203.04 | ADD TO CART |
|
P10132168 | Return Pump Header Brass | - | 1.000 | $ 2,644.78 | ADD TO CART |
|
P10122640 | Stud Bolt Kit | - | 1.000 | $ 168.92 | ADD TO CART |
|
P10122648 | Stud Bolt Kit w/Pump Header | - | 1.000 | $ 286.34 | ADD TO CART |
|
P10000140 | Header Gasket | - | 1.000 | $ 48.41 | ADD TO CART |
|
P10113570 | Sensor Well | - | 1.000 | $ 42.71 | ADD TO CART |
|
P10031488 | Well Retaining Clip | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10113450 | Transformer 50VA | - | 1.000 | $ 82.19 | ADD TO CART |
|
P10122748 | Spark Generator Ign C2, IRI, G13 (Not Shown) | - | 1.000 | $ 716.01 | ADD TO CART |
|
P10113596 | Relay SPST | - | 1.000 | $ 106.15 | ADD TO CART |
|
P10113642 | Relay DPDT | - | 1.000 | $ 133.87 | ADD TO CART |
|
P10113638 | Toggle Switch | - | 1.000 | $ 46.35 | ADD TO CART |
|
P10113760 | PRV 125 PSI [W1, W2, W3, N, R] | - | 1.000 | $ 121.74 | ADD TO CART |
|
P10125160 | Deliming Kit | - | 1.000 | $ 0.00 | ADD TO CART |
|
P10113618 | T & P Gauge [W1, W2, W3, N, R] | - | 1.000 | $ 128.65 | ADD TO CART |
|
P10132172 | Integral Pump 4-1/4 in. Impeller (Not Shown) | - | 1.000 | $ 2,789.85 | ADD TO CART |
|
P10132258 | Integral Pump 4.7 Impeller (Not Shown) | - | 1.000 | $ 2,571.88 | ADD TO CART |
|
P10130246 | Power Vent Motor | - | 1.000 | $ 4,555.73 | ADD TO CART |
|
P10032062 | Power Vent Wheel | - | 1.000 | $ 1,239.09 | ADD TO CART |
|
P10000014 | Power Vent PC Board | - | 1.000 | $ 267.80 | ADD TO CART |
|
P10031854 | Power Vent Pressure Switch | - | 1.000 | $ 78.28 | ADD TO CART |
|
P10000002 | Pilot Nat. IID | - | 1.000 | $ 140.08 | ADD TO CART |
|
P10119726 | Pilot Pro. IID | - | 1.000 | $ 368.74 | ADD TO CART |
|
P10120192 | Pilot Orifice Nat. IID, Standing, and C2 | - | 1.000 | $ 114.33 | ADD TO CART |
|
P10120194 | Pilot Orifice Pro. IID | - | 1.000 | $ 30.82 | ADD TO CART |
|
P10113324 | Ignition Control IID Nat. | - | 1.000 | $ 345.66 | ADD TO CART |
|
P10113326 | Ignition Control IID Pro./Lockout | - | 1.000 | $ 471.41 | ADD TO CART |
|
P10120174 | Pilot Mounting Bracket | - | 1.000 | $ 23.62 | ADD TO CART |
|
P10031694 | Pilot Tube (Specify Length) | - | 1.000 | $ 38.94 | ADD TO CART |
|
P10142821 | Ignitor Wire IID | - | 1.000 | $ 0.00 | ADD TO CART |
|
P10113296 | Hi Tension Wire | - | 1.000 | $ 96.82 | ADD TO CART |
|
P10025410 | Amplifier Flame Rectification C2 (not shown) | - | 1.000 | $ 742.63 | ADD TO CART |
|
P10133362 | Refractory Kit | - | 1.000 | $ 1,362.69 | ADD TO CART |
|
P10126050 | Refractory Retainer Kit | - | 1.000 | $ 263.68 | ADD TO CART |
|
P10131578 | Flue Collector | - | 1.000 | $ 1,033.09 | ADD TO CART |
|
P10113562 | Manual B Valve 1/8 in. [H1,H2,H3,W3,WH3,H6,W4,WH1,W1,W2,WH2,R,RH] | - | 1.000 | $ 71.38 | ADD TO CART |
|
P10119832 | Manual A Valve 1 in. [H1,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 169.95 | ADD TO CART |
|
P10113794 | Pressure Regulator Nat. 1/8 in. [H1,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 146.44 | ADD TO CART |
|
P10120190 | Pilot Gas Valve 120V [H1,H2,H3,W3,WH3,H6,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 305.00 | ADD TO CART |
|
P10113796 | Pilot Gas Valve 24V [H1,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 328.52 | ADD TO CART |
|
P10125090 | Auto On/Off Valve 1 in. [H1,H3,W3,WH3,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 637.57 | ADD TO CART |
|
P10125110 | Mod Valve 110-170 Nat. RS [H5,W2,WH2,N,NH] | - | 2.000 | $ 1,791.17 | ADD TO CART |
|
P10122696 | Comb. Gas Valve IID Nat. 1 in. [H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 777.82 | ADD TO CART |
|
P10122698 | Comb. Gas Valve IID Pro. 1 in. [H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 1,015.16 | ADD TO CART |
|
P10113560 | Gas Pressure Switch Low [H1,H2,H3,W3,WH3,H6,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 316.74 | ADD TO CART |
|
P10119830 | Gas Pressure Switch High [H1,H2,H3,W3,WH3,H6,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 319.77 | ADD TO CART |
| P10132856 | Burner Tray w/o Burners (Sea Level) | - | 1.000 | $ 3,661.65 | ADD TO CART | |
| P10133254 | Burner Tray w/Burners (Sea Level) | - | 1.000 | $ 2,513.20 | ADD TO CART | |
| P10023844 | Burner Tray w/Burners Robertshaw (Sea Level) | - | 1.000 | $ 3,962.41 | ADD TO CART | |
| P10022956 | Burner Tray w/o Burners (Sea Level) | - | 1.000 | $ 2,101.20 | ADD TO CART | |
| P10133062 | Burner Tray w/o Burners Robertshaw (Sea Level) | - | 1.000 | $ 1,522.34 | ADD TO CART | |
| P10122654 | Burner Spacer/Hold Down Bracket Kit | - | 1.000 | $ 381.10 | ADD TO CART | |
| P10133566 | Heat Exch. Assy. Cast Iron | - | 1.000 | $ 9,538.83 | ADD TO CART | |
| P10133606 | Heat Exch. Assy. Brass | - | 1.000 | $ 9,827.23 | ADD TO CART | |
| P10133726 | Heat Exch. Assy. Cast Iron w/Pump Header | - | 1.000 | $ 6,746.50 | ADD TO CART | |
| P10023374 | Heat Exch. Assy. Brass w/Pump Header | - | 1.000 | $ 11,203.31 | ADD TO CART | |
| P10131114 | Inlet/Outlet Header Brass | - | 1.000 | $ 2,089.87 | ADD TO CART | |
| P10133380 | Tube Bundle | - | 1.000 | $ 5,173.69 | ADD TO CART | |
| P10023432 | Heat Exchange Tube | - | 1.000 | $ 495.43 | ADD TO CART | |
| P10127870 | Baffle Kit | - | 1.000 | $ 396.55 | ADD TO CART | |
| P10173529 | J Box Nat. IID | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10173530 | J Box Pro. IID, Lockout | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10023240 | J Box Nat. IID | - | 1.000 | $ 919.79 | ADD TO CART | |
| P10023772 | J Box Nat. IID/TTD | - | 1.000 | $ 724.09 | ADD TO CART | |
| P10023244 | J Box Pro. IID, Lockout | - | 1.000 | $ 922.88 | ADD TO CART | |
| P10023776 | J Box Pro. IID/TTD Lockout | - | 1.000 | $ 722.03 | ADD TO CART | |
| P10031882 | Relay SPDT C2 (Not Shown) | - | 1.000 | $ 97.85 | ADD TO CART | |
| P10173532 | Relay DPDT IRI (Not Shown) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10119728 | Pilot Nat. C2 & IRI | - | 1.000 | $ 283.25 | ADD TO CART | |
| P10025762 | Ignition Control C2 (complete) | - | 1.000 | $ 5,858.64 | ADD TO CART | |
| P10023452 | Jacket Top | - | 1.000 | $ 504.70 | ADD TO CART | |
| P10022932 | Door Assy. | - | 1.000 | $ 1,372.99 | ADD TO CART | |
| P10022944 | Access Panel | - | 1.000 | $ 284.28 | ADD TO CART | |
| P10022942 | Access Panel w/Pump Header | - | 1.000 | $ 260.59 | ADD TO CART | |
| P10173543 | Control Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10023490 | Pump Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10023488 | J Box Sheetmetal | - | 1.000 | $ 326.51 | ADD TO CART | |
| P10023246 | J Box Sheetmetal C2 (not shown) | - | 1.000 | $ 292.52 | ADD TO CART | |
| P10173546 | Stackless Top (Outdoor) | - | 1.000 | $ 1,552.92 | ADD TO CART | |
| P10173711 | Draft Hood (Indoor) | - | 1.000 | $ 771.18 | ADD TO CART | |
| P10031770 | Lube/Cock Valve 1 in. [H1,H2,H3,W3,WH3,H6,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 2.000 | $ 200.31 | ADD TO CART | |
| P10119740 | Pressure Regulator Pro. 1/8 in. [H1,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 202.91 | ADD TO CART | |
| P10122784 | Pressure Regulator Nat. 1 in. [H1,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 334.76 | ADD TO CART | |
| P10122666 | Pressure Regulator Pro. 1 in. [H1,H5,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 557.23 | ADD TO CART | |
| P10027186 | Actuator, On/Off [H1,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 2.000 | $ 1,232.40 | ADD TO CART | |
| P10031786 | Gas Valve Body. 1 in. [H1,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 2.000 | $ 548.99 | ADD TO CART | |
| P10027194 | Gas Vent Valve 3/4 in. [H1,H2,H3,W3,WH3,H6,H4,W1,WH1,W2,WH2,N,NH,R,RH] | - | 1.000 | $ 0.00 | ADD TO CART |
