Parts for Raypak, Inc. P-R335A-EN-C:

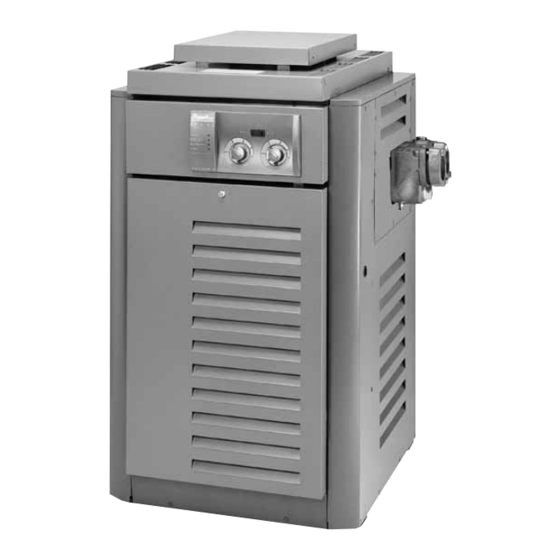

RP2100, Pool and Spa Heater Polymer Headers Atmospheric, Raypak, 335A, Electronic Pilot, Natural Gas, Copper Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
73 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10023862 | Burner Tray w/Burners (sea level) | - | 1.000 | $ 1,413.16 | ADD TO CART |
|
P10023908 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 132.87 | ADD TO CART |
|
P10003460 | Burner | - | 24.000 | $ 81.63 | ADD TO CART |
|
P10120180 | Burner Orifice Nat. #51 (Sea Level) | - | 24.000 | $ 21.63 | ADD TO CART |
|
P10023940 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 756.02 | ADD TO CART |
|
P10000032 | Thermostat Auto Reset 135 Deg Surf Mount | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10113814 | AGS 135° (Auto Gas Shut-Off) - Red Epoxy | - | 1.000 | $ 65.92 | ADD TO CART |
|
P10113816 | High Limit 140° - Black Epoxy | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10156455 | P. C. Board Control IID Units | - | 1.000 | $ 612.94 | ADD TO CART |
|
P10113710 | P. C. Board Weather Shield (Not Shown) | - | 1.000 | $ 57.68 | ADD TO CART |
|
P10113460 | Temperature Sensor IID Units | - | 1.000 | $ 122.57 | ADD TO CART |
|
P10119748 | Combination Valve - Nat. IID | - | 1.000 | $ 580.01 | ADD TO CART |
|
P10126954 | Inlet/Outlet Header Complete | - | 1.000 | $ 937.30 | ADD TO CART |
|
P10125118 | Inlet/Outlet Header (Includes 6-H) | - | 1.000 | $ 868.29 | ADD TO CART |
|
P10125120 | Return Header (Includes 6-H) | - | 1.000 | $ 247.20 | ADD TO CART |
|
P10023934 | Baffle (8) | - | 1.000 | $ 139.05 | ADD TO CART |
|
P10113462 | Bolt Kit | - | 1.000 | $ 133.90 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 39.14 | ADD TO CART |
|
P10113464 | O Ring Gasket (2) | - | 1.000 | $ 42.23 | ADD TO CART |
|
P10113466 | Sensor Adapter Digital Electronic | - | 1.000 | $ 56.65 | ADD TO CART |
|
P10113468 | Bypass Kit | - | 1.000 | $ 108.15 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 63.86 | ADD TO CART |
|
P10113472 | Bypass Dam / Shaft | - | 1.000 | $ 78.28 | ADD TO CART |
|
P10113474 | Bypass Spring (All Sizes Included) | - | 1.000 | $ 56.65 | ADD TO CART |
|
P10000028 | Unitherm Governor | - | 1.000 | $ 116.39 | ADD TO CART |
|
P10113476 | Unitherm Governor Plug | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10143677 | Inlet/Outlet Header Dam | - | 1.000 | $ 113.75 | ADD TO CART |
|
P10113478 | 2 in. PVC Connector & Nut (2) | - | 1.000 | $ 97.85 | ADD TO CART |
|
P10113480 | O Ring (2) | - | 1.000 | $ 18.54 | ADD TO CART |
|
P10113490 | Stainless Steel Baffle | - | 1.000 | $ 101.97 | ADD TO CART |
|
P10113324 | Ignition Control IID Nat. | - | 1.000 | $ 345.66 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 141.11 | ADD TO CART |
|
P10113500 | Rocker Switch | - | 1.000 | $ 13.87 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 92.70 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Adjustment in Service Manual | - | 1.000 | $ 88.58 | ADD TO CART |
|
P10113508 | Knobstop(1) | - | 1.000 | $ 9.24 | ADD TO CART |
|
P10000020 | Thermal Fuse (Atmospheric) | - | 1.000 | $ 52.53 | ADD TO CART |
|
P10113760 | PRV 125 PSI (Optional) | - | 1.000 | $ 121.74 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 533.54 | ADD TO CART |
|
P10113482 | Wire/Harness IID | - | 1.000 | $ 563.41 | ADD TO CART |
|
P10113484 | Control Panel IID (Includes Switch Decal) | - | 1.000 | $ 223.51 | ADD TO CART |
|
P10113714 | Switch/Decal-Membrane | - | 1.000 | $ 152.44 | ADD TO CART |
|
P10113680 | Pilot IID Atmospheric (includes nat & pro orifice) built before 06/01/2000 | - | 1.000 | $ 259.56 | ADD TO CART |
|
P10119718 | Pilot IID Atmospheric (includes nat & pro orifice) built after 06/01/2000 | - | 1.000 | $ 138.02 | ADD TO CART |
|
P10119754 | Pilot Orifice Nat. IID .020 | - | 1.000 | $ 52.53 | ADD TO CART |
|
P10031556 | Pilot Mounting Bracket IID Atmospheric | - | 1.000 | $ 36.12 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 10.20 | ADD TO CART |
|
P10113294 | Hi Tension Wire IID | - | 1.000 | $ 87.55 | ADD TO CART |
|
P10147563 | Hi Tension Wire IID with Pilot Electrode | - | 1.000 | $ 153.05 | ADD TO CART |
|
P10031562 | Pilot Shield | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10023960 | Refractory Common (Left & Right) (Includes 4-R) | - | 1.000 | $ 557.23 | ADD TO CART |
|
P10023966 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 647.87 | ADD TO CART |
|
P10122712 | Refractory Retainer Kit (Includes 4-R) | - | 1.000 | $ 183.34 | ADD TO CART |
|
P10119810 | Insulation Strips | - | 1.000 | $ 125.66 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 105.06 | ADD TO CART |
|
P10125122 | Access Panel Set (3 Pcs.) (Units with Capron Header) | - | 1.000 | $ 89.61 | ADD TO CART |
|
P10119798 | Poolstat Cover/Lock | - | 1.000 | $ 146.26 | ADD TO CART |
|
P10126974 | Stack Adapter | - | 1.000 | $ 180.25 | ADD TO CART |
| P10131580 | Burner Tray w/o Burner (sea level) | - | 1.000 | $ 807.52 | ADD TO CART | |
| P10023892 | Burner Tray w/Gas Valve Nat IID | - | 1.000 | $ 865.20 | ADD TO CART | |
| P10024204 | Heat Exchanger Assembly Complete | - | 1.000 | $ 3,995.37 | ADD TO CART | |
| P10131842 | Tube Bundle | - | 1.000 | $ 2,444.19 | ADD TO CART | |
| P10027252 | Refractory (All) | - | 1.000 | $ 1,145.36 | ADD TO CART | |
| P10023976 | Jacket Top (Louvered) | - | 1.000 | $ 586.07 | ADD TO CART | |
| P10023992 | Door Assy. | - | 1.000 | $ 323.42 | ADD TO CART | |
| P10119800 | Side Panel Cap | - | 1.000 | $ 120.51 | ADD TO CART | |
| P10023956 | Rear Panel Kit (2 Pcs.) | - | 1.000 | $ 327.54 | ADD TO CART | |
| P10023970 | High Limit Cover | - | 1.000 | $ 113.30 | ADD TO CART | |
| P10125132 | Base Shield (Not Shown) | - | 1.000 | $ 191.58 | ADD TO CART | |
| P10026080 | Weather Shield | - | 1.000 | $ 99.91 | ADD TO CART | |
| P10153883 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 351.35 | ADD TO CART | |
| P21038133 | Pagoda Top | - | 1.000 | $ 201.88 | ADD TO CART |
