Parts for Raypak, Inc. P-R265A-MP-X:

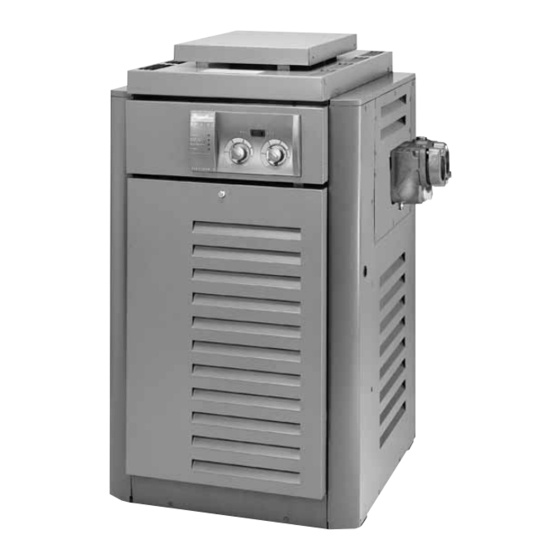

RP2100, Pool and Spa Heater Polymer Headers Atmospheric, Raypak, 265A, Millivolt Pilot, Propane, Cupro Nickel Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
70 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10023906 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 125.66 | ADD TO CART |
|
P10003460 | Burner | - | 19.000 | $ 81.63 | ADD TO CART |
|
P10031574 | Burner Orifice Pro. #57 (Sea Level) | - | 19.000 | $ 21.63 | ADD TO CART |
|
P10000032 | Thermostat Auto Reset 135 Deg Surf Mount | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10113814 | AGS 135° (Auto Gas Shut-Off) - Red Epoxy | - | 1.000 | $ 65.92 | ADD TO CART |
|
P10113816 | High Limit 140° - Black Epoxy | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10000004 | Thermostat Control MV Units Mechanical | - | 1.000 | $ 231.75 | ADD TO CART |
|
P10122678 | Combination Valve - Pro. MV | - | 1.000 | $ 502.91 | ADD TO CART |
|
P10126954 | Inlet/Outlet Header Complete | - | 1.000 | $ 937.30 | ADD TO CART |
|
P10125118 | Inlet/Outlet Header (Includes 6-H) | - | 1.000 | $ 868.29 | ADD TO CART |
|
P10125120 | Return Header (Includes 6-H) | - | 1.000 | $ 247.20 | ADD TO CART |
|
P10023932 | Baffle (8) | - | 1.000 | $ 241.02 | ADD TO CART |
|
P10113462 | Bolt Kit | - | 1.000 | $ 133.90 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 39.14 | ADD TO CART |
|
P10113464 | O Ring Gasket (2) | - | 1.000 | $ 42.23 | ADD TO CART |
|
P10113488 | Sensor Well Millivolt | - | 1.000 | $ 77.25 | ADD TO CART |
|
P10113468 | Bypass Kit | - | 1.000 | $ 108.15 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 63.86 | ADD TO CART |
|
P10113472 | Bypass Dam / Shaft | - | 1.000 | $ 78.28 | ADD TO CART |
|
P10113474 | Bypass Spring (All Sizes Included) | - | 1.000 | $ 56.65 | ADD TO CART |
|
P10000028 | Unitherm Governor | - | 1.000 | $ 116.39 | ADD TO CART |
|
P10113476 | Unitherm Governor Plug | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10143677 | Inlet/Outlet Header Dam | - | 1.000 | $ 113.75 | ADD TO CART |
|
P10113478 | 2 in. PVC Connector & Nut (2) | - | 1.000 | $ 97.85 | ADD TO CART |
|
P10113480 | O Ring (2) | - | 1.000 | $ 18.54 | ADD TO CART |
|
P10113490 | Stainless Steel Baffle | - | 1.000 | $ 101.97 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 141.11 | ADD TO CART |
|
P10113500 | Rocker Switch | - | 1.000 | $ 13.87 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 92.70 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Adjustment in Service Manual | - | 1.000 | $ 88.58 | ADD TO CART |
|
P10113508 | Knobstop(1) | - | 1.000 | $ 9.24 | ADD TO CART |
|
P10000020 | Thermal Fuse (Atmospheric) | - | 1.000 | $ 52.53 | ADD TO CART |
|
P10113760 | PRV 125 PSI (Optional) | - | 1.000 | $ 121.74 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 533.54 | ADD TO CART |
|
P10113362 | Wire/Harness Millivolt | - | 1.000 | $ 300.76 | ADD TO CART |
|
P10000010 | Control Panel MV | - | 1.000 | $ 284.28 | ADD TO CART |
|
P10113798 | Pilot Pro. MV | - | 1.000 | $ 183.34 | ADD TO CART |
|
P10119752 | Pilot Orifice Pro. MV | - | 1.000 | $ 124.63 | ADD TO CART |
|
P10000118 | Pilot Generator MV | - | 1.000 | $ 135.03 | ADD TO CART |
|
P10120178 | Pilot MTG Bracket MV | - | 1.000 | $ 12.36 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 10.20 | ADD TO CART |
|
P10031562 | Pilot Shield | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10023960 | Refractory Common (Left & Right) (Includes 4-R) | - | 1.000 | $ 557.23 | ADD TO CART |
|
P10119810 | Insulation Strips | - | 1.000 | $ 125.66 | ADD TO CART |
|
P10023974 | Jacket Top (Louvered) | - | 1.000 | $ 527.36 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 105.06 | ADD TO CART |
|
P10125122 | Access Panel Set (3 Pcs.) (Units with Capron Header) | - | 1.000 | $ 89.61 | ADD TO CART |
|
P10119798 | Poolstat Cover/Lock | - | 1.000 | $ 146.26 | ADD TO CART |
| P10023860 | Burner Tray w/Burners (sea level) | - | 1.000 | $ 1,145.36 | ADD TO CART | |
| P10023868 | Burner Tray w/o Burner (sea level) | - | 1.000 | $ 752.93 | ADD TO CART | |
| P10023882 | Burner Tray w/Gas Valve Pro Millivolt | - | 1.000 | $ 1,207.16 | ADD TO CART | |
| P10130076 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 631.39 | ADD TO CART | |
| P10131468 | Heat Exchanger Assembly Complete | - | 1.000 | $ 2,981.85 | ADD TO CART | |
| P10131748 | Tube Bundle Cupro Nickel (Upgrade) | - | 1.000 | $ 2,693.45 | ADD TO CART | |
| P10113770 | Lighter Tube (MV Units Only) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10023964 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 489.25 | ADD TO CART | |
| P10027250 | Refractory (All) | - | 1.000 | $ 1,027.94 | ADD TO CART | |
| P10122710 | Refractory Retainer Kit (Includes 4-R) | - | 1.000 | $ 426.42 | ADD TO CART | |
| P10023990 | Door Assy. | - | 1.000 | $ 233.81 | ADD TO CART | |
| P10119800 | Side Panel Cap | - | 1.000 | $ 120.51 | ADD TO CART | |
| P10023954 | Rear Panel Kit (2 Pcs.) | - | 1.000 | $ 299.73 | ADD TO CART | |
| P21037993 | Sub-Base for Combustible Flooring | - | 1.000 | $ 269.86 | ADD TO CART | |
| P10023970 | High Limit Cover | - | 1.000 | $ 113.30 | ADD TO CART | |
| P10122786 | Base Shield (Not Shown) | - | 1.000 | $ 93.73 | ADD TO CART | |
| P10026078 | Weather Shield | - | 1.000 | $ 100.94 | ADD TO CART | |
| P10153750 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 338.85 | ADD TO CART | |
| P10128860 | Stack Adapter | - | 1.000 | $ 282.22 | ADD TO CART | |
| P10127898 | Pagoda Top | - | 1.000 | $ 231.75 | ADD TO CART | |
|
P10113370 | Pro. to Nat. MV Pilot | - | 1.000 | $ 943.48 | ADD TO CART |
