Parts for Raypak, Inc. P-2004:

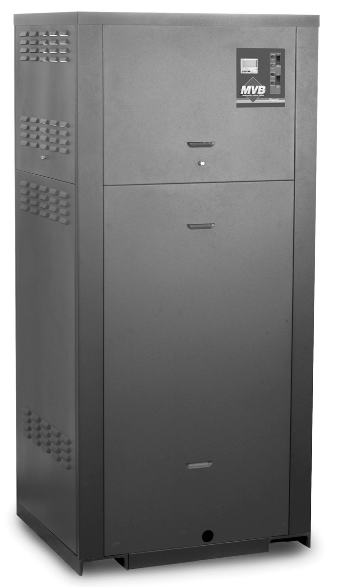

MVB, Pool Heater, 2004

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


147 Parts

Component Description Serial Qty Price
Part Image P10127906 Adapter Assembly - 1.000 $ 535.60 ADD TO CART
Part Image P10119972 Adapter Gaskets and Heat Shield - 1.000 $ 246.17 ADD TO CART
Part Image P10119974 Flame Sensor Probe - 1.000 $ 86.52 ADD TO CART
Part Image P10113620 Igniter - 1.000 $ 124.63 ADD TO CART
Part Image P10119804 Auto Reset Adjustable High Limit 180°F Max - 1.000 $ 657.14 ADD TO CART
Part Image P10026108 Manual Reset Adjustable High Limit 180°F Max - 1.000 $ 584.01 ADD TO CART
Part Image P10031834 Manual Reset Fixed High Limit 175°F - 1.000 $ 84.46 ADD TO CART
Part Image P10122820 Controller On/Off (Tekmar) P, WHP - 1.000 $ 2,586.33 ADD TO CART
Part Image P10122804 Sensor Outdoor Air B-32 - 1.000 $ 143.17 ADD TO CART
Part Image P10113752 Sensor Water B-21 thru B-26 - 1.000 $ 95.79 ADD TO CART
Part Image P10119980 Sensor Water screw-In (Tekmar) - 1.000 $ 133.90 ADD TO CART
Part Image P10122740 Flow Switch - 1.000 $ 435.69 ADD TO CART
Part Image P10113762 Printed Circuit Board UDB (Diagnostic) used w/LCD Display Units manufactured from 12/2008 - 1.000 $ 571.65 ADD TO CART
Part Image P10027546 Diagnostic Display - 1.000 $ 158.62 ADD TO CART
Part Image P10000096 Printed Circuit Board UGB Blower - 1.000 $ 738.51 ADD TO CART
Part Image P10113550 Air Vent Pressure Switch - 1.000 $ 242.05 ADD TO CART
Part Image P10119978 Air Intake Pressure Switch - 1.000 $ 423.33 ADD TO CART
Part Image P10026978 Transformer 120/24 - 1.000 $ 306.94 ADD TO CART
Part Image P10119884 Pump Relay 24 VAC - 1.000 $ 92.70 ADD TO CART
Part Image P10119868 Pump Contactor 120 VAC (Over 3/4 HP Pumps) – Blower Contactor 120 VAC for 2004 only - 1.000 $ 150.38 ADD TO CART
Part Image P10113704 Relay 24 VAC (Alarm) / Relay SPDT 24 VAC (Alarm / Dry Contacts) - 1.000 $ 77.25 ADD TO CART
Part Image P10113706 Ignition Control HSI Single Try - 1.000 $ 815.76 ADD TO CART
Part Image P10113592 Ignition Control HSI Three Try - 1.000 $ 677.74 ADD TO CART
Part Image P10113500 Rocker Switch (Burner / Pump) - 1.000 $ 51.50 ADD TO CART
Part Image P10113602 On / Off Shut Down Switch - 1.000 $ 124.63 ADD TO CART
Part Image P10131918 Blower Combustion Air - 1.000 $ 7,869.20 ADD TO CART
Part Image P10119984 Blower Gasket - 1.000 $ 158.62 ADD TO CART
Part Image P10027334 Valve Coil 24V Nat (from 504 to 1504) – Pro All Sizes - 1.000 $ 2,660.49 ADD TO CART
Part Image P10125146 Inlet Gas Filter Natural Gas - 1.000 $ 133.90 ADD TO CART
Part Image P10027162 Swirler - 1.000 $ 880.65 ADD TO CART
Part Image P10027408 o Rings (Includes Gas Valve and Adapter o Rings) - 1.000 $ 178.19 ADD TO CART
Part Image P10113758 Switch Low Gas Pressure (Optional) - 1.000 $ 448.05 ADD TO CART
Part Image P10026984 Switch High Gas Pressure (Optional) - 1.000 $ 448.05 ADD TO CART
Part Image P10131994 Return Header Bronze - 1.000 $ 5,419.86 ADD TO CART
Part Image P10131474 Return Header Cast Iron - 1.000 $ 5,085.11 ADD TO CART
Part Image P10025998 Stud Bolt - 1.000 $ 155.53 ADD TO CART
Part Image P10113584 Header Gasket (20 PCS) - 1.000 $ 104.03 ADD TO CART
Part Image P10113452 Drain Valve - 1.000 $ 124.63 ADD TO CART
Part Image P10147555 Automatic Air Vent Valve (Not Shown) (For units built prior to 2/15/18) - 1.000 $ 245.14 ADD TO CART
Part Image P10000058 Flow Switch Paddle (Taco) - 1.000 $ 192.61 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1.000 $ 85.49 ADD TO CART
Part Image P10113568 T & P Gauge 0-90 PSI - 1.000 $ 82.40 ADD TO CART
Part Image P10113618 T & P Gauge 0-200 PSI - 1.000 $ 118.45 ADD TO CART
Part Image P10122760 PRV 60 PSI - 1.000 $ 380.07 ADD TO CART
Part Image P10113628 PRV 125 PSI - 1.000 $ 180.25 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1.000 $ 404.01 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ (Not Shown) - 1.000 $ 203.94 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ (Not Shown) - 1.000 $ 143.17 ADD TO CART
Part Image P10026986 Flue Collector Vertical Seal Gasket - 1.000 $ 375.95 ADD TO CART
Part Image P10024338 Insulation Blanket Return Header - 1.000 $ 165.83 ADD TO CART
Part Image P10120022 Membrane Switch - 1.000 $ 138.02 ADD TO CART
Part Image P10026954 LCD Display Wire Harness - 1.000 $ 75.19 ADD TO CART
Part Image P10113582 Remote Sensor (LWCO) - 1.000 $ 148.32 ADD TO CART
Part Image P10113548 Control PC Board (LWCO) - 1.000 $ 512.81 ADD TO CART
Part Image P10113398 Test / Reset Switch (LWCO) – Silencer / Reset Switch (Alarm) - 1.000 $ 138.02 ADD TO CART
Part Image P10113698 Time Delay Contactor 5 Second (Alarm / Dry contacts) - 1.000 $ 180.80 ADD TO CART
Part Image P10119970 Relay DPDT 24 VAC (Alarm) - 1.000 $ 97.01 ADD TO CART
Part Image P10120070 Pump Flange Gasket (2 Bolt) - 1.000 $ 216.96 ADD TO CART
Part Image P10024366 Return Header Cover - 1.000 $ 145.23 ADD TO CART
Part Image P10027136 Blower/Pump Switch Mounting Panel - 1.000 $ 110.21 ADD TO CART
P10026976 Burner - 1.000 $ 5,241.67 ADD TO CART
P21038756 Printed Circuit Board UDB (Diagnostic) w/LED Lights Units manufactured prior to 12/2008 - 1.000 $ 608.73 ADD TO CART
P10113674 Terminal Block Ground Lug - 1.000 $ 167.89 ADD TO CART
P10026980 Terminal Block 2 Space - 1.000 $ 29.87 ADD TO CART
P10000098 Indicator Lamp - 1.000 $ 126.69 ADD TO CART
P10027122 Plenum Assembly - 1.000 $ 384.19 ADD TO CART
P10027142 Air Shutter - 1.000 $ 117.42 ADD TO CART
P10027124 Screen Intake Vent Cap - 1.000 $ 126.69 ADD TO CART
P10130594 Valve Gas Modulating 24V (Dungs) Natural Gas - 1.000 $ 6,362.31 ADD TO CART
P10027336 Valve Coil 24V Nat - 1.000 $ 3,411.36 ADD TO CART
P10027198 Adapter Gas Valve 1" Inlet - 1.000 $ 324.45 ADD TO CART
P10027202 Adapter Gas Valve 2" Inlet - 1.000 $ 335.78 ADD TO CART
P10027320 Adapter Gas Valve Outlet - 1.000 $ 259.56 ADD TO CART
P10027322 Adapter Swirl Plate - 1.000 $ 360.50 ADD TO CART
P10119998 Nozzle Natural (1104 Model) and Propane Gas (2004 Model) - 1.000 $ 261.62 ADD TO CART
P10027328 Nozzle Natural Gas - 1.000 $ 524.27 ADD TO CART
P10026982 Valve Gas Ball (WOG) - 1.000 $ 309.00 ADD TO CART
P10027186 Motorized Safety Shut Off Actuator (Optional) - 1.000 $ 2,788.21 ADD TO CART
P10027192 Solenoid Safety Shut Off Valve Nat (Optional) - 1.000 $ 3,136.35 ADD TO CART
P10027194 Vent Valve Gas Nat (Optional 504 and 704) Propane (All Sizes) Not Shown - 1.000 $ 1,849.88 ADD TO CART
P10027196 Vent Valve Gas Nat (Optional) Not Shown - 1.000 $ 5,455.91 ADD TO CART
P10134898 Heat Transfer Cupro-nickel Bronze (Includes 15-S) - 1.000 $ 34,385.52 ADD TO CART
P10135034 Heat Transfer Cupro-nickel Cast Iron (Includes 15-S) - 1.000 $ 31,185.31 ADD TO CART
P10135170 Heat Transfer Copper Bronze (Includes 15-S) - 1.000 $ 29,738.16 ADD TO CART
P10134884 Heat Transfer Copper Cast Iron (Includes 15-S) - 1.000 $ 27,289.85 ADD TO CART
P10025996 Inlet/Outlet Header Bronze - 1.000 $ 8,447.03 ADD TO CART
P10027364 Inlet/Outlet Header Cast Iron - 1.000 $ 4,638.09 ADD TO CART
P10425422 Manual Air Vent Bushing - 1.000 $ 73.13 ADD TO CART
P10416362 Manual Air Vent Valve - 1.000 $ 168.92 ADD TO CART
P21043365 Insulation/Sight Glass & Header Cover - 1.000 $ 126.69 ADD TO CART
P10028872 T & P Gauge 0-230 PSI - 1.000 $ 124.63 ADD TO CART
P10126966 PRV 30 PSI - 1.000 $ 1,325.61 ADD TO CART
P10122758 PRV 45 PSI - 1.000 $ 570.62 ADD TO CART
P10122762 PRV 75 PSI - 1.000 $ 740.57 ADD TO CART
P10122822 Flue Exhaust Adapter Gasket - 1.000 $ 409.94 ADD TO CART
P10027166 Inline Intake Air Filter - 1.000 $ 153.47 ADD TO CART
P10027424 Inline Intake Air Filter Premium - 1.000 $ 100.94 ADD TO CART
P10113844 Touch-Up Paint Green - 1.000 $ 161.14 ADD TO CART
P10113844 P10113846 Touch-Up Paint Dark Gray - 1.000 $ 61.95 ADD TO CART
P10031952 Touch-Up Paint Cool Dark Gray - 1.000 $ 70.04 ADD TO CART
P10027418 Wire Harness Units manufactured without 30-S Wiring Panel - 1.000 $ 1,540.88 ADD TO CART
P10027426 Wire Harness Units manufactured with 30-S Wiring Panel - 1.000 $ 843.57 ADD TO CART
P10027542 Wire Harness Units manufactured with 16-C LCD Display - 1.000 $ 1,254.54 ADD TO CART
P10027570 Plastic Handle - 1.000 $ 267.80 ADD TO CART
P10113400 Alarm Bell 3" - 1.000 $ 600.49 ADD TO CART
P10024124 Alarm Bell 4" - 1.000 $ 1,139.18 ADD TO CART
P10133382 Pump - Circulating - Bronze (Soft Water – 2004, Medium Water – 1504, Hard Water - 1104, 1504) - 1.000 $ 6,947.35 ADD TO CART
P10133742 Pump - Circulating - Bronze (Medium Water and Hard Water) - 1.000 $ 7,924.82 ADD TO CART
P10024484 Pump - Circulating - CI (Soft Water – 2004, Medium Water – 1504, Hard Water – 1104, 1504) - 1.000 $ 4,061.29 ADD TO CART
P10133724 Pump - Circulating - CI (Medium Water and Hard Water) - 1.000 $ 6,966.92 ADD TO CART
P10028642 Pump Flange Gasket (4 Bolt) - 1.000 $ 635.51 ADD TO CART
P10027096 Jacket Top - 1.000 $ 136.99 ADD TO CART
P10027288 Flue Collector Front (No Opening) (Includes 6-M) - 1.000 $ 1,443.03 ADD TO CART
P10027298 Flue Collector Rear (Opening) (Includes 6-M, 9-M, 17-S) - 1.000 $ 2,475.09 ADD TO CART
P10026004 Heat Transfer Supports - 1.000 $ 301.79 ADD TO CART
P10027100 Upper Cabinet Supports - 1.000 $ 145.23 ADD TO CART
P10027042 Vertical Cabinet Supports - 1.000 $ 290.46 ADD TO CART
P10027048 Jacket Upper Front Panel - 1.000 $ 79.31 ADD TO CART
P10027578 Jacket Upper Front Panel w/LCD Display - 1.000 $ 70.04 ADD TO CART
P10027060 Jacket Lower Front Panel - 1.000 $ 467.62 ADD TO CART
P10027066 Jacket Upper Side Panel - 1.000 $ 194.67 ADD TO CART
P10027078 Jacket Lower Side Panel - 1.000 $ 149.35 ADD TO CART
P10027150 Jacket Upper Rear Panel - 1.000 $ 112.27 ADD TO CART
P10027308 Jacket Lower Rear Panel - 1.000 $ 146.26 ADD TO CART
P10026048 Base Assembly - 1.000 $ 1,404.92 ADD TO CART
P10024446 Leg Bracket ( 4 pcs per boiler) - 1.000 $ 462.47 ADD TO CART
P10119840 Base Reflector Panel - 1.000 $ 114.33 ADD TO CART
P10027312 Flue Exhaust Adapter Assembly - 1.000 $ 646.84 ADD TO CART
P10027128 Control Box Assy - 1.000 $ 167.89 ADD TO CART
P10027130 Control Box Cover Panel - 1.000 $ 46.35 ADD TO CART
P10027132 Control Box Cover Panel w/Lights - 1.000 $ 158.62 ADD TO CART
P10027572 Control Box Cover Panel w/LCD Display - 1.000 $ 111.24 ADD TO CART
P10027574 Control Box Cover Panel - 1.000 $ 35.02 ADD TO CART
P10027134 Power Switch Mounting Panel - 1.000 $ 45.32 ADD TO CART
P10027138 Controller Mounting Panel - 1.000 $ 50.47 ADD TO CART
P10027152 Intake Air Adapter - 1.000 $ 69.01 ADD TO CART
P10027154 Intake Air Collar (Outside) - 1.000 $ 140.08 ADD TO CART
P10027158 Access Panel - 1.000 $ 43.26 ADD TO CART
P10027182 Access Panel Wiring Box - 1.000 $ 49.44 ADD TO CART
P10027428 24V Wiring Panel Units manufactured without 16-C LCD Display - 1.000 $ 76.22 ADD TO CART
P10027520 24V Wiring Panel Units manufactured with 16-C LCD Display - 1.000 $ 61.80 ADD TO CART
P10024324 Heat Shield Baffle - 1.000 $ 273.98 ADD TO CART
P10173891 Outdoor Stack - 1.000 $ 2,759.37 ADD TO CART
P10173837 Vent Cap Vertical for Indoor Units - 1.000 $ 913.80 ADD TO CART
P10173841 Vent Cap Horizontal Thru-the-Wall for Indoor Units - 1.000 $ 905.87 ADD TO CART
P10173843 Inline Air filter (Complete) - 1.000 $ 0.00 ADD TO CART
P10173893 Inline Air filter Premium (Complete) - 1.000 $ 237.69 ADD TO CART
