Parts for Raypak, Inc. P-1532C:

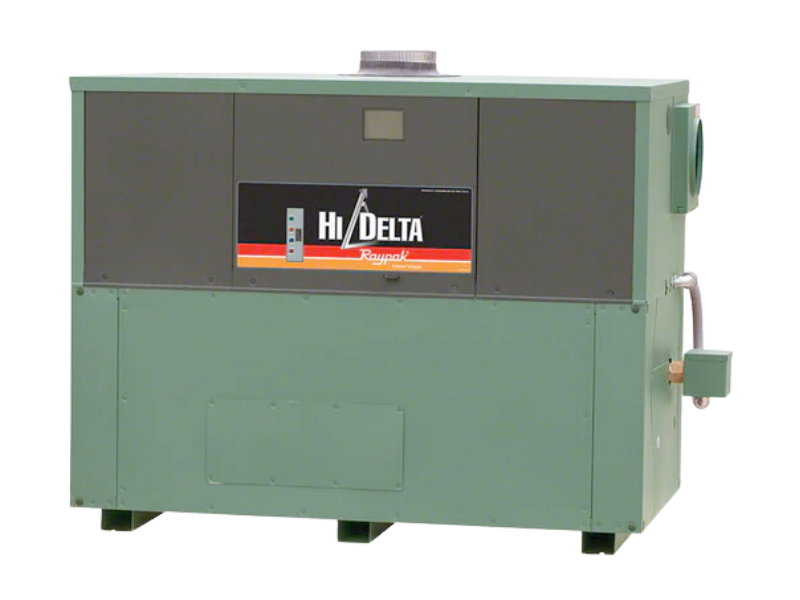

Hi-Delta, Pool Heater, 1532C
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
189 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10119854 | Burner | - | 17.000 | $ 132.43 | ADD TO CART |
|
P10119848 | Seal Gasket | - | 1.000 | $ 8.24 | ADD TO CART |
|
P10026108 | Manual-Reset Adjustable High-Limit 180°F Max | - | 1.000 | $ 479.98 | ADD TO CART |
|
P10119804 | Auto-Reset Adjustable High-Limit 180°F Max | - | 1.000 | $ 553.42 | ADD TO CART |
|
P10028628 | Fuse 5 Amp (Fast Acting) | - | 1.000 | $ 29.87 | ADD TO CART |
|
P10120094 | PC Board VERSA IC | - | 1.000 | $ 988.80 | ADD TO CART |
|
P10120040 | Inlet Sensor (2-Wire) | - | 1.000 | $ 77.25 | ADD TO CART |
|
P10028572 | Outlet/Limit Sensor (4-Wire) | - | 1.000 | $ 127.14 | ADD TO CART |
|
P10113752 | System Water Sensor 10K | - | 1.000 | $ 90.03 | ADD TO CART |
|
P10119822 | Indirect Tank Aquastat Control B-65 | - | 1.000 | $ 298.70 | ADD TO CART |
|
P10122804 | Sensor Outdoor Air B-32 | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 357.41 | ADD TO CART |
|
P10000058 | Flow Switch Paddle | - | 1.000 | $ 157.59 | ADD TO CART |
|
P10113550 | Switch Air Pressure (Blocked Vent) | - | 1.000 | $ 197.76 | ADD TO CART |
|
P10113660 | Switch Air Pressure Differential (Blower) | - | 1.000 | $ 116.39 | ADD TO CART |
|
P10120096 | LCD Display PC Board | - | 1.000 | $ 381.10 | ADD TO CART |
|
P10130234 | Blower Combustion Air (Left-Hand) | - | 1.000 | $ 788.78 | ADD TO CART |
|
P10130236 | Blower Combustion Air (Right-Hand) | - | 1.000 | $ 782.80 | ADD TO CART |
|
P10026162 | Air Shutter | - | 1.000 | $ 58.71 | ADD TO CART |
|
P10024534 | Hose Duct 6" (Truseal) | - | 1.000 | $ 92.95 | ADD TO CART |
|
P10119894 | Filter Media | - | 1.000 | $ 51.50 | ADD TO CART |
|
P10113622 | Valve Gas Manual A 3/4" | - | 1.000 | $ 61.80 | ADD TO CART |
|
P10119832 | Valve Gas Manual A 1" (Low Gas Press.) | - | 1.000 | $ 146.26 | ADD TO CART |
|
P10113624 | Bleedle Valve 1/4' | - | 1.000 | $ 32.96 | ADD TO CART |
|
P10113626 | Bleedle Valve 1/8" | - | 1.000 | $ 31.93 | ADD TO CART |
|
P10122754 | Natural Gas Valve ¾” Honeywell 601605 | - | 1.000 | $ 696.41 | ADD TO CART |
|
P10119842 | Natural Gas Valve ¾” Robertshaw 601561 | - | 1.000 | $ 469.68 | ADD TO CART |
|
P10122750 | Propane Gas Valve ¾” Honeywell 601563 | - | 1.000 | $ 467.62 | ADD TO CART |
|
P10122756 | Propane Gas Valve ¾” RobertShaw 601604 | - | 1.000 | $ 423.33 | ADD TO CART |
|
P10113560 | Switch Low Gas Pressure w/o Bracket | - | 1.000 | $ 334.07 | ADD TO CART |
|
P10119830 | Switch High Gas Pressure w/o Bracket (Optional) | - | 1.000 | $ 297.01 | ADD TO CART |
|
P10130242 | Return Header Cast Iron | - | 1.000 | $ 627.27 | ADD TO CART |
|
P10131912 | Return Pump Header Cast Iron | - | 1.000 | $ 1,621.22 | ADD TO CART |
|
P10134068 | Tube Bundle | - | 1.000 | $ 10,596.64 | ADD TO CART |
|
P10122766 | Stud Bolt Kit | - | 1.000 | $ 121.54 | ADD TO CART |
|
P10119858 | Header Gasket | - | 1.000 | $ 123.60 | ADD TO CART |
|
P10113570 | Sensor Well | - | 1.000 | $ 48.41 | ADD TO CART |
|
P10031488 | Well Retaining Clip | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10125128 | Transformer 100 VA | - | 1.000 | $ 251.08 | ADD TO CART |
|
P10113602 | Automatic Shut Down Breaker Switch 30 AMP | - | 1.000 | $ 103.00 | ADD TO CART |
|
P10113500 | On/Off Switch Rocker | - | 1.000 | $ 41.20 | ADD TO CART |
|
P10119868 | Pump Contactor DPST 120V | - | 1.000 | $ 127.72 | ADD TO CART |
|
P10113704 | Interlock Relay 24V SPDT | - | 1.000 | $ 63.86 | ADD TO CART |
|
P10122760 | PRV 60 PSI | - | 1.000 | $ 302.82 | ADD TO CART |
|
P10119838 | PRV 125 PSI | - | 1.000 | $ 136.99 | ADD TO CART |
|
P10113580 | PRV 150 PSI | - | 1.000 | $ 139.05 | ADD TO CART |
|
P10125160 | Deliming Kit | - | 1.000 | $ 620.06 | ADD TO CART |
|
P10113568 | P Gauge 0-90 PSI | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10113618 | T & P Gauge 0-200 PSI | - | 1.000 | $ 96.82 | ADD TO CART |
|
P10119916 | RTV Sealant 2.8 OZ | - | 1.000 | $ 167.89 | ADD TO CART |
|
P10113424 | RTV Sealant 10 OZ | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10031982 | Sealant Tape (gray) Specify Length (Not Shown) | - | 1.000 | $ 6.18 | ADD TO CART |
|
P10113666 | Fiberfrax Insulation 1" Wide | - | 1.000 | $ 88.58 | ADD TO CART |
|
P10119934 | Intake Air Seal Gaskets (Truseal) | - | 1.000 | $ 75.19 | ADD TO CART |
|
P10113512 | Window Combustion Chamber | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10000026 | Flame Sensor | - | 1.000 | $ 67.24 | ADD TO CART |
|
P10113620 | Igniter | - | 1.000 | $ 101.97 | ADD TO CART |
|
P10025604 | Sight Window Plug | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10113582 | Remote Sensor (LWCO) | - | 1.000 | $ 121.54 | ADD TO CART |
|
P10113548 | Control PC Board (LWCO) | - | 1.000 | $ 432.60 | ADD TO CART |
|
P10113398 | Test/Reset Switch (LWCO) | - | 1.000 | $ 114.33 | ADD TO CART |
|
P10120070 | Pump Flange Gasket Taco 1600 Series Gasket Round (2-Bolt) | - | 1.000 | $ 175.21 | ADD TO CART |
|
P10026510 | Refractory Blanket | - | 1.000 | $ 219.39 | ADD TO CART |
|
P10026620 | Left & Right Heat Exchanger Support | - | 1.000 | $ 373.89 | ADD TO CART |
| P10133692 | Burner Assy w/Burners | - | 1.000 | $ 4,075.71 | ADD TO CART | |
| P10133304 | Burner Mounting Assy | - | 1.000 | $ 629.33 | ADD TO CART | |
| P10026150 | Manifold Upper | - | 1.000 | $ 224.54 | ADD TO CART | |
| P10025894 | Manifold Lower | - | 1.000 | $ 196.73 | ADD TO CART | |
| P21149430 | Burner Orifice (All Elevations) Natural Gas # 28 (Low Gas Pressure) | - | 17.000 | $ 0.00 | ADD TO CART | |
| P21149431 | Burner Orifice (All Elevations) Natural Gas # 33 | - | 17.000 | $ 0.00 | ADD TO CART | |
| P21149432 | Burner Orifice (All Elevations) Propane Gas 52 | - | 17.000 | $ 0.00 | ADD TO CART | |
| P10030334 | PIM (Platform Ignition Module) Multi-Try | - | 1.000 | $ 997.04 | ADD TO CART | |
| P10030336 | PIM (Platform Ignition Module) Single-Try CSD-1 | - | 1.000 | $ 743.66 | ADD TO CART | |
| P10030944 | Gateway BACnet Interface Module B-85 | - | 1.000 | $ 2,252.61 | ADD TO CART | |
| P10030946 | Gateway LonWorks Interface Module B-86 | - | 1.000 | $ 2,252.61 | ADD TO CART | |
| P21149427 | Rubber Tube 1/4" I.D. 4 FT (Not Shown) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21149428 | Rubber Tube 1/4" I.D. 8 FT (Not Shown) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10026288 | Intake Blower Flange 6" (Truseal) | - | 1.000 | $ 86.52 | ADD TO CART | |
| P10026968 | Gas Valve Nat 1" (G-20 Low Gas Pressure) Robertshaw 601784 | - | 1.000 | $ 513.97 | ADD TO CART | |
| P10027196 | Vent Valve (G-2 & M15 Vent Valve Option) | - | 1.000 | $ 1,452.30 | ADD TO CART | |
| P10027192 | Solenoid Safety Shut Off Valve (G-2 Vent Valve Option) | - | 1.000 | $ 1,516.16 | ADD TO CART | |
| P10027186 | Motorized Safety Shut Off Actuator M-1(Optional) | - | 1.000 | $ 2,386.51 | ADD TO CART | |
| P10128862 | Gas Valve Body 11(Optional) | - | 1.000 | $ 956.87 | ADD TO CART | |
| P10030816 | Heat Exch Cast Iron | - | 1.000 | $ 11,409.31 | ADD TO CART | |
| P10030828 | Heat Exch Brass | - | 1.000 | $ 12,329.10 | ADD TO CART | |
| P10030840 | Heat Exch Cast Iron w/Pump Hdr | - | 1.000 | $ 12,175.63 | ADD TO CART | |
| P10030846 | Heat Exch Brass w/Pump Hdr | - | 1.000 | $ 13,691.79 | ADD TO CART | |
| P10030852 | Heat Exch Cast Iron Cupronickel | - | 1.000 | $ 14,332.45 | ADD TO CART | |
| P10030546 | Heat Exch Cast Iron Cupronickel with Steel Rod Baffles | - | 1.000 | $ 14,567.29 | ADD TO CART | |
| P10030864 | Heat Exch Brass Cupronickel | - | 1.000 | $ 15,268.72 | ADD TO CART | |
| P10030476 | Heat Exch Brass Cupronickel with Steel Rod Baffles | - | 1.000 | $ 15,501.50 | ADD TO CART | |
| P10030876 | Heat Exch Cast Iron w/Pump Hdr Cupronickel | - | 1.000 | $ 15,107.01 | ADD TO CART | |
| P10030570 | Heat Exch Cast Iron w/Pump Hdr Cupronickel & Steel Rods Baffles * | - | 1.000 | $ 15,340.82 | ADD TO CART | |
| P10030882 | Heat Exch Brass w/Pump Hdr Cupronickel | - | 1.000 | $ 16,664.37 | ADD TO CART | |
| P10030500 | Heat Exch Brass w/Pump Hdr Cupronickel & Steel Rods Baffles * | - | 1.000 | $ 16,899.21 | ADD TO CART | |
| P10030884 | Inlet/Outlet Header Cast Iron | - | 1.000 | $ 590.19 | ADD TO CART | |
| P10030886 | Inlet/Outlet Header Brass | - | 1.000 | $ 1,272.05 | ADD TO CART | |
| P10130460 | Return Header Brass | - | 1.000 | $ 1,120.64 | ADD TO CART | |
| P10132226 | Return Pump Header Brass | - | 1.000 | $ 2,580.15 | ADD TO CART | |
| P10134058 | Tube Bundle Cupronickel | - | 1.000 | $ 10,912.85 | ADD TO CART | |
| P10030518 | Tube Bundle Cupronickel with Steel Rod Baffles | - | 1.000 | $ 11,143.57 | ADD TO CART | |
| P10024976 | Heat Exchange Tube | - | 1.000 | $ 1,071.20 | ADD TO CART | |
| P10024988 | Heat Exchange Tube Cupronickel | - | 1.000 | $ 1,424.49 | ADD TO CART | |
| P10122768 | Stud Bolt Kit w/Pump Header | - | 1.000 | $ 231.75 | ADD TO CART | |
| P10025180 | Baffle Kit "WH" and "P" units only | - | 1.000 | $ 386.25 | ADD TO CART | |
| P10119992 | Pump Dry Contact Relay 120V | - | 1.000 | $ 47.38 | ADD TO CART | |
| P10029464 | PC Board Adapter Status Lights Wiring | - | 1.000 | $ 101.97 | ADD TO CART | |
| P10000098 | Indicator Lamp | - | 1.000 | $ 60.77 | ADD TO CART | |
| P10113674 | Terminal Block W Ground Lug | - | 1.000 | $ 39.14 | ADD TO CART | |
| P10126966 | PRV 30 PSI | - | 1.000 | $ 386.25 | ADD TO CART | |
| P10122758 | PRV 45 PSI | - | 1.000 | $ 220.42 | ADD TO CART | |
| P10122762 | PRV 75 PSI | - | 1.000 | $ 251.32 | ADD TO CART | |
| P10028872 | T & P Gauge 0-230 PSI | - | 1.000 | $ 100.94 | ADD TO CART | |
| P10119926 | Flue Exhaust Tee Seal Gasket | - | 1.000 | $ 115.36 | ADD TO CART | |
| P10026182 | Flue Exhaust Adapter Seal Gasket | - | 1.000 | $ 65.92 | ADD TO CART | |
| P10113844 | Touch-up Paint Green | - | 1.000 | $ 56.65 | ADD TO CART | |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P10026830 | Gas Manifold Grommet 3/4" NPT | - | 1.000 | $ 37.08 | ADD TO CART | |
| P10026832 | Gas Manifold Grommet 2" NPT | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10028578 | Switch/Decal Membrane | - | 1.000 | $ 66.95 | ADD TO CART | |
| P10113400 | Alarm Bell 3' | - | 1.000 | $ 421.27 | ADD TO CART | |
| P10024124 | Alarm Bell 4" | - | 1.000 | $ 787.95 | ADD TO CART | |
| P10120150 | Relay 3PDT 24 VAC (Alarm) | - | 1.000 | $ 70.65 | ADD TO CART | |
| P10133370 | Inline Pumps (H WH P) Bronze (Soft Water) | - | 1.000 | $ 3,636.93 | ADD TO CART | |
| P10133154 | Refractory Kit (All Panels) | - | 1.000 | $ 1,274.11 | ADD TO CART | |
| P10025006 | Refractory Front Panels | - | 1.000 | $ 390.37 | ADD TO CART | |
| P10133014 | Jacket Top | - | 1.000 | $ 505.73 | ADD TO CART | |
| P10030892 | Upfront Control Panel w/LCD & Window | - | 1.000 | $ 98.88 | ADD TO CART | |
| P10026202 | Upper Control Access Jacket Panel | - | 1.000 | $ 153.47 | ADD TO CART | |
| P10026214 | Lower Front Jacket Panel | - | 1.000 | $ 193.64 | ADD TO CART | |
| P10030894 | Access Panel Igniter/Sensor | - | 1.000 | $ 19.57 | ADD TO CART | |
| P10026224 | Lower Rear Jacket Panel | - | 1.000 | $ 203.94 | ADD TO CART | |
| P10026232 | Upper Left Side Jacket Panel | - | 1.000 | $ 119.48 | ADD TO CART | |
| P10026284 | Upper Right Side Jacket Panel | - | 1.000 | $ 119.48 | ADD TO CART | |
| P10026286 | Air Intake Cover Panel | - | 1.000 | $ 60.77 | ADD TO CART | |
| P10026236 | Rear Flue Exhaust Cover Panel | - | 1.000 | $ 126.69 | ADD TO CART | |
| P10026312 | Flue Exhaust Cover Panel | - | 1.000 | $ 83.43 | ADD TO CART | |
| P10026242 | Lower Corner Supports Front and Rear | - | 1.000 | $ 69.01 | ADD TO CART | |
| P10026612 | Center Support Panel | - | 1.000 | $ 662.29 | ADD TO CART | |
| P10026252 | Support Horizontal | - | 1.000 | $ 49.44 | ADD TO CART | |
| P10026260 | Support Assy Controls and Flue Exhaust | - | 1.000 | $ 285.31 | ADD TO CART | |
| P10026266 | Flue Collector Top | - | 1.000 | $ 640.66 | ADD TO CART | |
| P10026272 | Access Panel | - | 1.000 | $ 248.23 | ADD TO CART | |
| P10026274 | Access Panel w/Pump | - | 1.000 | $ 412.00 | ADD TO CART | |
| P10023490 | Cover for Integral Return Header Mounted Pump | - | 1.000 | $ 246.17 | ADD TO CART | |
| P10030896 | Control Box Sheetmetal | - | 1.000 | $ 156.56 | ADD TO CART | |
| P10030898 | Field-Wiring/Display Mounting Panel | - | 1.000 | $ 39.14 | ADD TO CART | |
| P10026292 | Filter Mounting Panel | - | 1.000 | $ 147.29 | ADD TO CART | |
| P10128358 | Intake Air Vent Hood | - | 1.000 | $ 184.37 | ADD TO CART | |
| P10026536 | Flue Exhaust Gasket Retainer | - | 1.000 | $ 148.32 | ADD TO CART | |
| P10132968 | Combustion Chamber Rear Panel | - | 1.000 | $ 196.73 | ADD TO CART | |
| P10026812 | Base Assy | - | 1.000 | $ 694.22 | ADD TO CART | |
| P10027118 | Rear Center Cover Panel | - | 1.000 | $ 138.02 | ADD TO CART | |
| P10030682 | Power In/Dry Contacts Panel | - | 1.000 | $ 28.84 | ADD TO CART | |
| P10027380 | Switch Mtg Panel | - | 1.000 | $ 15.45 | ADD TO CART | |
| P10029228 | Outdoor Stack | - | 1.000 | $ 412.00 | ADD TO CART | |
| P10136202 | Flue ExhaustTee | - | 1.000 | $ 1,221.58 | ADD TO CART | |
| P10026296 | Flue Exhaust Tee Cap | - | 1.000 | $ 149.35 | ADD TO CART | |
| P10026304 | Flue Exhaust Adapter | - | 1.000 | $ 378.01 | ADD TO CART | |
| P10027110 | Flue Exhaust Straight Pipe | - | 1.000 | $ 722.03 | ADD TO CART | |
| P10030684 | Wire Harnesses Diagnostic Panel Ribbon Cable 16-PIN | - | 1.000 | $ 43.26 | ADD TO CART | |
| P10030686 | Wire Harnesses Diagnostic Panel Ribbon Cable 10-PIN | - | 1.000 | $ 47.38 | ADD TO CART | |
| P10030962 | Bell & Alarm Wire Harness | - | 1.000 | $ 58.71 | ADD TO CART | |
| P10030244 | Gas Valve Wire Harness (Honeywell) | - | 1.000 | $ 80.34 | ADD TO CART | |
| P10030904 | Gas Valve Wire Harness (Honeywell) | - | 1.000 | $ 256.47 | ADD TO CART | |
| P10030910 | Gas Valve /Safety Board 24V Left-Side Wire Harness | - | 1.000 | $ 77.25 | ADD TO CART | |
| P10030916 | Gas Valve /Safety Board 24V Right-Side Wire Harness | - | 1.000 | $ 54.59 | ADD TO CART | |
| P10030922 | PIM HSI/Blower Wire Harness | - | 1.000 | $ 64.89 | ADD TO CART | |
| P10030926 | PIM HSI/Blower Left Side Wire Harness | - | 1.000 | $ 49.44 | ADD TO CART | |
| P10030930 | PIM HSI/Blower Right Side Wire Harness | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10030708 | PIM 120V Power W/Pump Wire Harness | - | 1.000 | $ 51.50 | ADD TO CART | |
| P10030934 | PIM 120V Power No Pump Wire Harness | - | 1.000 | $ 31.93 | ADD TO CART | |
| P10030936 | PIM to Pim Wire Harness | - | 1.000 | $ 31.93 | ADD TO CART | |
| P10030938 | Interlock Relay Wire Harness | - | 1.000 | $ 40.17 | ADD TO CART | |
| P10030710 | PIM Power 24V Wire Harness | - | 1.000 | $ 25.75 | ADD TO CART | |
| P10030940 | PIM 2 Power 24V Wire Harness | - | 1.000 | $ 23.69 | ADD TO CART | |
| P10030712 | Power In Wire Harness | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10030714 | In/Out Sensor J-Box Wire Harness | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10030716 | In/Out Sensor Cabinet Wire Harness | - | 1.000 | $ 61.80 | ADD TO CART | |
| P10030718 | Control Box 120V Wire Harness | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10029976 | Versa IC Communication Cable | - | 1.000 | $ 88.58 | ADD TO CART | |
| P10030720 | Heater ID Wire Harness | - | 1.000 | $ 37.08 | ADD TO CART | |
| P10030722 | Field-Wiring Terminal Block 1 Wire Harness | - | 1.000 | $ 62.83 | ADD TO CART | |
| P10030724 | Field-Wiring Terminal Block 2 Wire Harness | - | 1.000 | $ 39.14 | ADD TO CART | |
| P10030726 | Control Signal Splitter Wire Harness | - | 1.000 | $ 65.92 | ADD TO CART | |
| P10030728 | High-Limit Manual Adjustable Wire Harness | - | 1.000 | $ 64.89 | ADD TO CART | |
| P10030730 | High-Limit Auto Adjustable Wire Harness | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10030734 | Low Water Cut Off Wire Harness | - | 1.000 | $ 81.37 | ADD TO CART | |
| P10030942 | High Gas Pressure Switch Wire Harness | - | 1.000 | $ 38.11 | ADD TO CART |
