Parts for Raypak, Inc. H7-1005A:

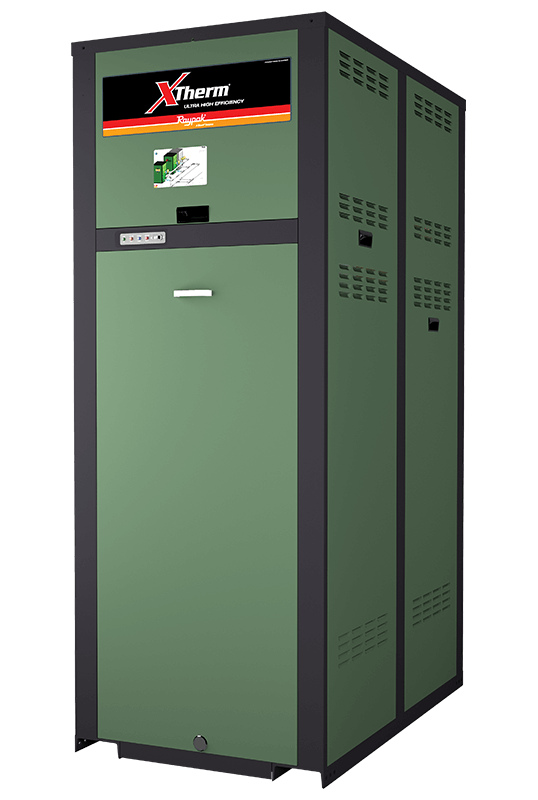

XTherm UHE, Hydronic Heater Electronic Modulation, 1005A
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
188 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10119972 | Adapter Gaskets and Heat Shield | - | 1.000 | $ 233.81 | ADD TO CART |
|
P10119974 | Flame Sensor Probe | - | 1.000 | $ 69.89 | ADD TO CART |
|
P10113620 | Igniter | - | 1.000 | $ 98.62 | ADD TO CART |
|
P10125144 | Auto Reset Adjustable High Limit 240F Max | - | 1.000 | $ 1,283.54 | ADD TO CART |
|
P10119820 | Manual Reset Adjustable High Limit 240F | - | 1.000 | $ 413.93 | ADD TO CART |
|
P10120142 | PIM (Platform Ignition Module) Multi Try | - | 1.000 | $ 1,131.97 | ADD TO CART |
|
P10028628 | Fuse 5 Amp (Fast Acting) | - | 1.000 | $ 37.08 | ADD TO CART |
|
P10120094 | PC Board VERSA IC | - | 1.000 | $ 988.80 | ADD TO CART |
|
P10120040 | Inlet Sensor (2 Wire) | - | 1.000 | $ 89.61 | ADD TO CART |
|
P10028572 | Outlet/Limit Sensor (4 Wire) | - | 1.000 | $ 105.26 | ADD TO CART |
|
P10113752 | System Water Sensor 10K | - | 1.000 | $ 64.49 | ADD TO CART |
|
P10122804 | Sensor Outdoor Air B-32 | - | 1.000 | $ 114.53 | ADD TO CART |
|
P10119822 | Indirect Tank Aquastat Control B-65 | - | 1.000 | $ 540.61 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 358.24 | ADD TO CART |
|
P10000058 | Flow Switch Paddle (Taco) | - | 1.000 | $ 183.34 | ADD TO CART |
|
P10119976 | Vent Pressure Switch | - | 1.000 | $ 154.84 | ADD TO CART |
|
P10120102 | Fuse 5 Amp (Pump) (Slow Blow) | - | 1.000 | $ 47.44 | ADD TO CART |
|
P10125128 | Transformer 120/24 100 VA | - | 1.000 | $ 261.62 | ADD TO CART |
|
P10120096 | LCD Display PC Board | - | 1.000 | $ 381.72 | ADD TO CART |
|
P10119970 | Relay DPDT 24V NO | - | 1.000 | $ 88.64 | ADD TO CART |
|
P10120064 | Relay DPDT 110/120V NO/NC | - | 1.000 | $ 61.80 | ADD TO CART |
|
P10119868 | Pump Contactor 120 VAC (Wiring Box) | - | 1.000 | $ 220.63 | ADD TO CART |
|
P10113724 | Rocker Switch | - | 1.000 | $ 48.41 | ADD TO CART |
|
P10113602 | On / Off Shut Down Switch 30 Amp | - | 1.000 | $ 118.45 | ADD TO CART |
|
P10129806 | Blower Combustion Air | - | 1.000 | $ 5,411.47 | ADD TO CART |
|
P10119984 | Adapter Gasket | - | 1.000 | $ 150.38 | ADD TO CART |
|
P10119986 | Adapter Gasket | - | 1.000 | $ 139.05 | ADD TO CART |
|
P10027160 | Adapter Plate | - | 1.000 | $ 286.34 | ADD TO CART |
|
P10024534 | Hose Duct 6" | - | 1.000 | $ 110.21 | ADD TO CART |
|
P10129098 | Valve Gas Modulating 120V (Dungs) Natural Gas for 1005A-1505A and Propane Gas for All Sizes | - | 1.000 | $ 5,180.90 | ADD TO CART |
|
P10122824 | Inlet Gas Filter Natural Gas for 1005A-1505A and Propane Gas for All Sizes | - | 1.000 | $ 168.92 | ADD TO CART |
|
P10122814 | Swirler | - | 1.000 | $ 1,005.28 | ADD TO CART |
|
P10120002 | Nozzle Natural Gas (1005A Only) and Propane Gas All Sizes | - | 1.000 | $ 130.81 | ADD TO CART |
|
P10113626 | Bleedle Valve 1/8 MPT | - | 1.000 | $ 41.20 | ADD TO CART |
|
P10029782 | Bleedle Valve G1/8 BSP | - | 1.000 | $ 40.17 | ADD TO CART |
|
P10027188 | Solenoid Safety Shut Off Valve M-10 Pro (Optional) | - | 1.000 | $ 3,503.00 | ADD TO CART |
|
P10113758 | Switch Low Gas Pressure (Optional) | - | 1.000 | $ 426.42 | ADD TO CART |
|
P10113560 | Switch Low Gas Pressure w/M-1 or M-10 (Optional) | - | 1.000 | $ 316.74 | ADD TO CART |
|
P10026984 | Switch High Gas Pressure (Optional) | - | 1.000 | $ 426.42 | ADD TO CART |
|
P10131994 | Return Header Bronze | - | 1.000 | $ 4,675.84 | ADD TO CART |
|
P10131474 | Return Header Cast Iron | - | 1.000 | $ 4,195.38 | ADD TO CART |
|
P10025998 | Stud Bolt | - | 1.000 | $ 147.29 | ADD TO CART |
|
P10113584 | Header Gasket (20 PCS) | - | 1.000 | $ 98.88 | ADD TO CART |
|
P10113452 | Drain Valve | - | 1.000 | $ 118.45 | ADD TO CART |
|
P10147555 | Automatic Air Vent Valve (not shown) (for units built prior to 2/15/18) | - | 1.000 | $ 125.07 | ADD TO CART |
|
P10120010 | Condensate Float Switch | - | 1.000 | $ 328.41 | ADD TO CART |
|
P10120012 | O-ring Seal | - | 1.000 | $ 41.20 | ADD TO CART |
|
P10113512 | Window Combustion Chamber | - | 1.000 | $ 81.37 | ADD TO CART |
|
P10113568 | T & P Gauge 0-75 PSI | - | 1.000 | $ 55.72 | ADD TO CART |
|
P10113618 | T & P Gauge 0-200 PSI | - | 1.000 | $ 128.65 | ADD TO CART |
|
P10113578 | PRV 60 PSI | - | 1.000 | $ 214.24 | ADD TO CART |
|
P10024330 | PRV 75 PSI | - | 1.000 | $ 216.30 | ADD TO CART |
|
P10119838 | PRV 125 PSI | - | 1.000 | $ 121.35 | ADD TO CART |
|
P10113580 | PRV 150 PSI | - | 1.000 | $ 327.54 | ADD TO CART |
|
P10119916 | RTV Sealant 2.8 OZ. (Not Shown) | - | 1.000 | $ 147.57 | ADD TO CART |
|
P10113424 | RTV Sealant 10 OZ. (Not Shown) | - | 1.000 | $ 135.96 | ADD TO CART |
|
P10026986 | Flue Collector Vertical Seal Gasket | - | 1.000 | $ 357.41 | ADD TO CART |
|
P10024338 | Insulation Blanket Return Header | - | 1.000 | $ 0.00 | ADD TO CART |
|
P10120014 | Flue Exhaust Adapter Gasket Rectangle | - | 1.000 | $ 109.18 | ADD TO CART |
|
P10027450 | Plenum Gasket Upper and Lower | - | 1.000 | $ 195.70 | ADD TO CART |
|
P10120018 | Access Panel Gasket Condensing Heat Exch | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10120020 | Flange Gasket 2" or 2-1/2" NPT | - | 1.000 | $ 79.31 | ADD TO CART |
|
P10031982 | Sealant Tape (Grey) Specify Length (Not Shown) | - | 1.000 | $ 6.18 | ADD TO CART |
|
P10113582 | Remote Sensor (LWCO) | - | 1.000 | $ 141.11 | ADD TO CART |
|
P10113548 | Control PC Board (LWCO) | - | 1.000 | $ 408.34 | ADD TO CART |
|
P10113398 | Test Reset Switch (LWCO) | - | 1.000 | $ 130.81 | ADD TO CART |
|
P10027126 | Vent Limit Switch Manual Reset PVC Venting | - | 1.000 | $ 164.94 | ADD TO CART |
|
P10133306 | Bypass Pump Bronze | - | 1.000 | $ 4,156.08 | ADD TO CART |
|
P10120070 | Pump Flange Gasket | - | 1.000 | $ 216.96 | ADD TO CART |
|
P10025788 | Pump Flange Gasket | - | 1.000 | $ 6.88 | ADD TO CART |
|
P10024366 | Return Header Cover | - | 1.000 | $ 138.02 | ADD TO CART |
|
P10120024 | Air Filter Media | - | 1.000 | $ 90.64 | ADD TO CART |
| P10128360 | Adapter Assembly | - | 1.000 | $ 527.36 | ADD TO CART | |
| P10026974 | Burner | - | 1.000 | $ 2,253.64 | ADD TO CART | |
| P10028994 | PIM (Platform Ignition Module) Single Try CSD-1 | - | 1.000 | $ 1,228.79 | ADD TO CART | |
| P10029568 | Inverter | - | 1.000 | $ 2,221.71 | ADD TO CART | |
| P10029570 | Programmed Chip for Inverter P3 Chip (Units manufactured prior to 03/22/18) | - | 1.000 | $ 115.36 | ADD TO CART | |
| P10031430 | Programmed Chip for Inverter P7 Chip (Units manufactured from 03/23/18) | - | 1.000 | $ 183.34 | ADD TO CART | |
| P21148159 | Bypass Thermostat Sensor 350F | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10113674 | Terminal Block Ground Lug | - | 1.000 | $ 159.65 | ADD TO CART | |
| P21043348 | Touchscreen Display | - | 1.000 | $ 3,473.16 | ADD TO CART | |
| P10030228 | SD Card Programmed (Not Shown) | - | 1.000 | $ 330.63 | ADD TO CART | |
| P10030230 | Lithium Battery 3V (Not Shown) | - | 1.000 | $ 76.22 | ADD TO CART | |
| P10028578 | Switch/Decal Membrane | - | 1.000 | $ 321.36 | ADD TO CART | |
| P10000098 | Indicator Lamp LED | - | 1.000 | $ 120.51 | ADD TO CART | |
| P10029464 | PC Board Adapter Status Lights Wiring | - | 1.000 | $ 117.42 | ADD TO CART | |
| P10030224 | Reset Switch for Touchscreen | - | 1.000 | $ 181.28 | ADD TO CART | |
| P10024306 | Ground Lug | - | 1.000 | $ 24.72 | ADD TO CART | |
| P10027120 | Plenum Assembly | - | 1.000 | $ 246.17 | ADD TO CART | |
| P10027140 | Air Shutter | - | 1.000 | $ 134.93 | ADD TO CART | |
| P10028128 | Valve Coil 120V Nat for 1005A-1505A, and Propane Gas for All Sizes | - | 1.000 | $ 2,939.62 | ADD TO CART | |
| P10027406 | O-rings (Includes Gas Valve and Adapter O-rings) | - | 1.000 | $ 214.24 | ADD TO CART | |
| P10027198 | Adapter Gas Valve 1" Inlet (Includes O-rings) | - | 1.000 | $ 309.00 | ADD TO CART | |
| P10027200 | Adapter Gas Valve 1-1/4" Inlet (Includes O-rings) | - | 1.000 | $ 319.30 | ADD TO CART | |
| P10028134 | Adapter Gas Valve Outlet w/Shutter (Includes O-ring) Natural (1005A-1505A) and Propane Gas All Sizes | - | 1.000 | $ 967.17 | ADD TO CART | |
| P10027322 | Adapter Swirl Plate | - | 1.000 | $ 342.99 | ADD TO CART | |
| P10026982 | Valve Gas Ball (WOG) | - | 1.000 | $ 293.55 | ADD TO CART | |
| P10027186 | Motorized Safety Shut Off Actuator M-1(Optional) | - | 1.000 | $ 1,232.40 | ADD TO CART | |
| P10028646 | Gas Valve Body M1 Nat (Optional) | - | 1.000 | $ 803.99 | ADD TO CART | |
| P10136504 | Gas Valve Body M1 Pro (Optional) | - | 1.000 | $ 1,199.95 | ADD TO CART | |
| P10027190 | Solenoid Safety Shut Off Valve M-10 Nat (Optional) | - | 1.000 | $ 1,987.90 | ADD TO CART | |
| P10027196 | Vent Valve Gas M-15 Nat (Optional) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10027194 | Vent Valve Gas M-15 Pro (Optional) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10029384 | Heat Transfer Cupro-Nickel Bronze (Includes 18-S) | - | 1.000 | $ 26,160.97 | ADD TO CART | |
| P10029388 | Heat Transfer Cupro-Nickel Cast Iron (Includes 18-S) | - | 1.000 | $ 22,608.50 | ADD TO CART | |
| P10029394 | Heat Transfer Copper Bronze (Includes 18-S) | - | 1.000 | $ 22,844.37 | ADD TO CART | |
| P10029398 | Heat Transfer Copper Cast Iron (Includes 18-S) | - | 1.000 | $ 28,758.63 | ADD TO CART | |
| P10029332 | Inlet/Outlet Header Bronze | - | 1.000 | $ 7,882.59 | ADD TO CART | |
| P10029334 | Inlet/Outlet Header Cast Iron | - | 1.000 | $ 4,420.76 | ADD TO CART | |
| P10425422 | Manual Air Vent Valve Bushing | - | 1.000 | $ 69.01 | ADD TO CART | |
| P10416362 | Manual Air Vent Valve | - | 1.000 | $ 160.68 | ADD TO CART | |
| P21043365 | Insulation/Sight Glass & Header Cover | - | 1.000 | $ 120.51 | ADD TO CART | |
| P10133802 | Heat Exch Stainless Steel (Includes 21-S) | - | 1.000 | $ 29,989.48 | ADD TO CART | |
| P10028872 | T & P Gauge 0-230 PSI | - | 1.000 | $ 118.45 | ADD TO CART | |
| P10126966 | PRV 30 PSI | - | 1.000 | $ 1,261.75 | ADD TO CART | |
| P10024328 | PRV 45 PSI | - | 1.000 | $ 188.49 | ADD TO CART | |
| P10028292 | UV PRV 150 PSI | - | 1.000 | $ 896.10 | ADD TO CART | |
| P10026348 | Flue Exhaust Adapter Gasket Round | - | 1.000 | $ 76.22 | ADD TO CART | |
| P10125148 | Condensate Hose | - | 1.000 | $ 125.66 | ADD TO CART | |
| P21027910 | Condensate Management (Not Shown) | - | 1.000 | $ 663.32 | ADD TO CART | |
| P10113844 | Touch-up Paint Green | - | 1.000 | $ 61.99 | ADD TO CART | |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P10029564 | Wire Harness | - | 1.000 | $ 4,068.50 | ADD TO CART | |
| P10120146 | LCD Display Wire Harness | - | 1.000 | $ 84.46 | ADD TO CART | |
| P10120148 | LED Status Lights Wire Harness | - | 1.000 | $ 88.58 | ADD TO CART | |
| P10029976 | Versa IC Communication Cable | - | 1.000 | $ 107.12 | ADD TO CART | |
| P10031412 | Identification Card Harness (Not Shown) | - | 1.000 | $ 292.52 | ADD TO CART | |
| P10027570 | Plastic Handle | - | 1.000 | $ 254.41 | ADD TO CART | |
| P10029380 | Metal Handle | - | 1.000 | $ 57.68 | ADD TO CART | |
| P10030168 | Bypass Plumbing Assembly Copper | - | 1.000 | $ 7,990.74 | ADD TO CART | |
| P10030188 | PRV Plumbing Assembly PRV 30 PSI (All Sizes)/45 PSI (2005A)/UV 150 PSI (All Sizes) | - | 1.000 | $ 834.30 | ADD TO CART | |
| P10030176 | Dual Injector Pump Upper Plumbing Assembly | - | 1.000 | $ 3,602.94 | ADD TO CART | |
| P10030178 | Dual Injector Pump Lower Plumbing Assembly | - | 1.000 | $ 3,264.07 | ADD TO CART | |
| P10030180 | Single Injector Pump Upper Plumbing Assembly Copper | - | 1.000 | $ 3,945.93 | ADD TO CART | |
| P10030186 | Single Injector Pump Lower Plumbing Assembly Copper | - | 1.000 | $ 3,541.14 | ADD TO CART | |
| P21027913 | Outlet Connection Plumbing (Pool Only) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21027914 | Flange Gasket (Pool Only) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10024124 | Alarm Bell 4" 24V | - | 1.000 | $ 1,094.89 | ADD TO CART | |
| P10120150 | Relay 3PDT 24 VAC (Alarm) | - | 1.000 | $ 76.22 | ADD TO CART | |
| P10028690 | Vent Limit Switch Manual Reset Polypropylene Venting | - | 1.000 | $ 106.09 | ADD TO CART | |
| P10024122 | Alarm Buzzer 24 V | - | 1.000 | $ 179.22 | ADD TO CART | |
| P10133290 | Bypass Pump Cast Iron | - | 1.000 | $ 3,207.27 | ADD TO CART | |
| P10130696 | Injector Pump Dual Bronze/SS or Dual Cast Iron | - | 1.000 | $ 1,967.90 | ADD TO CART | |
| P10031318 | Injector Pump Dual Bronze/SS or Dual Cast Iron | - | 1.000 | $ 2,169.18 | ADD TO CART | |
| P10030676 | Pump Cartridge | - | 1.000 | $ 581.95 | ADD TO CART | |
| P10132364 | Jacket Top | - | 1.000 | $ 250.29 | ADD TO CART | |
| P10027008 | Flue Collector Front (No Opening) (Includes 6-M) | - | 1.000 | $ 1,239.09 | ADD TO CART | |
| P10027456 | Flue Collector Rear (Opening) (Includes 6-M and 9-M) | - | 1.000 | $ 1,350.33 | ADD TO CART | |
| P10029404 | Heat Transfer Supports | - | 1.000 | $ 165.83 | ADD TO CART | |
| P10029406 | Upper Cabinet Support Front | - | 1.000 | $ 51.50 | ADD TO CART | |
| P10029448 | Upper Cabinet Supports Rear | - | 1.000 | $ 77.25 | ADD TO CART | |
| P10029450 | Upper Cabinet Supports Side | - | 1.000 | $ 65.92 | ADD TO CART | |
| P10029408 | Vertical Cabinet Supports with Stiffeners | - | 1.000 | $ 412.00 | ADD TO CART | |
| P10029414 | Jacket Upper Front Panel w/LCD Display | - | 1.000 | $ 237.93 | ADD TO CART | |
| P21027915 | Jacket Upper Front Panel for Touchscreen | - | 1.000 | $ 429.51 | ADD TO CART | |
| P10029418 | Jacket Lower Front Panel | - | 1.000 | $ 275.01 | ADD TO CART | |
| P10029452 | Jacket Side/Front Panel | - | 1.000 | $ 142.14 | ADD TO CART | |
| P10029456 | Jacket Side/Rear Panel | - | 1.000 | $ 141.11 | ADD TO CART | |
| P10029424 | Jacket Upper Rear Panel | - | 1.000 | $ 290.46 | ADD TO CART | |
| P10027552 | Access Panel Intake Air | - | 1.000 | $ 54.59 | ADD TO CART | |
| P10027496 | Jacket Lower Rear Panel | - | 1.000 | $ 185.40 | ADD TO CART | |
| P10027554 | Access Panel Lower Rear | - | 1.000 | $ 88.58 | ADD TO CART | |
| P10029462 | Upper Front Panel w/LED Lights | - | 1.000 | $ 266.77 | ADD TO CART | |
| P10027502 | Base Assembly | - | 1.000 | $ 1,067.08 | ADD TO CART | |
| P10024446 | Leg Bracket Primary Heat Exch (4 pcs per boiler) | - | 1.000 | $ 439.81 | ADD TO CART | |
| P10027504 | Leg Bracket Condensing Heat Exch (2 pcs per boiler) | - | 1.000 | $ 276.04 | ADD TO CART | |
| P10119840 | Base Reflector Panel | - | 1.000 | $ 108.15 | ADD TO CART | |
| P10027510 | Flue Exhaust Adapter Assembly | - | 1.000 | $ 1,455.39 | ADD TO CART | |
| P10029432 | Control Box Assy | - | 1.000 | $ 506.76 | ADD TO CART | |
| P10029446 | Control Box Cover Panel with Digital Display | - | 1.000 | $ 45.32 | ADD TO CART | |
| P10173890 | Control Box Cover Panel for Touchscreen Display | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10029326 | Control Box Cover Panel with Power Switch | - | 1.000 | $ 179.22 | ADD TO CART | |
| P10029172 | 24V Wiring Panel | - | 1.000 | $ 71.07 | ADD TO CART | |
| P10027560 | Intake Air Collar | - | 1.000 | $ 277.07 | ADD TO CART | |
| P10027540 | Access Panel Wiring Box | - | 1.000 | $ 40.17 | ADD TO CART | |
| P10122828 | Access Panel Condensing Heat Exch | - | 1.000 | $ 131.84 | ADD TO CART | |
| P10027522 | Plenum Upper Condensing Heat Exch | - | 1.000 | $ 447.02 | ADD TO CART | |
| P10027528 | Plenum Lower Condensing Heat Exch | - | 1.000 | $ 702.46 | ADD TO CART | |
| P10173856 | Filter Access Cover | - | 1.000 | $ 96.82 | ADD TO CART | |
| P10028294 | Condensate Hose Bracket | - | 1.000 | $ 116.39 | ADD TO CART | |
| P10029336 | Outdoor Stack | - | 1.000 | $ 877.56 | ADD TO CART | |
| P10173857 | Vent Cap Vertical for Indoor Units | - | 1.000 | $ 303.72 | ADD TO CART | |
| P10173858 | Vent Cap Horizontal Thru-the-Wall for Indoor Units | - | 1.000 | $ 364.46 | ADD TO CART | |
| P10027534 | Intake Air filter Box | - | 1.000 | $ 298.70 | ADD TO CART | |
| P10027564 | Condensate Drip Pan | - | 1.000 | $ 77.25 | ADD TO CART | |
| P10028284 | Flue Exhaust Termination Adapter for PVC Venting | - | 1.000 | $ 123.60 | ADD TO CART | |
| P21027916 | Flue Exhaust Termination Adapter for Polypropylene Venting | - | 1.000 | $ 694.59 | ADD TO CART | |
| P10031244 | Flue Exhaust Termination Adapter for Polypropylene Venting | - | 1.000 | $ 531.48 | ADD TO CART |
