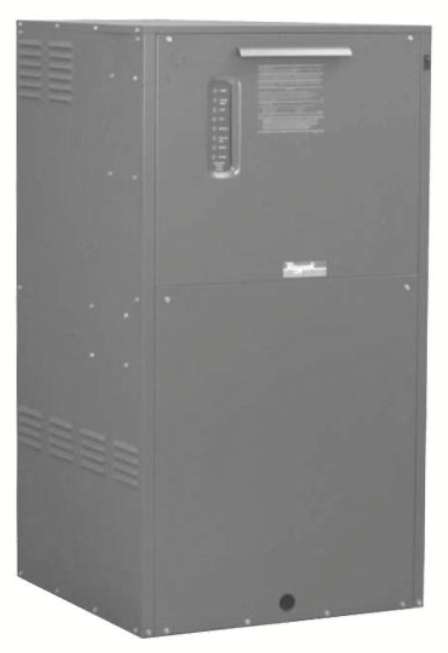

Parts for Raypak, Inc. H4-500:
ADB, Heating System On/Off, 500
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
107 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10113540 | Ignitor-Spark Rod | - | 1.000 | $ 143.17 | ADD TO CART |
|
P10113538 | High Tension Wire | - | 1.000 | $ 111.24 | ADD TO CART |
|
P10119882 | Pilot Burner (not shown) | - | 1.000 | $ 55.62 | ADD TO CART |
|
P10119818 | Auto Reset High Limit | - | 1.000 | $ 353.29 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 357.41 | ADD TO CART |
|
P10119820 | Manual Reset High Limit | - | 1.000 | $ 388.31 | ADD TO CART |
|
P10113544 | Printed Circuit Board - Central Point Wiring | - | 1.000 | $ 1,030.00 | ADD TO CART |
|
P10000038 | Printed Circuit Board - U2 | - | 1.000 | $ 488.22 | ADD TO CART |
|
P10119822 | Remote Aquastat- Storage tank (Tankstat) | - | 1.000 | $ 298.70 | ADD TO CART |
|
P10113550 | Switch-Pressure Vent Normally Closed | - | 1.000 | $ 197.76 | ADD TO CART |
|
P10113552 | Switch-Pressure Air Normally Open | - | 1.000 | $ 74.16 | ADD TO CART |
|
P10113434 | Thermostat Manual Reset | - | 1.000 | $ 63.86 | ADD TO CART |
|
P10113450 | Transformer 120/24 50 VA | - | 1.000 | $ 98.88 | ADD TO CART |
|
P10119884 | Relay DPDT 24 VAC | - | 1.000 | $ 75.19 | ADD TO CART |
|
P10113546 | Ignition Control IID | - | 1.000 | $ 584.01 | ADD TO CART |
|
P10113500 | Switch-Rocker SPST 16A | - | 1.000 | $ 41.20 | ADD TO CART |
|
P10125090 | Auto On/Off Valve (V-88) | - | 1.000 | $ 555.17 | ADD TO CART |
|
P10113560 | Switch Low Gas Pressure | - | 1.000 | $ 315.16 | ADD TO CART |
|
P10119832 | Valve Gas Manual A 1" | - | 1.000 | $ 146.26 | ADD TO CART |
|
P10113562 | Valve Gas Manual B | - | 1.000 | $ 76.22 | ADD TO CART |
|
P10113564 | Valve Pilot Gas Nat | - | 1.000 | $ 164.80 | ADD TO CART |
|
P10119830 | Switch High Gas Pressure (optional) Not Shown | - | 1.000 | $ 297.01 | ADD TO CART |
|
P10131994 | Return Header Bronze | - | 1.000 | $ 4,640.15 | ADD TO CART |
|
P10113584 | Header Gasket (20 PCS) | - | 1.000 | $ 86.52 | ADD TO CART |
|
P10113570 | Well-Bulb Sensor 1/2"x 3-5/16" | - | 1.000 | $ 48.41 | ADD TO CART |
|
P10113452 | Drain Valve (Not Shown) | - | 1.000 | $ 101.97 | ADD TO CART |
|
P10119784 | Flow Switch Paddle | - | 1.000 | $ 132.87 | ADD TO CART |
|
P10113512 | Window Combustion Chamber | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10113574 | PRV 30 PSI | - | 1.000 | $ 219.39 | ADD TO CART |
|
P10113576 | PRV 45 PSI | - | 1.000 | $ 143.17 | ADD TO CART |
|
P10113578 | PRV 60 PSI | - | 1.000 | $ 189.10 | ADD TO CART |
|
P10024330 | PRV 75 PSI | - | 1.000 | $ 160.68 | ADD TO CART |
|
P10119838 | PRV 125 PSI | - | 1.000 | $ 136.99 | ADD TO CART |
|
P10113580 | PRV 150 PSI | - | 1.000 | $ 139.05 | ADD TO CART |
|
P10119916 | RTV Sealant 2.8 OZ | - | 1.000 | $ 167.89 | ADD TO CART |
|
P10113424 | RTV Sealant 10 OZ | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10122748 | Generator-Spark C-2 | - | 1.000 | $ 489.25 | ADD TO CART |
|
P10113582 | Remote Sensor for Low Water Cut-Off | - | 1.000 | $ 121.54 | ADD TO CART |
|
P10113548 | Low Water Cut Off PC Board | - | 1.000 | $ 416.12 | ADD TO CART |
|
P10024338 | Blanket Return Header Refractory | - | 1.000 | $ 136.99 | ADD TO CART |
|
P10024366 | Return Header Cover | - | 1.000 | $ 119.48 | ADD TO CART |
| P10126956 | Burner / Pilot Assembly IID | - | 1.000 | $ 1,508.95 | ADD TO CART | |
| P10024266 | Burner / Pilot Assembly C-2 | - | 1.000 | $ 1,572.81 | ADD TO CART | |
| P10024282 | Plenum Assembly Complete | - | 1.000 | $ 1,739.67 | ADD TO CART | |
| P10024274 | Burner Block | - | 1.000 | $ 635.51 | ADD TO CART | |
| P10119814 | Burner Housing Refractory Block | - | 1.000 | $ 169.95 | ADD TO CART | |
| P10119816 | Baffle-Gas/Air Mixing | - | 1.000 | $ 504.70 | ADD TO CART | |
| P10024288 | Plenum End Panel | - | 1.000 | $ 119.48 | ADD TO CART | |
| P10024300 | Control Box Cover | - | 1.000 | $ 209.09 | ADD TO CART | |
| P10024302 | Control Box Complete | - | 1.000 | $ 1,157.72 | ADD TO CART | |
| P10024304 | Terminal Block 8 space | - | 1.000 | $ 63.86 | ADD TO CART | |
| P10113674 | Terminal Block w/Ground Tab (Not Shown) | - | 1.000 | $ 39.14 | ADD TO CART | |
| P10024306 | Connector-Wire Bonding 14/6 | - | 1.000 | $ 9.27 | ADD TO CART | |
| P10024228 | Air Shutter Assembly | - | 1.000 | $ 534.57 | ADD TO CART | |
| P10024310 | Cap Intake Vent | - | 1.000 | $ 63.86 | ADD TO CART | |
| P10024312 | Bleed Line Assembly | - | 1.000 | $ 94.76 | ADD TO CART | |
| P10024314 | Vent Line Assembly | - | 1.000 | $ 46.35 | ADD TO CART | |
| P10122742 | Manifold-Gas Injector Nat | - | 1.000 | $ 772.50 | ADD TO CART | |
| P10024316 | Manifold-Gas Injector Pro | - | 1.000 | $ 508.82 | ADD TO CART | |
| P10113554 | Orifice-Pilot Air | - | 1.000 | $ 18.54 | ADD TO CART | |
| P10113556 | Orifice-Pilot Pro | - | 1.000 | $ 11.33 | ADD TO CART | |
| P10113558 | Orifice-Pilot Nat | - | 1.000 | $ 11.33 | ADD TO CART | |
| P10119824 | Regulator Gas 1" Nat | - | 1.000 | $ 302.82 | ADD TO CART | |
| P10119828 | Regulator Gas 1" Pro | - | 1.000 | $ 313.12 | ADD TO CART | |
| P10113566 | Valve Pilot Gas Pro | - | 1.000 | $ 325.48 | ADD TO CART | |
| P10024322 | Heat Transfer Assy. Cupro Nickel (Includes 17-S) | - | 1.000 | $ 14,065.68 | ADD TO CART | |
| P10025784 | Heat Transfer Assy. Copper (Includes 17-S) | - | 1.000 | $ 13,300.39 | ADD TO CART | |
| P10129478 | Inlet/Outlet Header Bronze | - | 1.000 | $ 2,665.64 | ADD TO CART | |
| P10122738 | Studbolt HX 500-1000 | - | 1.000 | $ 140.08 | ADD TO CART | |
| P10113572 | In Line Fuse Holder (Not Shown) | - | 1.000 | $ 133.90 | ADD TO CART | |
| P10119888 | Fuse 15 AMP (Not Shown) | - | 1.000 | $ 195.70 | ADD TO CART | |
| P10024296 | Guide PC Card | - | 1.000 | $ 21.63 | ADD TO CART | |
| P10113586 | T & P Gauge 0-90 PSI | - | 1.000 | $ 177.16 | ADD TO CART | |
| P10113588 | T & P Gauge 0-200 PSI | - | 1.000 | $ 101.97 | ADD TO CART | |
| P10028872 | T & P Gauge 0-230 PSI | - | 1.000 | $ 100.94 | ADD TO CART | |
| P10113844 | Touch Up Paint (Green) | - | 1.000 | $ 56.65 | ADD TO CART | |
|
P10113846 | Touch Up Paint (Dark Gray) | - | 1.000 | $ 70.04 | ADD TO CART |
| P10024486 | Amplifier-Flame Rectification C-2 | - | 1.000 | $ 690.10 | ADD TO CART | |
| P10122746 | Control-Burner Flame Safeguard C-2 Ignition | - | 1.000 | $ 1,129.91 | ADD TO CART | |
| P10024488 | Detector-UV Flame C-2 | - | 1.000 | $ 429.51 | ADD TO CART | |
| P10024490 | Panel-Control Mounting | - | 1.000 | $ 51.50 | ADD TO CART | |
| P10132956 | Pump -Circulating - Bronze (Soft Water) 2 in. | - | 1.000 | $ 2,512.17 | ADD TO CART | |
| P10024474 | Pump -Circulating - Bronze (Hard Water) 2 in. | - | 1.000 | $ 3,357.80 | ADD TO CART | |
| P10024334 | Pump -Circulating - CI (Soft Water) 2 in. | - | 1.000 | $ 2,000.26 | ADD TO CART | |
| P10024480 | Pump -Circulating- CI (Hard Water) 2 in. | - | 1.000 | $ 2,270.12 | ADD TO CART | |
| P10024340 | Jacket Top | - | 1.000 | $ 116.39 | ADD TO CART | |
| P10024344 | Flue Collector Front (No opening) | - | 1.000 | $ 485.13 | ADD TO CART | |
| P10024352 | Flue Collector Rear (Opening) | - | 1.000 | $ 1,062.96 | ADD TO CART | |
| P10024360 | Support Channel | - | 1.000 | $ 195.70 | ADD TO CART | |
| P10024364 | Control Box Cover | - | 1.000 | $ 109.18 | ADD TO CART | |
| P10024368 | Door (Lower) | - | 1.000 | $ 82.40 | ADD TO CART | |
| P10024376 | Jacket Upper Front Panel | - | 1.000 | $ 286.34 | ADD TO CART | |
| P10024382 | Access Panel Flue (Lower) | - | 1.000 | $ 93.73 | ADD TO CART | |
| P10024390 | Access Panel Flue (Upper) | - | 1.000 | $ 93.73 | ADD TO CART | |
| P10024398 | Access Panel Flue (1 Pc.) (Blank-solid) | - | 1.000 | $ 118.45 | ADD TO CART | |
| P10024404 | Jacket Side Right Panel | - | 1.000 | $ 151.41 | ADD TO CART | |
| P10024410 | Jacket Side Right Panel Connection Option | - | 1.000 | $ 231.75 | ADD TO CART | |
| P10024418 | Jacket Side Left Panel | - | 1.000 | $ 227.63 | ADD TO CART | |
| P10024426 | Jacket Rear Panel | - | 1.000 | $ 223.51 | ADD TO CART | |
| P10024434 | Jacket Rear Panel Connection Option | - | 1.000 | $ 272.95 | ADD TO CART | |
| P10024442 | Base Assembly | - | 1.000 | $ 488.22 | ADD TO CART | |
| P10024446 | Leg Bracket (4 pcs per boiler) | - | 1.000 | $ 326.51 | ADD TO CART | |
| P10119840 | Base Reflector Panel | - | 1.000 | $ 71.07 | ADD TO CART | |
| P10024298 | Control Box Assy | - | 1.000 | $ 199.82 | ADD TO CART | |
| P10024308 | Bracket Pressure Switch MTG | - | 1.000 | $ 45.32 | ADD TO CART | |
| P10024320 | Valve Pilot Mounting Bracket (Not shown) | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10024458 | Intake Air Cover Panel | - | 1.000 | $ 45.32 | ADD TO CART |
