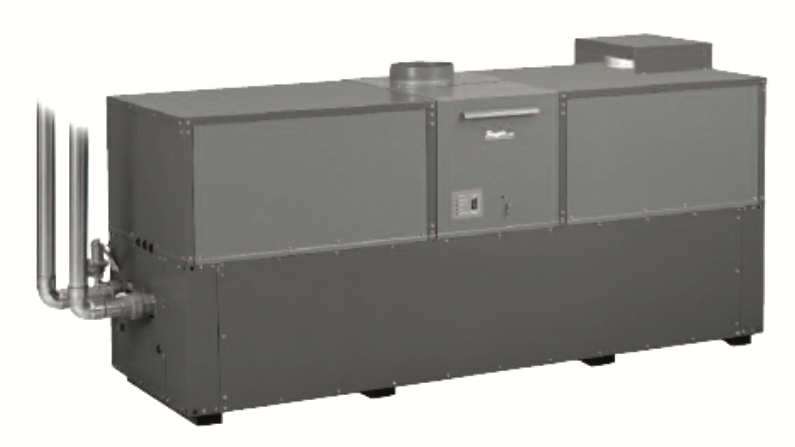

Parts for Raypak, Inc. H4-2002:
Hi-Delta, Hydrionic Heating, On/Off, 2002
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
143 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10119820 | Manual Hi Limit 240 Degree Max | - | 1.000 | $ 388.31 | ADD TO CART |
|
P10119818 | Adj. Auto Hi Limit 240 Degree Max | - | 1.000 | $ 353.29 | ADD TO CART |
|
P10119822 | Remote Aquastat (Tankstat) (B-2) | - | 1.000 | $ 298.70 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 357.41 | ADD TO CART |
|
P10113302 | Economaster Il Control | - | 1.000 | $ 221.45 | ADD TO CART |
|
P10113550 | Switch Air Pressure N.C. | - | 1.000 | $ 197.76 | ADD TO CART |
|
P10113660 | Switch Air Pressure N.O. | - | 1.000 | $ 116.39 | ADD TO CART |
|
P10130234 | Blower Combustion Air (Left Hand) | - | 1.000 | $ 788.78 | ADD TO CART |
|
P10130236 | Blower Combustion Air (Right Hand) | - | 1.000 | $ 782.80 | ADD TO CART |
|
P10024534 | Hose Duct 6" | - | 1.000 | $ 92.95 | ADD TO CART |
|
P10113622 | Valve Gas Manual A 3/4" | - | 1.000 | $ 61.80 | ADD TO CART |
|
P10113624 | Bleedle Valve 1/4" | - | 1.000 | $ 32.96 | ADD TO CART |
|
P10113626 | Bleedle Valve 1/8" | - | 1.000 | $ 31.93 | ADD TO CART |
|
P10122754 | Combination Gas Valve Nat 3/4" | - | 1.000 | $ 696.41 | ADD TO CART |
|
P10122756 | Combination Gas Valve Pro 3/4" | - | 1.000 | $ 423.33 | ADD TO CART |
|
P10113560 | Switch Low Gas Pressure | - | 1.000 | $ 334.07 | ADD TO CART |
|
P10119830 | Switch High Gas Pressure (optional) Not Shown | - | 1.000 | $ 297.01 | ADD TO CART |
|
P10131050 | Inlet/Outlet Header Cast Iron | - | 1.000 | $ 727.18 | ADD TO CART |
|
P10131052 | Inlet/Outlet Header Brass | - | 1.000 | $ 2,436.47 | ADD TO CART |
|
P10130242 | Return Header Cast Iron | - | 1.000 | $ 627.27 | ADD TO CART |
|
P10131912 | Return Pump Header Cast Iron | - | 1.000 | $ 1,621.22 | ADD TO CART |
|
P10122766 | Stud Bolt Kit | - | 1.000 | $ 121.54 | ADD TO CART |
|
P10119858 | Header Gasket | - | 1.000 | $ 123.60 | ADD TO CART |
|
P10113570 | Sensor Well | - | 1.000 | $ 48.41 | ADD TO CART |
|
P10031488 | Well Retaining Clip | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10113592 | Ignition Control | - | 1.000 | $ 556.20 | ADD TO CART |
|
P10125128 | Transformer 100 VA | - | 1.000 | $ 251.08 | ADD TO CART |
|
P10113642 | Relay SPST 24V | - | 1.000 | $ 111.24 | ADD TO CART |
|
P10113594 | Relay DPST 24V NO | - | 1.000 | $ 79.31 | ADD TO CART |
|
P10113596 | Relay SPST 24V NO | - | 1.000 | $ 100.94 | ADD TO CART |
|
P10113598 | Time Delay Contactor | - | 1.000 | $ 108.15 | ADD TO CART |
|
P10113602 | Automatic Shut Down Breaker Switch (30 Amp) | - | 1.000 | $ 103.00 | ADD TO CART |
|
P10113604 | Lamp 28V | - | 1.000 | $ 35.02 | ADD TO CART |
|
P10113606 | Terminal Block (3 Space) | - | 1.000 | $ 35.02 | ADD TO CART |
|
P10113616 | Terminal Block (16 Space) | - | 1.000 | $ 222.48 | ADD TO CART |
|
P10122780 | Printed Circuit Board CPW | - | 1.000 | $ 1,469.81 | ADD TO CART |
|
P10000054 | Relay SPDT (K1, K4) (Not Shown) | - | 1.000 | $ 46.35 | ADD TO CART |
|
P10000038 | Printed Circuit Board U2 | - | 1.000 | $ 488.22 | ADD TO CART |
|
P10119862 | Printed Circuit Board Status Lights | - | 1.000 | $ 370.80 | ADD TO CART |
|
P10113698 | Time Delay Contactor | - | 1.000 | $ 162.68 | ADD TO CART |
|
P10113500 | On/Off Switch | - | 1.000 | $ 41.20 | ADD TO CART |
|
P10113398 | Momentary Switch | - | 1.000 | $ 114.33 | ADD TO CART |
|
P10119784 | Flow Switch Paddle | - | 1.000 | $ 132.87 | ADD TO CART |
|
P10025408 | PRV 30 PSI | - | 1.000 | $ 595.34 | ADD TO CART |
|
P10122760 | PRV 60 PSI | - | 1.000 | $ 302.82 | ADD TO CART |
|
P10113580 | PRV 150 PSI | - | 1.000 | $ 139.05 | ADD TO CART |
|
P10125160 | Deliming Kit | - | 1.000 | $ 620.06 | ADD TO CART |
|
P10113568 | T & P Gauge 0-90 PSI | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10113618 | T & P Gauge 0-200 PSI | - | 1.000 | $ 96.82 | ADD TO CART |
|
P10132258 | Integral Pump 4.7 Impeller ** | - | 1.000 | $ 2,396.81 | ADD TO CART |
|
P10119916 | RTV Sealant 2.8 OZ | - | 1.000 | $ 167.89 | ADD TO CART |
|
P10113424 | RTV Sealant 10 OZ | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10113512 | Window Combustion Chamber | - | 1.000 | $ 70.04 | ADD TO CART |
|
P10000026 | Flame Sensor | - | 1.000 | $ 67.24 | ADD TO CART |
|
P10113620 | Ignitor | - | 1.000 | $ 101.97 | ADD TO CART |
|
P10119896 | Fiberfrax Insulation 1" Wide | - | 1.000 | $ 117.42 | ADD TO CART |
|
P10031982 | Sealant Tape (Gray) Specify Length (Not Shown) | - | 1.000 | $ 6.18 | ADD TO CART |
|
P10113582 | Remote Sensor for Low Water Cut-Off | - | 1.000 | $ 121.54 | ADD TO CART |
|
P10113548 | Low Water Cut Off PC Board | - | 1.000 | $ 432.60 | ADD TO CART |
|
P10025136 | Rear Exhaust Cover Panel | - | 1.000 | $ 159.65 | ADD TO CART |
| P10133800 | Burner Assy w/Burners | - | 1.000 | $ 6,914.39 | ADD TO CART | |
| P10133472 | Burner Mounting Assy | - | 1.000 | $ 881.68 | ADD TO CART | |
| P10024880 | Manifold Upper | - | 1.000 | $ 286.34 | ADD TO CART | |
| P10024892 | Manifold Lower | - | 1.000 | $ 694.22 | ADD TO CART | |
| P10031684 | Burner Orifice Nat.#35 | - | 23.000 | $ 6.18 | ADD TO CART | |
| P10024896 | Air Shutter Assembly (Left Hand) | - | 1.000 | $ 167.89 | ADD TO CART | |
| P10024898 | Air Shutter Assembly (Right Hand) | - | 1.000 | $ 167.89 | ADD TO CART | |
| P10024532 | Hose Duct 4" | - | 1.000 | $ 59.74 | ADD TO CART | |
| P10113684 | Damper | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10025902 | Filter Mounting Bracket | - | 1.000 | $ 57.68 | ADD TO CART | |
| P10025880 | Filter | - | 1.000 | $ 32.96 | ADD TO CART | |
| P10122752 | Main Valve Gas Manual A 2" | - | 1.000 | $ 267.80 | ADD TO CART | |
| P10134330 | Heat Exch Assy Cast Iron | - | 1.000 | $ 12,878.09 | ADD TO CART | |
| P10134284 | Heat Exch Assy Brass | - | 1.000 | $ 13,858.65 | ADD TO CART | |
| P10134572 | Heat Exch Assy Cast Iron w/Pump Hdr | - | 1.000 | $ 15,401.59 | ADD TO CART | |
| P10024926 | Heat Exch Assy Brass w/Pump Hdr | - | 1.000 | $ 15,227.52 | ADD TO CART | |
| P10024938 | Heat Exch Assy Cast Iron Cupro Nickel | - | 1.000 | $ 16,485.15 | ADD TO CART | |
| P10133628 | Heat Exch Assy Brass Cupro Nickel | - | 1.000 | $ 17,479.10 | ADD TO CART | |
| P10024956 | Heat Exch Assy Cast Iron w/Pump Hdr Cupro Nickel | - | 1.000 | $ 19,058.09 | ADD TO CART | |
| P10024968 | Heat Exch Assy Brass w/Pump Hdr Cupro Nickel | - | 1.000 | $ 18,881.96 | ADD TO CART | |
| P10130460 | Return Header Brass | - | 1.000 | $ 1,120.64 | ADD TO CART | |
| P10132226 | Return Pump Header Brass | - | 1.000 | $ 2,580.15 | ADD TO CART | |
| P10134476 | Tube Bundle | - | 1.000 | $ 9,604.75 | ADD TO CART | |
| P10134258 | Tube Bundle Cupro Nickel | - | 1.000 | $ 12,823.50 | ADD TO CART | |
| P10024980 | Heat Exchange Tube | - | 1.000 | $ 1,348.27 | ADD TO CART | |
| P10024992 | Heat Exchange Tube Cupro Nickel | - | 1.000 | $ 1,822.07 | ADD TO CART | |
| P10122768 | Stud Bolt Kit w/Pump Header | - | 1.000 | $ 231.75 | ADD TO CART | |
| P10131996 | Baffle Kit | - | 1.000 | $ 437.75 | ADD TO CART | |
| P10113600 | On/Off Switch | - | 1.000 | $ 39.14 | ADD TO CART | |
| P10153242 | Momentary Switch | - | 1.000 | $ 1.05 | ADD TO CART | |
| P10113608 | Terminal Block (4 Space) | - | 1.000 | $ 35.02 | ADD TO CART | |
| P10113610 | Terminal Block (6 Space) | - | 1.000 | $ 35.02 | ADD TO CART | |
| P10113612 | Terminal Block (7 Space) | - | 1.000 | $ 37.08 | ADD TO CART | |
| P10113614 | Terminal Block (12 Space) | - | 1.000 | $ 38.11 | ADD TO CART | |
| P10025222 | Lamp / Switch Mtg Panel | - | 1.000 | $ 96.82 | ADD TO CART | |
| P10025204 | Flue/Junction Box | - | 1.000 | $ 8,390.66 | ADD TO CART | |
| P10025234 | Switch Mtg Panel | - | 1.000 | $ 68.96 | ADD TO CART | |
| P10126968 | PRV 45 PSI | - | 1.000 | $ 386.25 | ADD TO CART | |
| P10025000 | PRV 75 PSI | - | 1.000 | $ 462.47 | ADD TO CART | |
| P10122764 | PRV 125 PSI | - | 1.000 | $ 249.26 | ADD TO CART | |
| P10113844 | Touch-Up Paint (Green) | - | 1.000 | $ 56.65 | ADD TO CART | |
|
P10113846 | Touch-Up Paint (Dark Gray) | - | 1.000 | $ 70.04 | ADD TO CART |
| P10030216 | Gas Valve Wire Harness CPW | - | 1.000 | $ 79.31 | ADD TO CART | |
| P10030320 | Flow Switch Wire Harness CPW | - | 1.000 | $ 66.95 | ADD TO CART | |
| P10030322 | Panel Switch Wire Harness CPW | - | 1.000 | $ 65.92 | ADD TO CART | |
| P10029954 | Air Pressure Switch Wire Harness CPW | - | 1.000 | $ 65.92 | ADD TO CART | |
| P10030152 | Time Delay Wire Harness CPW | - | 1.000 | $ 57.68 | ADD TO CART | |
| P10030154 | Blower Wire Harness for CPW | - | 1.000 | $ 71.07 | ADD TO CART | |
| P10030156 | Economaster Wire Harness CPW | - | 1.000 | $ 72.10 | ADD TO CART | |
| P10030212 | Safety Board Interface Wire Harness CPW | - | 1.000 | $ 115.36 | ADD TO CART | |
| P10030214 | Ignition Module Wire Harness CPW | - | 1.000 | $ 106.09 | ADD TO CART | |
| P10030240 | Stage Selection Wire Harness | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10030242 | Stage Jumper Wire Harness CPW | - | 1.000 | $ 62.83 | ADD TO CART | |
| P10133234 | Refractory Kit (All Panels) | - | 1.000 | $ 2,869.58 | ADD TO CART | |
| P10025008 | Refractory Front Panel (2 Panels) | - | 1.000 | $ 688.04 | ADD TO CART | |
| P10025020 | Jacket Top | - | 1.000 | $ 320.33 | ADD TO CART | |
| P10025032 | Jacket Top w/ Air Intake | - | 1.000 | $ 328.57 | ADD TO CART | |
| P10025040 | Upfront Control Panel (5 Indicator Lights) | - | 1.000 | $ 185.40 | ADD TO CART | |
| P10025048 | Upfront Control Panel (12 Indicator Lights) | - | 1.000 | $ 212.18 | ADD TO CART | |
| P10025056 | Upfront Control Panel w/ Window (5 Indicator Lights) | - | 1.000 | $ 259.56 | ADD TO CART | |
| P10025064 | Upfront Control Panel w/ Window (12 Indicator Lights) | - | 1.000 | $ 212.18 | ADD TO CART | |
| P10025076 | Upper Control Access Jacket Panel | - | 1.000 | $ 129.78 | ADD TO CART | |
| P10025088 | Upper Control Access Jacket Panel w/ Air Intake | - | 1.000 | $ 129.78 | ADD TO CART | |
| P10025100 | Lower Front Jacket Panel | - | 1.000 | $ 562.38 | ADD TO CART | |
| P10025112 | Lower Rear Jacket Panel | - | 1.000 | $ 142.14 | ADD TO CART | |
| P10025116 | Upper Side Jacket Panel | - | 1.000 | $ 160.68 | ADD TO CART | |
| P10025118 | Lower Corner Supports | - | 1.000 | $ 203.94 | ADD TO CART | |
| P10025144 | Intake Air Distribution Box | - | 1.000 | $ 917.73 | ADD TO CART | |
| P10025150 | Blower Intake Box | - | 1.000 | $ 80.34 | ADD TO CART | |
| P10025160 | Support Horizontal | - | 1.000 | $ 85.49 | ADD TO CART | |
| P10025164 | Support Vertical | - | 1.000 | $ 85.49 | ADD TO CART | |
| P10025166 | Gas Access Panel | - | 1.000 | $ 210.12 | ADD TO CART | |
| P10025200 | Flue Collector Top | - | 1.000 | $ 770.44 | ADD TO CART | |
| P10025120 | Access Panel | - | 1.000 | $ 136.99 | ADD TO CART | |
| P10025122 | Access Panel w/Pump | - | 1.000 | $ 104.03 | ADD TO CART | |
| P10023490 | Cover for Return Header Mounted Pump | - | 1.000 | $ 246.17 | ADD TO CART | |
| P10025128 | J Box Sheetmetal | - | 1.000 | $ 791.43 | ADD TO CART | |
| P10025780 | Flue Sleeve | - | 1.000 | $ 428.48 | ADD TO CART | |
| P10133122 | Combustion Chamber Rear Panel | - | 1.000 | $ 221.45 | ADD TO CART | |
| P10173891 | Outdoor Stack | - | 1.000 | $ 1,830.31 | ADD TO CART | |
| P10156267 | Intake Air Filter Box | - | 1.000 | $ 551.05 | ADD TO CART | |
| P10025482 | Filter | - | 1.000 | $ 58.71 | ADD TO CART | |
| P10029986 | Intake Air Collar Assy | - | 1.000 | $ 56.65 | ADD TO CART |
