Parts for Raypak, Inc. H3-992C:

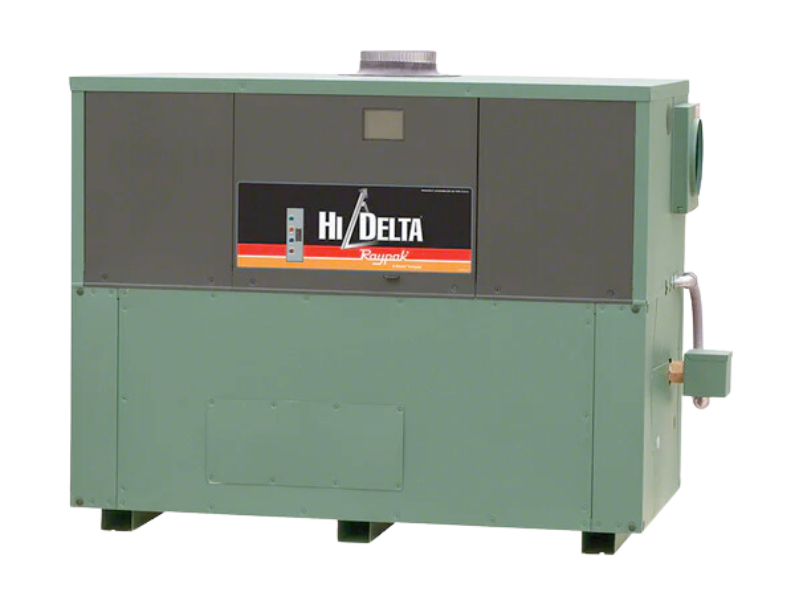

Hi-Delta, Heating System 2-Stage, 992C

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


194 Parts

Component Description Serial Qty Price
Part Image P10119854 Burner - 11.000 $ 155.53 ADD TO CART
Part Image P10119848 Seal Gasket - 1.000 $ 11.33 ADD TO CART
Part Image P10119820 Manual-Reset Adjustable High-Limit 240°F Max - 1.000 $ 472.77 ADD TO CART
Part Image P10119818 Auto-Reset Adjustable High-Limit 240°F Max - 1.000 $ 426.42 ADD TO CART
Part Image P10120142 PIM (Platform Ignition Module) Multi-Try - 1.000 $ 1,188.62 ADD TO CART
Part Image P10028628 Fuse 5 Amp (Fast Acting) - 1.000 $ 39.14 ADD TO CART
Part Image P10120094 PC Board VERSA IC - 1.000 $ 1,017.64 ADD TO CART
Part Image P10120040 Inlet Sensor (2-Wire) - 1.000 $ 94.76 ADD TO CART
Part Image P10028572 Outlet/Limit Sensor (4-Wire) - 1.000 $ 143.17 ADD TO CART
Part Image P10113752 System Water Sensor 10K - 1.000 $ 95.79 ADD TO CART
Part Image P10119822 Indirect Tank Aquastat Control B-65 - 1.000 $ 367.71 ADD TO CART
Part Image P10122804 Sensor Outdoor Air B-32 - 1.000 $ 143.17 ADD TO CART
Part Image P10122740 Flow Switch - 1.000 $ 435.69 ADD TO CART
Part Image P10000058 Flow Switch Paddle - 1.000 $ 192.61 ADD TO CART
Part Image P10113550 Switch Air Pressure (Blocked Vent) - 1.000 $ 242.05 ADD TO CART
Part Image P10113660 Switch Air Pressure Differential (Blower) - 1.000 $ 142.14 ADD TO CART
Part Image P10120096 LCD Display PC Board - 1.000 $ 460.41 ADD TO CART
Part Image P10130234 Blower Combustion Air (Left-Hand) - 1.000 $ 906.40 ADD TO CART
Part Image P10130236 Blower Combustion Air (Right-Hand) - 1.000 $ 906.40 ADD TO CART
Part Image P10026162 Air Shutter - 1.000 $ 70.04 ADD TO CART
Part Image P10024534 Hose Duct 6" (Truseal) - 1.000 $ 117.25 ADD TO CART
Part Image P10119894 Filter Media - 1.000 $ 62.83 ADD TO CART
Part Image P10113622 Valve Gas Manual A 3/4" - 1.000 $ 401.70 ADD TO CART
Part Image P10119832 Valve Gas Manual A 1" (Low Gas Press.) - 1.000 $ 179.22 ADD TO CART
Part Image P10113624 Bleedle Valve 1/4' - 1.000 $ 57.68 ADD TO CART
Part Image P10113626 Bleedle Valve 1/8" - 1.000 $ 43.26 ADD TO CART
Part Image P10122754 Natural Gas Valve ¾” Honeywell 601605 - 1.000 $ 800.31 ADD TO CART
Part Image P10122750 Propane Gas Valve ¾” Honeywell 601563 - 1.000 $ 569.59 ADD TO CART
Part Image P10122756 Propane Gas Valve ¾” RobertShaw 601604 - 1.000 $ 677.17 ADD TO CART
Part Image P10113560 Switch Low Gas Pressure w/o Bracket - 1.000 $ 353.29 ADD TO CART
Part Image P10119830 Switch High Gas Pressure w/o Bracket (Optional) - 1.000 $ 356.38 ADD TO CART
Part Image P10113668 Solenoid Gas Valve - 1.000 $ 522.21 ADD TO CART
Part Image P10130242 Return Header Cast Iron - 1.000 $ 772.50 ADD TO CART
Part Image P10131912 Return Pump Header Cast Iron - 1.000 $ 1,874.60 ADD TO CART
Part Image P10122766 Stud Bolt Kit - 1.000 $ 150.38 ADD TO CART
Part Image P10119858 Header Gasket - 1.000 $ 143.17 ADD TO CART
Part Image P10113570 Sensor Well - 1.000 $ 59.74 ADD TO CART
Part Image P10031488 Well Retaining Clip - 1.000 $ 2.06 ADD TO CART
Part Image P10125128 Transformer 100 VA - 1.000 $ 275.01 ADD TO CART
Part Image P10113698 Time Delay Contactor - 1.000 $ 180.80 ADD TO CART
Part Image P10113602 Automatic Shut Down Breaker Switch 30 AMP - 1.000 $ 124.63 ADD TO CART
Part Image P10113500 On/Off Switch Rocker - 1.000 $ 51.50 ADD TO CART
Part Image P10119868 Pump Contactor DPST 120V - 1.000 $ 150.38 ADD TO CART
Part Image P10113578 PRV 60 PSI - 1.000 $ 225.57 ADD TO CART
Part Image P10024330 PRV 75 PSI - 1.000 $ 227.63 ADD TO CART
Part Image P10119838 PRV 125 PSI - 1.000 $ 166.86 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1.000 $ 404.01 ADD TO CART
Part Image P10125160 Deliming Kit - 1.000 $ 785.89 ADD TO CART
Part Image P10113568 P Gauge 0-90 PSI - 1.000 $ 82.40 ADD TO CART
Part Image P10113618 T & P Gauge 0-200 PSI - 1.000 $ 118.45 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ - 1.000 $ 203.94 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ - 1.000 $ 143.17 ADD TO CART
Part Image P10031982 Sealant Tape (gray) Specify Length (Not Shown) - 1.000 $ 3.09 ADD TO CART
Part Image P10113666 Fiberfrax Insulation 1" Wide - 1.000 $ 107.12 ADD TO CART
Part Image P10119934 Intake Air Seal Gaskets (Truseal) - 1.000 $ 108.15 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1.000 $ 85.49 ADD TO CART
Part Image P10000026 Flame Sensor - 1.000 $ 74.16 ADD TO CART
Part Image P10113620 Igniter - 1.000 $ 124.63 ADD TO CART
Part Image P10025604 Sight Window Plug - 1.000 $ 143.17 ADD TO CART
Part Image P10113582 Remote Sensor (LWCO) - 1.000 $ 148.32 ADD TO CART
Part Image P10113548 Control PC Board (LWCO) - 1.000 $ 512.81 ADD TO CART
Part Image P10113398 Test/Reset Switch (LWCO) - 1.000 $ 138.02 ADD TO CART
Part Image P10133306 Inline Pumps (H) Bronze (Soft Water) - 1.000 $ 4,015.97 ADD TO CART
Part Image P10026072 Integral Return Header Mounted Pump (H) 4.0 Impeller - 1.000 $ 2,886.06 ADD TO CART
Part Image P10132172 Integral Return Header Mounted Pump (H) 4.25 Impeller - 1.000 $ 2,913.87 ADD TO CART
Part Image P10120070 Pump Flange Gasket Taco 1600 Series Gasket Round (2-Bolt) - 1.000 $ 216.96 ADD TO CART
Part Image P10026620 Left & Right Heat Exchanger Support - 1.000 $ 451.14 ADD TO CART
P10133496 Burner Assy w/Burners - 1.000 $ 2,660.49 ADD TO CART
P10026142 Burner Mounting Assy - 1.000 $ 1,862.24 ADD TO CART
P10026146 Manifold Upper - 1.000 $ 678.77 ADD TO CART
P10026158 Manifold Lower - 1.000 $ 655.08 ADD TO CART
P21149448 Burner Orifice (All Elevations) Natural Gas # 28 (Low Gas Pressure) - 11.000 $ 0.00 ADD TO CART
P21149449 Burner Orifice (All Elevations) Natural Gas # 33 - 11.000 $ 0.00 ADD TO CART
P21137803 Burner Orifice (All Elevations) Propane Gas 52 - 11.000 $ 197.76 ADD TO CART
P10028994 PIM (Platform Ignition Module) Single-Try CSD-1 - 1.000 $ 1,290.59 ADD TO CART
P10030944 Gateway BACnet Interface Module B-85 - 1.000 $ 2,632.68 ADD TO CART
P10030946 Gateway LonWorks Interface Module B-86 - 1.000 $ 3,893.40 ADD TO CART
P21149427 Rubber Tube 1/4" I.D. 4 FT (Not Shown) - 1.000 $ 0.00 ADD TO CART
P21149428 Rubber Tube 1/4" I.D. 8 FT (Not Shown) - 1.000 $ 0.00 ADD TO CART
P10026288 Intake Blower Flange 6" (Truseal) - 1.000 $ 77.25 ADD TO CART
P10026970 Intake Blower Flange 4" (Truseal) - 1.000 $ 216.30 ADD TO CART
P10024532 Hose Duct 4" (Truseal) - 1.000 $ 311.06 ADD TO CART
P10026968 Gas Valve Nat 1" (G-20 Low Gas Pressure) Robertshaw 601784 - 1.000 $ 1,361.66 ADD TO CART
P10027196 Vent Valve (G-2 & M15 Vent Valve Option) - 1.000 $ 5,455.91 ADD TO CART
P10027192 Solenoid Safety Shut Off Valve (G-2 Vent Valve Option) - 1.000 $ 3,136.35 ADD TO CART
P10027186 Motorized Safety Shut Off Actuator M-1(Optional) - 1.000 $ 2,788.21 ADD TO CART
P10128862 Gas Valve Body 11(Optional) - 1.000 $ 1,257.63 ADD TO CART
P10030812 Heat Exch Cast Iron - 1.000 $ 11,125.03 ADD TO CART
P10030824 Heat Exch Brass - 1.000 $ 12,749.34 ADD TO CART
P10030836 Heat Exch Cast Iron w/Pump Hdr - 1.000 $ 11,522.61 ADD TO CART
P10030842 Heat Exch Brass w/Pump Hdr - 1.000 $ 14,677.50 ADD TO CART
P10030848 Heat Exch Cast Iron Cupronickel - 1.000 $ 13,473.43 ADD TO CART
P10030542 Heat Exch Cast Iron Cupronickel with Steel Rod Baffles - 1.000 $ 12,752.43 ADD TO CART
P10030860 Heat Exch Brass Cupronickel - 1.000 $ 15,097.74 ADD TO CART
P10030472 Heat Exch Brass Cupronickel with Steel Rod Baffles - 1.000 $ 14,574.50 ADD TO CART
P10030872 Heat Exch Cast Iron w/Pump Hdr Cupronickel - 1.000 $ 13,670.16 ADD TO CART
P10030566 Heat Exch Cast Iron w/Pump Hdr Cupronickel & Steel Rods Baffles * - 1.000 $ 13,301.42 ADD TO CART
P10030878 Heat Exch Brass w/Pump Hdr Cupronickel - 1.000 $ 16,824.02 ADD TO CART
P10030496 Heat Exch Brass w/Pump Hdr Cupronickel & Steel Rods Baffles * - 1.000 $ 16,653.04 ADD TO CART
P10030884 Inlet/Outlet Header Cast Iron - 1.000 $ 880.65 ADD TO CART
P10030886 Inlet/Outlet Header Brass - 1.000 $ 1,996.14 ADD TO CART
P10130460 Return Header Brass - 1.000 $ 1,377.11 ADD TO CART
P10132226 Return Pump Header Brass - 1.000 $ 3,200.21 ADD TO CART
P10133740 Tube Bundle - 1.000 $ 9,369.91 ADD TO CART
P10133756 Tube Bundle Cupronickel - 1.000 $ 12,420.77 ADD TO CART
P10030514 Tube Bundle Cupronickel with Steel Rod Baffles - 1.000 $ 11,222.88 ADD TO CART
P10024972 Heat Exchange Tube - 1.000 $ 596.37 ADD TO CART
P10024984 Heat Exchange Tube Cupronickel - 1.000 $ 817.82 ADD TO CART
P10122768 Stud Bolt Kit w/Pump Header - 1.000 $ 288.40 ADD TO CART
P10119992 Pump Dry Contact Relay 120V - 1.000 $ 162.74 ADD TO CART
P10029464 PC Board Adapter Status Lights Wiring - 1.000 $ 123.60 ADD TO CART
P10000098 Indicator Lamp - 1.000 $ 126.69 ADD TO CART
P10113674 Terminal Block W Ground Lug - 1.000 $ 167.89 ADD TO CART
P10030888 Stage Control Sequencer 4-20mA - 1.000 $ 1,174.20 ADD TO CART
P10126966 PRV 30 PSI - 1.000 $ 1,325.61 ADD TO CART
P10024328 PRV 45 PSI - 1.000 $ 198.79 ADD TO CART
P10028872 T & P Gauge 0-230 PSI - 1.000 $ 124.63 ADD TO CART
P10026278 Flue Exhaust Tee Seal Gasket - 1.000 $ 399.64 ADD TO CART
P10119924 Flue Exhaust Adapter Seal Gasket - 1.000 $ 193.64 ADD TO CART
P10113844 Touch-up Paint Green - 1.000 $ 161.14 ADD TO CART
P10031952 Touch-up Paint Cool Dark Gray - 1.000 $ 70.04 ADD TO CART
P10026830 Gas Manifold Grommet 3/4" NPT - 1.000 $ 45.32 ADD TO CART
P10026832 Gas Manifold Grommet 2" NPT - 1.000 $ 67.98 ADD TO CART
P10028578 Switch/Decal Membrane - 1.000 $ 337.84 ADD TO CART
P10113400 Alarm Bell 3' - 1.000 $ 600.49 ADD TO CART
P10024124 Alarm Bell 4" - 1.000 $ 1,139.18 ADD TO CART
P10120150 Relay 3PDT 24 VAC (Alarm) - 1.000 $ 80.34 ADD TO CART
P10024332 Inline Pumps (H) Bronze (Soft Water) - 1.000 $ 4,575.26 ADD TO CART
P10133370 Inline Pumps (H) Bronze (Soft Water) - 1.000 $ 6,949.05 ADD TO CART
P10024336 Inline Pumps (H) Cast Iron (Soft Water /Standard) - 1.000 $ 3,531.87 ADD TO CART
P10133290 Inline Pumps (H) Cast Iron (Soft Water /Standard) - 1.000 $ 3,207.27 ADD TO CART
P10133342 Inline Pumps (H) Cast Iron (Soft Water /Standard) - 1.000 $ 4,296.13 ADD TO CART
P10132934 Refractory Kit (All Panels) - 1.000 $ 1,200.98 ADD TO CART
P10025002 Refractory Front Panels - 1.000 $ 502.64 ADD TO CART
P10026506 Refractory Blanket - 1.000 $ 390.48 ADD TO CART
P10026176 Jacket Top - 1.000 $ 722.03 ADD TO CART
P10030892 Upfront Control Panel w/LCD & Window - 1.000 $ 198.79 ADD TO CART
P10026198 Upper Control Access Jacket Panel - 1.000 $ 164.80 ADD TO CART
P10026210 Lower Front Jacket Panel - 1.000 $ 314.15 ADD TO CART
P10030894 Access Panel Igniter/Sensor - 1.000 $ 60.77 ADD TO CART
P10131400 Lower Rear Jacket Panel - 1.000 $ 1,128.88 ADD TO CART
P10026232 Upper Left Side Jacket Panel - 1.000 $ 496.46 ADD TO CART
P10026284 Upper Right Side Jacket Panel - 1.000 $ 119.48 ADD TO CART
P10026286 Air Intake Cover Panel - 1.000 $ 52.53 ADD TO CART
P10026234 Rear Flue Exhaust Cover Panel - 1.000 $ 153.47 ADD TO CART
P10026310 Flue Exhaust Cover Panel - 1.000 $ 115.36 ADD TO CART
P10026242 Lower Corner Supports Front and Rear - 1.000 $ 198.79 ADD TO CART
P10026608 Center Support Panel - 1.000 $ 658.17 ADD TO CART
P10026244 Intake Air Distribution Box (Truseal) - 1.000 $ 682.89 ADD TO CART
P10026248 Support Horizontal - 1.000 $ 99.91 ADD TO CART
P10026260 Support Assy Controls and Flue Exhaust - 1.000 $ 450.11 ADD TO CART
P10026262 Flue Collector Top - 1.000 $ 614.91 ADD TO CART
P10026272 Access Panel - 1.000 $ 294.58 ADD TO CART
P10026274 Access Panel w/Pump - 1.000 $ 487.19 ADD TO CART
P10023490 Cover for Integral Return Header Mounted Pump - 1.000 $ 830.18 ADD TO CART
P10030896 Control Box Sheetmetal - 1.000 $ 298.70 ADD TO CART
P10030898 Field-Wiring/Display Mounting Panel - 1.000 $ 154.50 ADD TO CART
P10026292 Filter Mounting Panel - 1.000 $ 173.04 ADD TO CART
P10128358 Intake Air Vent Hood - 1.000 $ 223.51 ADD TO CART
P10026534 Flue Exhaust Gasket Retainer - 1.000 $ 139.05 ADD TO CART
P10132006 Combustion Chamber Rear Panel - 1.000 $ 717.91 ADD TO CART
P10026810 Base Assy - 1.000 $ 497.49 ADD TO CART
P10027118 Rear Center Cover Panel - 1.000 $ 119.48 ADD TO CART
P10030682 Power In/Dry Contacts Panel - 1.000 $ 132.87 ADD TO CART
P10027380 Switch Mtg Panel - 1.000 $ 51.50 ADD TO CART
P10029226 Outdoor Stack - 1.000 $ 1,275.14 ADD TO CART
P10026294 Flue Exhaust Tee Cap - 1.000 $ 196.73 ADD TO CART
P10026302 Flue Exhaust Adapter - 1.000 $ 484.10 ADD TO CART
P10027108 Flue Exhaust Straight Pipe - 1.000 $ 895.07 ADD TO CART
P10030684 Wire Harnesses Diagnostic Panel Ribbon Cable 16-PIN - 1.000 $ 144.20 ADD TO CART
P10030686 Wire Harnesses Diagnostic Panel Ribbon Cable 10-PIN - 1.000 $ 113.30 ADD TO CART
P10030688 Bell & Alarm Wire Harness - 1.000 $ 126.69 ADD TO CART
P10030244 Gas Valve Wire Harness (Honeywell) - 1.000 $ 124.63 ADD TO CART
P10030900 Gas Valve Wire Harness (Honeywell) - 1.000 $ 535.60 ADD TO CART
P10030908 Gas Valve /Safety Board 24V Left-Side Wire Harness - 1.000 $ 111.24 ADD TO CART
P10030914 Gas Valve /Safety Board 24V Right-Side Wire Harness - 1.000 $ 95.79 ADD TO CART
P10030920 PIM HSI/Blower Wire Harness - 1.000 $ 139.05 ADD TO CART
P10030926 PIM HSI/Blower Left Side Wire Harness - 1.000 $ 77.25 ADD TO CART
P10030708 PIM 120V Power W/Pump Wire Harness - 1.000 $ 83.43 ADD TO CART
P10030710 PIM Power 24V Wire Harness - 1.000 $ 51.50 ADD TO CART
P10030712 Power In Wire Harness - 1.000 $ 101.97 ADD TO CART
P10030714 In/Out Sensor J-Box Wire Harness - 1.000 $ 75.19 ADD TO CART
P10030716 In/Out Sensor Cabinet Wire Harness - 1.000 $ 98.88 ADD TO CART
P10030718 Control Box 120V Wire Harness - 1.000 $ 76.22 ADD TO CART
P10029976 Versa IC Communication Cable - 1.000 $ 113.30 ADD TO CART
P10030720 Heater ID Wire Harness - 1.000 $ 57.68 ADD TO CART
P10030722 Field-Wiring Terminal Block 1 Wire Harness - 1.000 $ 100.94 ADD TO CART
P10030724 Field-Wiring Terminal Block 2 Wire Harness - 1.000 $ 79.31 ADD TO CART
P10030726 Control Signal Splitter Wire Harness - 1.000 $ 126.69 ADD TO CART
P10030728 High-Limit Manual Adjustable Wire Harness - 1.000 $ 124.63 ADD TO CART
P10030730 High-Limit Auto Adjustable Wire Harness - 1.000 $ 129.78 ADD TO CART
P10030732 Pump Power 120V Wire Harness - 1.000 $ 170.98 ADD TO CART
P10030734 Low Water Cut Off Wire Harness - 1.000 $ 162.74 ADD TO CART
P10030738 High Gas Pressure Switch Wire Harness - 1.000 $ 100.94 ADD TO CART
