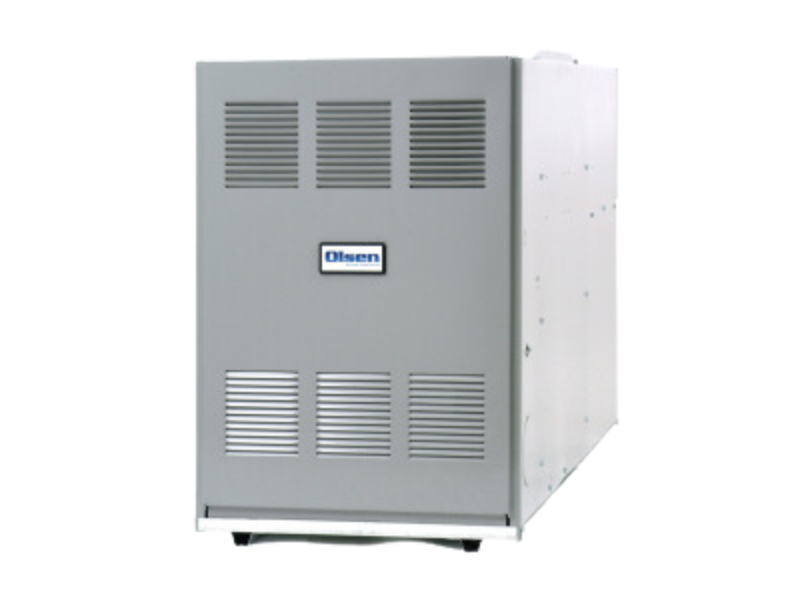

Parts for Olsen BCL-100ST:
Lowboy, BCL Oil Fired Warm Air Furnace - Beckett NX, 100ST
Manufacturer: Olsen
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
61 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10145603 | Blower Access Door | - | 1.000 | $ 93.44 | ADD TO CART |
|
P10044294 | Door Handle, PS-18 | - | 1.000 | $ 7.21 | ADD TO CART |
|
P10148244 | Flue Pipe Assembly | - | 1.000 | $ 91.22 | ADD TO CART |
|
P10054512 | Firepot Bracket Assembly | - | 1.000 | $ 6.18 | ADD TO CART |
|
P10125224 | Replacement Combustion Chamber | - | 1.000 | $ 214.24 | ADD TO CART |
|
P10054386 | Inspection Door Gasket | - | 1.000 | $ 5.15 | ADD TO CART |
|
P10045400 | Pouch Gasket | - | 1.000 | $ 7.21 | ADD TO CART |
|
P10044080 | Flue Pipe Gasket (2 per unit) | - | 1.000 | $ 5.15 | ADD TO CART |
|
P10054172 | Radiator Cleanout Cover Assembly | - | 1.000 | $ 41.20 | ADD TO CART |
|
P10114026 | Air Filter – 20 x 25 x 1 (Permanent) | - | 1.000 | $ 30.90 | ADD TO CART |
|
P10045450 | Fuse ABC 15 AMP Slow Blow | - | 1.000 | $ 6.18 | ADD TO CART |
|
P10043932 | Draft Regulator 6 IN. | - | 1.000 | $ 84.46 | ADD TO CART |
|
P10148900 | Solid State Ignitor France 10SAY-04 | - | 1.000 | $ 149.06 | ADD TO CART |
|
P10140093 | Flame Retention Head (F3) | - | 1.000 | $ 28.92 | ADD TO CART |
|
P10044208 | Motor Run Capacitor, 20 mfd at 370 VAC | - | 1.000 | $ 28.84 | ADD TO CART |
| P10169237 | Left Side Panel Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10169238 | Right Side Panel Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10169239 | Upper Rear Panel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10044382 | Blower Division Panel Assembly | - | 1.000 | $ 157.59 | ADD TO CART | |
| P10169240 | Base Panel Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10044264 | Inner Front Panel | - | 1.000 | $ 79.31 | ADD TO CART | |
| P10044280 | Filter Gasket | - | 1.000 | $ 6.18 | ADD TO CART | |
| P10169163 | Front Door Panel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10110876 | Logo Bezel | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10044288 | Logo Label | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10140094 | Top Front Panel | - | 1.000 | $ 16.55 | ADD TO CART | |
| P10169241 | Heat Exchanger Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10044062 | Top Front Baffle | - | 1.000 | $ 7.21 | ADD TO CART | |
| P10044052 | Inner Front Baffle | - | 1.000 | $ 9.27 | ADD TO CART | |
| P10044048 | Right Side Panel Baffle | - | 1.000 | $ 7.21 | ADD TO CART | |
| P10044306 | Oil Burner Mounting Plate Assembly | - | 1.000 | $ 15.45 | ADD TO CART | |
| P10045402 | Cleanout Cover Gasket | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10137800 | Casing Clean-Out Cover | - | 1.000 | $ 5.09 | ADD TO CART | |
| P10044046 | Junction Box | - | 1.000 | $ 13.39 | ADD TO CART | |
| P10169248 | Wire Harness Blower Direct Drive | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10169247 | Wire Harness Blower Belt Drive | - | 1.000 | $ 11.33 | ADD TO CART | |
| P10169249 | Wire Harness Fan AND Limit | - | 1.000 | $ 17.51 | ADD TO CART | |
| P10044128 | Fan Centre Assembly | - | 1.000 | $ 155.53 | ADD TO CART | |
| P10044126 | Replacement Relay, R8228B1012B | - | 1.000 | $ 93.73 | ADD TO CART | |
| P10043968 | Fan AND Limit Control, L6064A, 11 1/2 IN., 230F | - | 1.000 | $ 277.07 | ADD TO CART | |
| P10044156 | Fuse Holder HKP-HH | - | 1.000 | $ 19.57 | ADD TO CART | |
| P10169250 | Fan AND Limit Support / Insulation Retainer | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10169251 | Side Panel Insulation Retainer (2 per unit) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10131122 | Beckett Oil Burner, AF65XN, (0.75, 0.85, 1.00 GPH) Wired for Fan and Limit Control | - | 1.000 | $ 1,186.56 | ADD TO CART | |
| P10151681 | Burner Motor 1/7 HP 3450 RPM PSC | - | 1.000 | $ 190.22 | ADD TO CART | |
| P10044484 | Beckett Clean-Cut Oil Pump A2EA6520 | - | 1.000 | $ 202.91 | ADD TO CART | |
| P10169116 | Primary Combustio Control R7184B | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10125186 | Air Tube Combination AF65XN | - | 1.000 | $ 134.93 | ADD TO CART | |
| P10045406 | Nozzle 0.80/80 deg A | - | 1.000 | $ 20.60 | ADD TO CART | |
| P10044122 | Blower Assembly Complete Direct Drive 1/2 hp | - | 1.000 | $ 621.09 | ADD TO CART | |
| P10169255 | Blower Housing and Wheel, DCT1220-1104 DD | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10129492 | Blower Wheel, 12-11 DD | - | 1.000 | $ 147.29 | ADD TO CART | |
| P10169256 | Blower Motor 1 HP 3-Speed | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10043956 | Motor Mounting Band TR5868 | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10043958 | Motor Mount Arms – 12-11 DD Blower (3 per Unit) | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10044212 | Capacitor Strap | - | 1.000 | $ 6.18 | ADD TO CART | |
| P10169257 | Capacitor Insulator | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10044084 | Blower Base Feet LH | - | 1.000 | $ 11.33 | ADD TO CART | |
| P10044082 | Blower Base Feet RH | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10044100 | Blower Base Feet Rubber Grommet (4 required) | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10044124 | Terminal Block EE8-201 | - | 1.000 | $ 9.27 | ADD TO CART |
