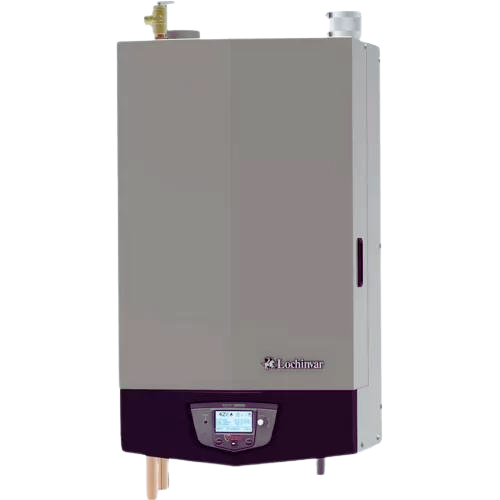

Parts for Lochinvar WHN110PM:
Knight, Fire Tube Wall Mount, Hydronic Boiler, Natural Gas, 110, Pump
Manufacturer: Lochinvar
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
59 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10150855 | LOW VOLTAGE CONNECTION BOARD | - | 1.000 | $ 203.02 | ADD TO CART |
|
P10155385 | USER INTERFACE CONTROL | - | 1.000 | $ 529.00 | ADD TO CART |
|
P10143028 | INLET SENSOR | - | 1.000 | $ 35.67 | ADD TO CART |
|
P10143348 | OUTLET SENSOR/ HIGH LIMIT | - | 1.000 | $ 53.48 | ADD TO CART |
|
P10157318 | FAN ASSEMBLY, WH55-155 | - | 1.000 | $ 713.71 | ADD TO CART |
|
P10137764 | BLOWER GASKET | - | 1.000 | $ 39.57 | ADD TO CART |
|
P10137267 | GASKET, VENTURI | - | 1.000 | $ 26.29 | ADD TO CART |
|
P10143969 | GAS VALVE SWITCH | - | 1.000 | $ 78.27 | ADD TO CART |
|
P10140671 | FLAME SENSOR W/ GASKET | - | 1.000 | $ 31.33 | ADD TO CART |
|
P10137283 | GASKET, FLAME SENSOR | - | 1.000 | $ 10.42 | ADD TO CART |
|
P10141905 | IGNITER W/ GASKET | - | 1.000 | $ 66.06 | ADD TO CART |
|
P10137282 | GASKET, IGNITER | - | 1.000 | $ 54.61 | ADD TO CART |
|
P10150127 | SIGHT GLASS W/ GASKET | - | 1.000 | $ 229.05 | ADD TO CART |
|
P10144336 | FLUE SENSOR | - | 1.000 | $ 68.75 | ADD TO CART |
|
P10143651 | TRANSFORMER, 24V, 40VA | - | 1.000 | $ 59.20 | ADD TO CART |
|
P10141374 | PRESSURE SWITCH | - | 1.000 | $ 35.90 | ADD TO CART |
|
P10145116 | CONDENSATE TRAP ASSEMBLY | - | 1.000 | $ 68.81 | ADD TO CART |
|
P10150285 | GASKET SET (BURNER, HEAT EXCHANGER, SIGHT GLASS), WH110 | - | 1.000 | $ 244.28 | ADD TO CART |
|
P10140913 | HARNESS, ELECTRODE, SPARK | - | 1.000 | $ 40.24 | ADD TO CART |
|
P10140249 | CABLE, RIBBON | - | 1.000 | $ 20.26 | ADD TO CART |
|
P10137042 | STRIKE, DOOR | - | 1.000 | $ 11.92 | ADD TO CART |
|
P10139108 | BULBWELL, 1/4 IN. | - | 1.000 | $ 20.53 | ADD TO CART |
|
P10141517 | SYSTEM SENSOR | - | 1.000 | $ 28.93 | ADD TO CART |
|
P10145578 | KIT, SYSTEM SENSOR | - | 1.000 | $ 65.97 | ADD TO CART |
|
P10137535 | 3.15 AMP | - | 1.000 | $ 11.61 | ADD TO CART |
|
P10137462 | 5 AMP | - | 1.000 | $ 15.71 | ADD TO CART |
|
P10151979 | FLOW SWITCH | - | 1.000 | $ 201.78 | ADD TO CART |
|
P10145227 | OUTDOOR AIR SENSOR | - | 1.000 | $ 154.57 | ADD TO CART |
|
P10144753 | GAUGE TRIOMETER, 75# PSI | - | 1.000 | $ 66.88 | ADD TO CART |
|
P10138858 | LP CONVERSION KIT, WH110 | - | 1.000 | $ 37.31 | ADD TO CART |
| P10159292 | HEAT EXCHANGER, WH110 | - | 1.000 | $ 3,131.34 | ADD TO CART | |
| P10156841 | INTEGRATED CONTROL, WH55 -110 | - | 1.000 | $ 911.67 | ADD TO CART | |
| P10156846 | HIGH ALTITUDE INTEGRATED CONTROL, WH55 -110 | - | 1.000 | $ 864.37 | ADD TO CART | |
| P10154983 | GAS VALVE ASSEMBLY, WH110 | - | 1.000 | $ 871.87 | ADD TO CART | |
| P10147280 | AIR INLET KIT | - | 1.000 | $ 73.68 | ADD TO CART | |
| P10156628 | BURNER W/ GASKET, WH110 | - | 1.000 | $ 507.60 | ADD TO CART | |
| P10150689 | HEAT EXCHANGER ACCESS DOOR, WH110 | - | 1.000 | $ 472.95 | ADD TO CART | |
| P10147501 | BURNER PLATE, INSULATION, DOOR, WH110 | - | 1.000 | $ 135.24 | ADD TO CART | |
| P10142581 | DISPLAY BEZEL | - | 1.000 | $ 41.74 | ADD TO CART | |
| P10143970 | RELIEF VALVE 30 PSI | - | 1.000 | $ 64.93 | ADD TO CART | |
| P10152604 | FLUE CONNECTION 3 IN. | - | 1.000 | $ 236.60 | ADD TO CART | |
| P10137272 | KNOB, FLUTED W/ SKIRT | - | 1.000 | $ 17.85 | ADD TO CART | |
| P10139102 | GASKET, SIGHT GLASS TOP | - | 1.000 | $ 17.67 | ADD TO CART | |
| P10144222 | COUPLING, AIR INLET | - | 1.000 | $ 49.46 | ADD TO CART | |
| P10153464 | OUTLET WATER PIPE 1 IN. | - | 1.000 | $ 286.06 | ADD TO CART | |
| P10154920 | INLET WATER PIPE 1 IN. | - | 1.000 | $ 393.00 | ADD TO CART | |
| P10142727 | MIRROR, SIGHT GLASS | - | 1.000 | $ 119.87 | ADD TO CART | |
| P10140046 | HARNESS, ELECTRODE, FLAME SENSE | - | 1.000 | $ 22.37 | ADD TO CART | |
| P10137486 | CATCH, DOOR | - | 1.000 | $ 22.18 | ADD TO CART | |
| P10142910 | WALL MOUNT BRACKET | - | 1.000 | $ 37.81 | ADD TO CART | |
| P10137263 | 0.8 AMP | - | 1.000 | $ 10.20 | ADD TO CART | |
| P10153778 | MRLWCO WITH TEST | - | 1.000 | $ 351.25 | ADD TO CART | |
|
P10150418 | NEUTRALIZER KIT | - | 1.000 | $ 178.80 | ADD TO CART |
| P10149554 | ALARM BELL | - | 1.000 | $ 140.61 | ADD TO CART | |
| P10154991 | PUMP, WH55-155 | - | 1.000 | $ 403.99 | ADD TO CART | |
| P10145652 | JACKET, TOP, WH110 AND 155 | - | 1.000 | $ 65.50 | ADD TO CART | |
| P10153218 | JACKET, FRONT DOOR ASSEMBLY, WH110-285 | - | 1.000 | $ 365.09 | ADD TO CART | |
| P10148497 | JACKET, RIGHT SIDE ASSEMBLY, WH110-285 | - | 1.000 | $ 101.04 | ADD TO CART | |
| P10147115 | JACKET, LEFT SIDE, WH110-285 | - | 1.000 | $ 85.55 | ADD TO CART |
