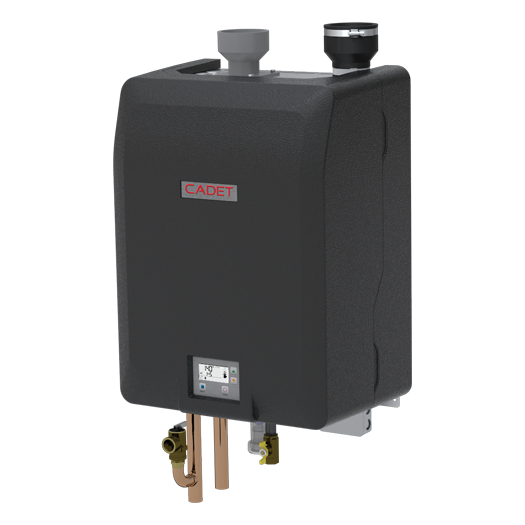

Parts for Lochinvar CCL120PM:
Cadet , Combi, Propane, 120, Pump
Manufacturer: Lochinvar
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
66 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10155907 | Heat Exchanger - Brazed Plate | - | 1.000 | $ 686.24 | ADD TO CART |
|
P10150808 | CONTROL BOARD, USER INTERFACE | - | 1.000 | $ 201.66 | ADD TO CART |
|
P10143348 | SENSOR, OUTLET | - | 1.000 | $ 53.35 | ADD TO CART |
|
P10143028 | SENSOR, INLET | - | 1.000 | $ 41.80 | ADD TO CART |
|
P10144215 | SENSOR, FLUE | - | 1.000 | $ 76.21 | ADD TO CART |
|
P10143486 | SENSOR, DHW | - | 1.000 | $ 54.77 | ADD TO CART |
|
P10145227 | SENSOR, OUTDOOR AIR | - | 1.000 | $ 95.61 | ADD TO CART |
|
P10143651 | TRANSFORMER - 24V, 40VA | - | 1.000 | $ 59.11 | ADD TO CART |
|
P10137764 | GASKET, BLOWER | - | 1.000 | $ 38.93 | ADD TO CART |
|
P10152509 | FLOW SWITCH W/ BRASS TEE | - | 1.000 | $ 282.57 | ADD TO CART |
|
P10146956 | FLUE CONNECTION - 3 in. | - | 1.000 | $ 98.45 | ADD TO CART |
|
P10138649 | GASKET, WATER CONNECTION | - | 1.000 | $ 13.22 | ADD TO CART |
|
P10144753 | GAUGE, TEMP AND PRESSURE - 75# | - | 1.000 | $ 67.77 | ADD TO CART |
|
P10137886 | TUBING, SILICONE - 1/8 in. (ORDER BY THE FOOT) | - | 1.000 | $ 6.35 | ADD TO CART |
|
P10140249 | CABLE, RIBBON | - | 1.000 | $ 21.63 | ADD TO CART |
|
P10139825 | HARNESS, GAS VALVE | - | 1.000 | $ 14.42 | ADD TO CART |
|
P10142654 | HARNESS, CONNECTION BOARD | - | 1.000 | $ 43.25 | ADD TO CART |
| P10163673 | Heat Exchanger Assembly | - | 1.000 | $ 2,829.10 | ADD TO CART | |
| P10163674 | CONNECTION BOARD | - | 1.000 | $ 125.99 | ADD TO CART | |
| P10154582 | CONTROL BOARD, MAIN | - | 1.000 | $ 556.49 | ADD TO CART | |
| P10141264 | LABEL, CONTROL OVERLAY | - | 1.000 | $ 24.40 | ADD TO CART | |
| P10155724 | FAN ASSEMBLY W/ VENTURI AND GASKET | - | 1.000 | $ 598.75 | ADD TO CART | |
| P10163675 | COUPLING, VENTURI TO VALVE - RUBBER | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10152838 | GAS VALVE ASSEMBLY W/ GASKET | - | 1.000 | $ 256.96 | ADD TO CART | |
| P10143822 | SWITCH, GAS VALVE | - D15 | 1.000 | $ 45.62 | ADD TO CART | |
| P10144128 | SWITCH, GAS VALVE | E15 - | 1.000 | $ 48.38 | ADD TO CART | |
| P10137158 | GASKET, GAS VALVE O-RING | - | 1.000 | $ 23.07 | ADD TO CART | |
| P10146165 | PIPE, GAS - 1/2 in. | - | 1.000 | $ 72.14 | ADD TO CART | |
| P10144663 | KIT, AIR INLET | - | 1.000 | $ 68.61 | ADD TO CART | |
| P10163676 | HEAT EXCHANGER ACCESS DOOR KIT W/ BURNER | - | 1.000 | $ 538.88 | ADD TO CART | |
| P10146748 | INSULATION, BURNER DOOR | - | 1.000 | $ 113.89 | ADD TO CART | |
| P10140327 | GASKET, BURNER DOOR - RUBBER | - | 1.000 | $ 106.68 | ADD TO CART | |
| P10144425 | IGNITOR W/ GASKET | - | 1.000 | $ 51.14 | ADD TO CART | |
| P10137841 | GASKET, IGNITOR | - | 1.000 | $ 8.17 | ADD TO CART | |
| P10144423 | FLAME SENSOR W/ GASKET | - | 1.000 | $ 51.14 | ADD TO CART | |
| P10137840 | GASKET, FLAME SENSOR | - | 1.000 | $ 8.17 | ADD TO CART | |
| P10144222 | COUPLING, AIR INLET W/ CLIPS - 2 in. TO 3 in. | - | 1.000 | $ 49.46 | ADD TO CART | |
| P10137590 | COUPLING, VENTURI | - | 1.000 | $ 4.24 | ADD TO CART | |
| P10138414 | ADAPTER, HEX FLUE - 2 in. | - | 1.000 | $ 13.22 | ADD TO CART | |
| P10141516 | PIPE, AIR INLET | - | 1.000 | $ 26.52 | ADD TO CART | |
| P10148094 | KIT, CONDENSATE TRAP | - | 1.000 | $ 118.50 | ADD TO CART | |
| P10144346 | TUBING, STAINLESS STEEL FLEX W/ GASKETS - 3/4 in. X 16 in. | - | 1.000 | $ 100.44 | ADD TO CART | |
| P10163677 | PIPE ASSEMBLY, WATER INLET – COMBI | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10163678 | PIPE ASSEMBLY, WATER INLET – COMBI | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10163679 | PIPE ASSEMBLY, WATER OUTLET – COMBI | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10150105 | PIPE ASSEMBLY, WATER OUTLET – COMBI | - | 1.000 | $ 148.53 | ADD TO CART | |
| P10163680 | GASKET, WATER CONNECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10141263 | Adapter - Union with Gasket - 3/4 in. | - | 1.000 | $ 24.40 | ADD TO CART | |
| P10142942 | Adapter - Union with Gasket - 1/2 in. | - | 1.000 | $ 38.19 | ADD TO CART | |
| P10140149 | CLIP, WATER CONNECTION | - | 1.000 | $ 16.97 | ADD TO CART | |
| P10163681 | CLIP, WATER CONNECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10143970 | RELIEF VALVE - 30# | - | 1.000 | $ 63.43 | ADD TO CART | |
| P10163682 | SCREEN, AIR INLET - 3 in. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10137159 | PIPE, CONDENSATE - 3/4 in. | - | 1.000 | $ 2.12 | ADD TO CART | |
| P10163683 | HOSE, CONDENSATE | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10138605 | TEE, HOSE MENDER - 3/16 in. | - | 1.000 | $ 11.53 | ADD TO CART | |
| P10163684 | KIT, INSTALL | - | 1.000 | $ 101.04 | ADD TO CART | |
| P10142201 | BRACKET, WALL MOUNT - TOP | - | 1.000 | $ 37.42 | ADD TO CART | |
| P10144944 | BRACKET, WALL MOUNT - BOTTOM | - | 1.000 | $ 57.29 | ADD TO CART | |
| P10140916 | HARNESS, SPARK ELECTRODE | - | 1.000 | $ 31.73 | ADD TO CART | |
| P10139209 | HARNESS, FLAME SENSOR ELECTRODE | - | 1.000 | $ 30.28 | ADD TO CART | |
| P10163685 | HARNESS, UNIT | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10163686 | HARNESS, POWER | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10144945 | JACKET, COVER | - | 1.000 | $ 108.37 | ADD TO CART | |
| P10142457 | JACKET, COVER - DHW BOTTOM | - | 1.000 | $ 33.95 | ADD TO CART | |
| P10154173 | PUMP W/ GASKETS | - | 1.000 | $ 392.93 | ADD TO CART |
