Parts for Lochinvar CBN1795:

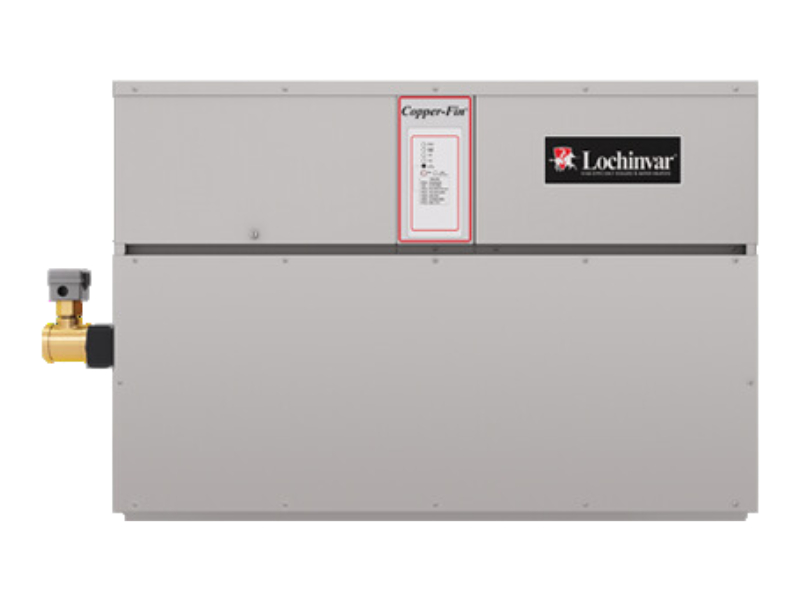

CopperFin, Hydronic Heater, Natural Gas, 1795
Manufacturer: Lochinvar
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
53 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10149307 | MAIN BURNER, ALL | A950000 - | 17.000 | $ 118.44 | ADD TO CART |
|
P10149547 | MAIN BURNER W/COMPRESSION FITTING, ALL | A950000 - | 1.000 | $ 173.84 | ADD TO CART |
|
P10149548 | MAIN BURNER W/BARBED FITTING, ALL | A950000 - | 2.000 | $ 157.08 | ADD TO CART |
|
P10154946 | VALVE, GAS NAT., W/NIPPLES, ALL | A950000 - | 5.000 | $ 467.77 | ADD TO CART |
|
P10144753 | TEMPERATURE AND PRESSURE GAUGE, ALL CB | A950000 - | 1.000 | $ 66.88 | ADD TO CART |
|
P10140654 | TERMINAL STRIP, 8 POLE, ALL | A950000 - | 1.000 | $ 20.05 | ADD TO CART |
|
P10152889 | PRESSURE SWITCH, BLOCKED FLUE AND LOW AIR, ALL | A950000 - | 1.000 | $ 286.39 | ADD TO CART |
|
P10148803 | PRESSURE SWITCH, LOW AIR, ALL | A950000 - | 1.000 | $ 142.14 | ADD TO CART |
|
P10156864 | TRANSFORMER 150V.A., ALL | A950000 - | 1.000 | $ 671.05 | ADD TO CART |
|
P10153981 | SWITCH, FLOW OUTDOOR, ALL CB/CW | A950000 - | 1.000 | $ 416.27 | ADD TO CART |
|
P10151979 | SWITCH, FLOW INDOOR, ALL CB/CW | A950000 - | 1.000 | $ 201.78 | ADD TO CART |
|
P10146972 | HOT SURFACE IGNITOR, ALL | A950000 - | 1.000 | $ 109.06 | ADD TO CART |
|
P10157284 | IGNITION MODULE ASSEMBLY, ALL | A950000 - | 1.000 | $ 693.80 | ADD TO CART |
|
P10149693 | RELAY, POWER 120V, ALL | A950000 - | 1.000 | $ 166.98 | ADD TO CART |
|
P10147861 | RELAY 24V, ALL | A950000 - | 1.000 | $ 45.90 | ADD TO CART |
|
P10151934 | TIME DELAY RELAY, ALL | A950000 - | 1.000 | $ 209.37 | ADD TO CART |
|
P10142427 | WIRING HARNESS / SHORTING PLUG, ALL | A950000 - | 1.000 | $ 7.34 | ADD TO CART |
|
P10144870 | CIRCUIT BREAKER 7 AMP, ALL | A950000 - | 1.000 | $ 66.75 | ADD TO CART |
|
P10145878 | SWITCH, POOL HEATER PRESSURE, ALL | A950000 - | 1.000 | $ 74.07 | ADD TO CART |
|
P10155164 | MANUAL RESET HIGH LIMIT, ALL | A950000 - | 1.000 | $ 514.63 | ADD TO CART |
|
P10139194 | GASKET, HEAT SHIELD, ALL | A950000 - | 1.000 | $ 21.88 | ADD TO CART |
|
P10142053 | FRAME END 2 PER UNIT, ALL | A950000 - | 1.000 | $ 35.10 | ADD TO CART |
|
P10158029 | FAN ASSEMBLY, ALL | A950000 - | 1.000 | $ 1,270.85 | ADD TO CART |
|
P10142698 | LIGHT, AMBER 28V, ALL | A950000 - | 1.000 | $ 35.28 | ADD TO CART |
|
P10142057 | LIGHT, AMBER 120V, TRIAL | G967041 - | 1.000 | $ 36.53 | ADD TO CART |
|
P10142058 | LIGHT, RED 24V, ALL | A950000 - | 1.000 | $ 35.87 | ADD TO CART |
|
P10142729 | LIGHT, GREEN 24V, ALL | A950000 - | 1.000 | $ 63.92 | ADD TO CART |
|
P10140910 | SWITCH, ROCKER, ALL | A950000 - | 1.000 | $ 27.99 | ADD TO CART |
|
P10142064 | SIGHT GLASS AND GASKET, ALL | A950000 - | 1.000 | $ 93.27 | ADD TO CART |
|
P10149443 | RELIEF VALVE, PRESSURE ONLY, CB | A950000 - | 1.000 | $ 201.69 | ADD TO CART |
|
P10140912 | WELL, THERMOSTAT, ALL | A950000 - | 1.000 | $ 52.48 | ADD TO CART |
| P10159571 | BURNER KIT FOR 1795 | A950000 - | 1.000 | $ 2,083.06 | ADD TO CART | |
| P10137040 | ORIFICE, NAT., ALL | A950000 - | 20.000 | $ 21.32 | ADD TO CART | |
| P10154829 | THERMOSTAT, OPERATOR, ALL CB/CW/CS | A950000 - | 1.000 | $ 260.65 | ADD TO CART | |
| P10163601 | THERMOSTAT, HI LIMIT, ALL CB/CS | A950000 - | 1.000 | $ 0.00 | ADD TO CART | |
| P10164648 | CIRCUIT BREAKER, ALL | A950000 - | 1.000 | $ 0.00 | ADD TO CART | |
| P10148451 | PRESSURE SWITCH, GAS, ALL | A950000 - | 1.000 | $ 74.70 | ADD TO CART | |
| P10161357 | HEAT EXCHANGER | A950000 - | 1.000 | $ 13,768.35 | ADD TO CART | |
| P10142425 | V-BAFFLE 9 PER UNIT, 1795 | A950000 - | 1.000 | $ 43.54 | ADD TO CART | |
| P10144231 | FRAME RUNNER 2 PER UNIT, 1795 | A950000 - | 1.000 | $ 48.90 | ADD TO CART | |
| P10152632 | LOCH-HEAT TILE, TOP RIGHT SIDE, 1795-2065 | A950000 - | 1.000 | $ 131.89 | ADD TO CART | |
| P10155368 | LOCH-HEAT TILE, TOP MIDDLE, 1795-2065 | A950000 - | 1.000 | $ 509.70 | ADD TO CART | |
| P10155026 | LOCH-HEAT TILE, TOP LEFT SIDE, 1795 | A950000 - | 1.000 | $ 489.85 | ADD TO CART | |
| P10155532 | LOCH-HEAT TILE, BOTTOM RIGHT, 1435-2065 | A950000 - | 1.000 | $ 450.48 | ADD TO CART | |
| P10154899 | LOCH-HEAT TILE, BOTTOM LEFT, 1795 | A950000 - | 1.000 | $ 434.23 | ADD TO CART | |
| P10153288 | LOCH-HEAT TILE, BACK RIGHT, 1435-2065 | A950000 - | 1.000 | $ 324.73 | ADD TO CART | |
| P10154931 | LOCH-HEAT TILE, BACK LEFT, 1795 | A950000 - | 1.000 | $ 340.09 | ADD TO CART | |
| P10155840 | LOCH-HEAT TILE, FRONT DOOR RIGHT, 1795 | A950000 - | 1.000 | $ 413.15 | ADD TO CART | |
| P10155841 | LOCH-HEAT TILE, FRONT DOOR LEFT, 1795 | A950000 - | 1.000 | $ 423.95 | ADD TO CART | |
| P10150161 | LOCH-HEAT TILE, FRONT HEAD SIDE, ALL | A950000 - | 1.000 | $ 121.48 | ADD TO CART | |
| P10150162 | LOCH-HEAT TILE, REAR HEAD SIDE, ALL | A950000 - | 1.000 | $ 96.57 | ADD TO CART | |
| P10143640 | LOCH-HEAT TILE, REAR HEAD SPACER STRIP, ALL | A950000 - | 1.000 | $ 32.13 | ADD TO CART | |
| P10157917 | GAS COCK 2, ALL | A950000 - | 1.000 | $ 1,009.24 | ADD TO CART |
