Parts for Laars Heating Systems* MT2V1000NACK1PXH:

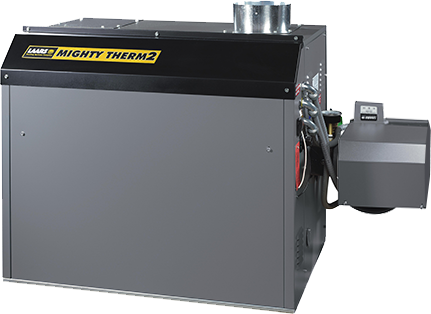

MightyTherm2, Volume Water, 1000, Natural Gas, 0-10,000', In/Out, 2-Stage, First, Glass-Lined Cast Iron, Cu-Nickel, Bronze Trim (std MT2V, opt MT2H), Standard, Pump Mounted - Hard Water (MT2V only)
Manufacturer: Laars Heating Systems*
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
67 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10156747 | BLOWER,FORCED DRAFT, BB | - | 1.000 | $ 1,096.09 | ADD TO CART |
|
P10016660 | BURNER TRAY, 4 PORT | - | 3.000 | $ 724.08 | ADD TO CART |
|
P10157845 | CASTING,PUMP VOLUTE,ASME | - | 1.000 | $ 2,031.93 | ADD TO CART |
|
P10015340 | CONTROL,HI LIMIT,100-200F | - | 1.000 | $ 531.75 | ADD TO CART |
|
P10019798 | GASKET BURNER 4 PORT | - | 3.000 | $ 16.51 | ADD TO CART |
|
P10008730 | GASKET, CUT, WTR BARRIER | - | 1.000 | $ 20.94 | ADD TO CART |
|
P10019700 | GASKET, FLANGE | - | 2.000 | $ 17.09 | ADD TO CART |
|
P10019726 | GASKET, HEADER 15.9" LONG | - | 2.000 | $ 57.59 | ADD TO CART |
|
P10019880 | GASKET,1x1/16,FIBERGLASS | - | 76.000 | $ 3.60 | ADD TO CART |
|
P10019816 | GASKET,U-CHANNEL,1/4x3/16 | - | 8.000 | $ 3.40 | ADD TO CART |
|
P10147640 | GAUGE,TEMP/PRESS,230 PSI | - | 1.000 | $ 168.04 | ADD TO CART |
|
P10010182 | IGNITER GASKET | - | 2.000 | $ 15.05 | ADD TO CART |
|
P10146921 | IGNITER, HOT SURFACE | - | 2.000 | $ 160.50 | ADD TO CART |
|
P10016664 | MNFLD,GAS,LWR,4 PORT,RT | - | 1.000 | $ 231.38 | ADD TO CART |
|
P10016662 | MNFLD,GAS,LWR,4PORT,LEFT | - | 1.000 | $ 188.39 | ADD TO CART |
|
P10020456 | O-RING,15/16"DIA,3/32"WD | - | 5.000 | $ 4.09 | ADD TO CART |
|
P10016670 | ORIFICE TL | - | 8.000 | $ 35.55 | ADD TO CART |
|
P10144363 | SWITCH,TOGGLE,DPDT,125VAC | - | 1.000 | $ 143.42 | ADD TO CART |
|
P10143902 | SWITCH,TOGGLE,DPDT,250VAC | - | 1.000 | $ 126.51 | ADD TO CART |
|
P10151650 | THERMOSTAT, 2 STAGE 130F | - | 1.000 | $ 506.27 | ADD TO CART |
|
P10020292 | TILE, BOTTOM, LEFT | - | 2.000 | $ 130.80 | ADD TO CART |
|
P10020246 | TILE, LEFT, NO SIGHT HOLE | - | 1.000 | $ 47.06 | ADD TO CART |
|
P10020280 | TILE, REAR, LEFT | - | 2.000 | $ 97.49 | ADD TO CART |
|
P10020244 | TILE, RIGHT, W/SIGHT HOLE | - | 1.000 | $ 71.08 | ADD TO CART |
|
P10020282 | TILE,FRONT,21.75L,5 HOLES | - | 1.000 | $ 84.24 | ADD TO CART |
|
P10020286 | TILE,FRONT,28.75L,7 HOLES | - | 1.000 | $ 116.24 | ADD TO CART |
|
P10015386 | TRANSFORMER,120/24V,150VA | - | 1.000 | $ 247.39 | ADD TO CART |
|
P10150179 | VALVE,GAS,DIRECT IGNITION | - | 2.000 | $ 328.45 | ADD TO CART |
|
P10145252 | WELL,IMMERSION,3/8" BULB | - | 2.000 | $ 135.75 | ADD TO CART |
| P10160713 | ASSY,HX,10 TUBE,CU-NI | - | 1.000 | $ 16,410.55 | ADD TO CART | |
| P21136897 | CASTING, IN/OUT COVER, RA | - | 1.000 | $ 885.12 | ADD TO CART | |
| P10149164 | FILTER, AIR, VENTURI | - | 1.000 | $ 272.00 | ADD TO CART | |
| P10019908 | FLANGE,RAW CAST,LOW LEAD | - | 1.000 | $ 702.26 | ADD TO CART | |
| P10019756 | GASKET CLSD CELL .5x.125 | - | 8.000 | $ 3.41 | ADD TO CART | |
| P10136842 | GASKET CLSD CELL .75x.063 | - | 27.000 | $ 40.18 | ADD TO CART | |
| P10011354 | GASKET,CLOSED CELL,1/8x1" | - | 14.000 | $ 1.23 | ADD TO CART | |
| P10019740 | GASKET,GLASS/BURNER PANEL | - | 1.000 | $ 3.24 | ADD TO CART | |
| P10019738 | GASKET,SIGHT GLASS,ROUND | - | 1.000 | $ 1.50 | ADD TO CART | |
| P10019802 | GASKET,TUB-INTERFACE PLT | - | 2.000 | $ 5.32 | ADD TO CART | |
| P10019806 | GROMMET, RUBBER STANDARD | - | 2.000 | $ 3.23 | ADD TO CART | |
| P10019808 | GROMMET,SEALING,3/4" PIPE | - | 2.000 | $ 3.28 | ADD TO CART | |
| P10020250 | INSUL,FIBER GLASS 1x24x48 | - | 6.000 | $ 5.60 | ADD TO CART | |
| P10010076 | INSUL,FLUE,CUT,750-1000 | - | 4.000 | $ 28.07 | ADD TO CART | |
| P10010080 | INSUL,TOP CTR,750-1000 | - | 1.000 | $ 11.36 | ADD TO CART | |
| P10010082 | INSUL,TOP REAR,750-1000 | - | 1.000 | $ 7.47 | ADD TO CART | |
| P10020238 | INSULATION, FIBERFRAX | - | 0.000 | $ 6.99 | ADD TO CART | |
| P10009846 | INSULATION,CUT, 1.5 x 1.5 | - | 2.000 | $ 0.86 | ADD TO CART | |
| P10009898 | INSULATION,CUT,15.25 x1/2 | - | 2.000 | $ 1.15 | ADD TO CART | |
| P10414163 | INSULATION,TOP,CUT,1000 | - | 2.000 | $ 18.72 | ADD TO CART | |
| P10010286 | MANF/VLV,4 PORT,LEFT,NAT | - | 2.000 | $ 966.08 | ADD TO CART | |
| P10010290 | MANF/VLV,4 PORT,RIGHT,NAT | - | 1.000 | $ 1,000.19 | ADD TO CART | |
| P10148615 | PRV 125PSI, INLET 3/4NPTF | - | 1.000 | $ 222.45 | ADD TO CART | |
| P10152970 | SWITCH, FLOW, OUTDOOR | - | 1.000 | $ 491.90 | ADD TO CART | |
| P10145038 | SWITCH,PRESS,DIAPH,SPDT | - | 2.000 | $ 117.76 | ADD TO CART | |
| P10015592 | TERM BLOCK,12POS,W/JUMPRS | - | 1.000 | $ 47.26 | ADD TO CART | |
| P10015472 | TERMINAL BLOCK,16POS,2ROW | - | 1.000 | $ 98.55 | ADD TO CART | |
| P10015476 | TERMINAL BLOCK,6POS,2ROW | - | 1.000 | $ 11.72 | ADD TO CART | |
| P10145961 | VALVE,BALL,GAS,1-1/2 NPT | - | 1.000 | $ 249.28 | ADD TO CART | |
| P10143865 | VALVE,BALL,GAS,3/4 NPT F | - | 2.000 | $ 87.53 | ADD TO CART | |
| P10010294 | WELD,MANIFOLD,GAS,1-1/2" | - | 1.000 | $ 515.01 | ADD TO CART | |
| P10015512 | WIRE HARN, PUMP, 1000,MT2 | - | 1.000 | $ 43.73 | ADD TO CART | |
| P10015506 | WIRE HARN,PUMP RELAY,MT2 | - | 1.000 | $ 6.93 | ADD TO CART | |
| P10015490 | WIRE HARNESS #1, FENWAL | - | 1.000 | $ 83.19 | ADD TO CART | |
| P10015492 | WIRE HARNESS #2, CTRL PNL | - | 1.000 | $ 75.15 | ADD TO CART | |
| P10015502 | WIRE HARNESS #3,MAIN TRNK | - | 1.000 | $ 184.84 | ADD TO CART | |
| P10015494 | WIRE HARNESS #4,REMOTE SW | - | 1.000 | $ 39.47 | ADD TO CART | |
| P10015508 | WIRE HARNESS,L2/N2/GROUND | - | 1.000 | $ 4.22 | ADD TO CART |
