Parts for Crown Boiler BSI103:

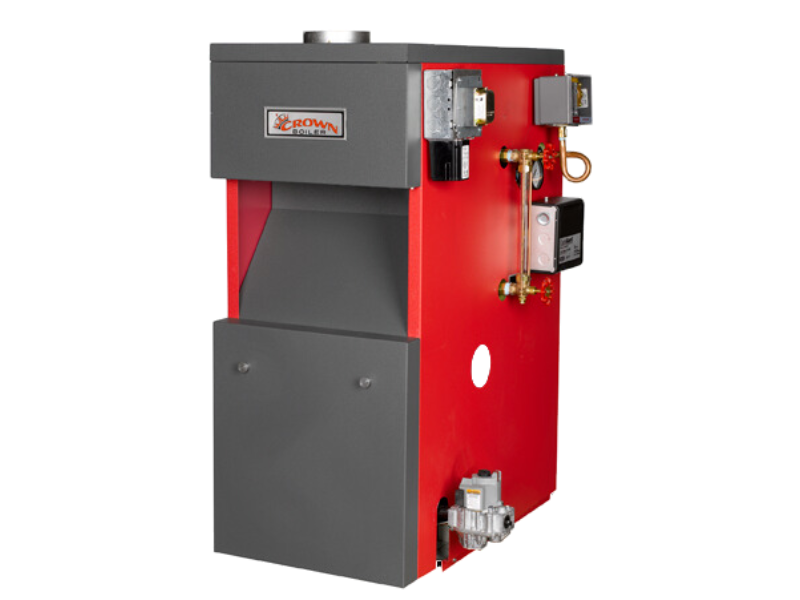

Bermuda, Gas-Fired Natural Draft Steam Boiler, 103
Manufacturer: Crown Boiler
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
82 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10004718 | ROLLOUT SWITCH, G4AM0600240C | - | 1.000 | $ 32.96 | ADD TO CART |
|
P10004556 | 1/2 in. x 1 in. SEALING STRIP | - | 1.000 | $ 14.42 | ADD TO CART |
|
P10004724 | BLOCKED VENT SWITCH ASSY. (INCLUDES MOUNTING BRACKET) BLOCKED VENT SWITCH ASSY. (INCLUDES MOUNTING BRACKET) | - | 1.000 | $ 33.99 | ADD TO CART |
|
P10002678 | 1 in. BURNER WITH PILOT BRACKET, (Q348 PILOTS) | - | 1.000 | $ 104.03 | ADD TO CART |
|
P10002680 | 1 in. BURNER LESS PILOT BRACKET | - | 4.000 | $ 94.76 | ADD TO CART |
|
P10004908 | GAS VALVE (E.I. NAT GAS), VR8204C6000 | - | 1.000 | $ 236.90 | ADD TO CART |
|
P10004916 | GAS VALVE (E.I. PILOT LP GAS), VR8204C6018 | - | 1.000 | $ 245.14 | ADD TO CART |
|
P10001528 | PILOT ASSY. (E.I. NAT GAS), Q348A1275 | - | 1.000 | $ 84.46 | ADD TO CART |
|
P10001526 | PILOT ASSY. (E.I. LP GAS), Q348A1259 | - | 1.000 | $ 79.31 | ADD TO CART |
|
P10001662 | PILOT TUBING | - | 1.000 | $ 29.87 | ADD TO CART |
|
P10001668 | DOOR KNOB | - | 2.000 | $ 13.39 | ADD TO CART |
|
P10153680 | IGNITION MODULE (E.I. BOILERS) (NATURAL GAS ONLY), S8600F1000 | - | 2.000 | $ 287.00 | ADD TO CART |
|
P10001738 | VENT DAMPER | - | 1.000 | $ 419.21 | ADD TO CART |
|
P10003798 | PROBE TYPE L.W.C.O., CG400 | - | 1.000 | $ 318.27 | ADD TO CART |
|
P10001704 | PRESSURE GUAGE | - | 1.000 | $ 64.89 | ADD TO CART |
|
P10004808 | 24V TRANSFORMER, AT140D1012 | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10004900 | SPST RELAY, R8225B1049 | - | 1.000 | $ 152.44 | ADD TO CART |
|
P10005028 | BLOCKED VENT SWITCH HARNESS | - | 1.000 | $ 20.60 | ADD TO CART |
| P10134224 | BSI HEAT EXCHANGER ASSY. | - | 1.000 | $ 1,525.43 | ADD TO CART | |
| P10197679 | BSI/CWI LEFT END SECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10197680 | BSI RIGHT END SECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10197681 | BSI/CWI INTERMEDIATE SECTION | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10003290 | UPPER PUSHNIPPLE | - | 3.000 | $ 50.47 | ADD TO CART | |
| P10003288 | LOWER PUSHNIPPLE | - | 3.000 | $ 25.75 | ADD TO CART | |
| P10004286 | BASE TRAY | - | 1.000 | $ 184.37 | ADD TO CART | |
| P10004288 | BASE WRAPPER | - | 1.000 | $ 221.45 | ADD TO CART | |
| P10004290 | BURNER TRAY (1 in. BURNERS) | - | 1.000 | $ 151.41 | ADD TO CART | |
| P10197689 | BURNER TRAY (40mm BURNERS) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004256 | BASE FRONT PANEL ASSY. (INCLUDES INSULATION) | - | 1.000 | $ 64.89 | ADD TO CART | |
| P10004274 | BURNER ACCESS PANEL | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10004292 | BASE END INSULATION | - | 2.000 | $ 37.08 | ADD TO CART | |
| P10004296 | BASE REAR INSULATION | - | 1.000 | $ 51.50 | ADD TO CART | |
| P10004188 | BASE LEG ASSY. | - | 4.000 | $ 33.99 | ADD TO CART | |
| P10004538 | 1/4-20 X 1/2 in. SELF TAPPING SCREW | - | 20.000 | $ 4.12 | ADD TO CART | |
| P10004558 | 1/2 in. x 2 in. SEALING STRIP | - | 1.000 | $ 9.27 | ADD TO CART | |
| P10196642 | ROLLOUT SWITCH BRACKET | - | 1.000 | $ 3.09 | ADD TO CART | |
| P10196643 | #8 x 3/4 in. SELF TAPPING SCREW | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10196682 | #10 x 1/2 in. SHEET METAL SCREW | - | 2.000 | $ 3.09 | ADD TO CART | |
| P10136974 | 5/16 USS FLAT WASHER | - | 4.000 | $ 5.15 | ADD TO CART | |
| P10196644 | 5/16-18 LOCK NUT | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10196645 | 5/16-18 x 1-1/4 SELF TAPPING SCREW | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10197699 | DRAFT DIVERTER ASSEMBLY | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10197210 | 1/4-20 x 1-1/4 in. CARRIAGE BOLT | - | 4.000 | $ 4.12 | ADD TO CART | |
| P10001672 | 1/4 in. USS FLAT WASHER | - | 4.000 | $ 4.12 | ADD TO CART | |
| P10004546 | 1/4-20 WING NUT | - | 4.000 | $ 12.36 | ADD TO CART | |
| P10004214 | MANIFOLD (1 in. BURNERS) | - | 1.000 | $ 104.03 | ADD TO CART | |
| P10004642 | NAT GAS ORIFICE (#44 DRILL SIZE) | - | 5.000 | $ 12.36 | ADD TO CART | |
| P10004664 | LP GAS ORIFICE (#55 DRILL SIZE) | - | 5.000 | $ 12.36 | ADD TO CART | |
| P10196654 | IGNITION CABLE | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10001496 | 1/8 SHORT FERRULE (INCLUDED WITH GAS VALVE), 392449 | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10137847 | 1/8 LONG FERRULE (INCLUDED WITH PILOT ASSEMBLY), 392449-4 | - | 1.000 | $ 5.31 | ADD TO CART | |
| P10197710 | 40mm BURNER WITH PILOT BRACKET, Q348 PILOTS | - | 1.000 | $ 117.42 | ADD TO CART | |
| P10197711 | 40mm BURNER LESS PILOT BRACKET | - | 2.000 | $ 99.91 | ADD TO CART | |
| P10197713 | MANIFOLD (40mm BURNERS) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004450 | LEFT SIDE JACKET PANEL | - | 1.000 | $ 151.41 | ADD TO CART | |
| P10004448 | RIGHT SIDE JACKET PANEL | - | 1.000 | $ 141.11 | ADD TO CART | |
| P10004454 | REAR JACKET PANEL | - | 1.000 | $ 121.54 | ADD TO CART | |
| P10004464 | TOP JACKET PANEL | - | 1.000 | $ 135.96 | ADD TO CART | |
| P10127138 | LOWER FRONT PANEL | - | 1.000 | $ 125.66 | ADD TO CART | |
| P10004478 | UPPER FRONT PANEL | - | 1.000 | $ 85.49 | ADD TO CART | |
| P10004496 | DIVERTER PANEL | - | 1.000 | $ 109.18 | ADD TO CART | |
| P10004502 | VESTIBULE PANEL | - | 1.000 | $ 90.64 | ADD TO CART | |
| P10196680 | HORIZONTAL JACKET CLIP | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21149683 | VERTICAL JACKET CLIP | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10001670 | 8-32 X 1/4 in. H.W.H. SCREW | - | 2.000 | $ 4.12 | ADD TO CART | |
| P10196683 | IGNITION MODULE (E.I. BOILERS) (NATURAL OR LP GAS), S8600M1013 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004586 | MODULE BRACKET (E.I. BOILERS) | - | 1.000 | $ 15.45 | ADD TO CART | |
| P10004604 | GLASS SET | - | 1.000 | $ 147.29 | ADD TO CART | |
| P10003790 | FLOAT TYPE L.W.C.O., #67 CR-2 | - | 1.000 | $ 669.50 | ADD TO CART | |
| P10001710 | 3/4 in. SAFETY VALVE (15 psi) | - | 1.000 | $ 66.95 | ADD TO CART | |
| P10001694 | 90 DEGREE PIG-TAIL | - | 1.000 | $ 62.83 | ADD TO CART | |
| P10001530 | PRESSURE LIMIT, PA404A1009 | - | 1.000 | $ 138.02 | ADD TO CART | |
| P10001688 | 3/4 in. BOILER DRAIN | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10197749 | JUNCTION BOX | - | 1.000 | $ 27.81 | ADD TO CART | |
| P10004728 | TRANSFORMER MOUNTING PLATE | - | 1.000 | $ 19.57 | ADD TO CART | |
| P10196684 | 8-32 X 1/2 in. SELF TAPPING SCREW | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10005032 | DAMPER WIRE HARNESS | - | 1.000 | $ 47.38 | ADD TO CART | |
| P10005030 | J-BOX - R.O. SWITCH HARNESS | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10141267 | #67 L.W.C.O. - J-BOX HARNESS | - | 1.000 | $ 24.40 | ADD TO CART | |
| P10005038 | CG400 L.W.C.O - J-BOX HARNESS | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10005024 | PRESSURE LIMIT - J-BOX HARNESS | - | 1.000 | $ 40.17 | ADD TO CART | |
|
P10005016 | INTERMITTENT IGNITION HARNESS | - | 1.000 | $ 41.20 | ADD TO CART |
