Parts for Crown Boiler 16-520:

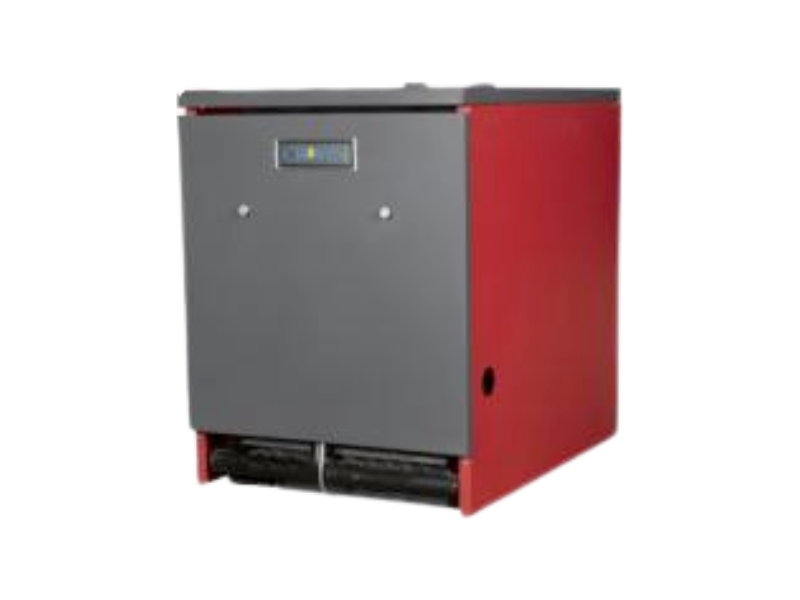

Series 16, Gas-Fired Natural Draft Water Boiler, 520
Manufacturer: Crown Boiler
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
89 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10001528 | NAT GAS PILOT ASSY, Q348A1275 | - | 1.000 | $ 84.46 | ADD TO CART |
|
P10001526 | LP GAS PILOT ASSY, Q348A1259 | - | 1.000 | $ 79.31 | ADD TO CART |
|
P10004718 | FLAME ROLL-OUT SWITCH, G4AM0600240C | - | 1.000 | $ 32.96 | ADD TO CART |
|
P10001668 | DOOR KNOB | - | 2.000 | $ 13.39 | ADD TO CART |
|
P10001686 | 3/4 IN. NPT SAFETY RELIEF VALVE 30 PSI | - | 1.000 | $ 85.49 | ADD TO CART |
|
P10004902 | CONTROL CENTER, R8285D5001 WITH R8222U DPST RELAY | - | 1.000 | $ 105.06 | ADD TO CART |
|
P10001480 | 3/4 IN. NPT X 3 IN. IMMERSION WELL | - | 1.000 | $ 52.53 | ADD TO CART |
|
P10004720 | BLOCKED VENT SWITCH | - | 1.000 | $ 31.93 | ADD TO CART |
|
P10005018 | GROUND WIRE | - | 1.000 | $ 28.84 | ADD TO CART |
| P10003226 | BASE END PANEL | - | 2.000 | $ 136.99 | ADD TO CART | |
| P10201100 | BASE CHANNEL | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10003228 | BASE REAR PANEL ASSEMBLY | - | 1.000 | $ 173.04 | ADD TO CART | |
| P10003218 | BASE FRONT PANEL ASSEMBLY | - | 1.000 | $ 128.75 | ADD TO CART | |
| P10003222 | BURNER ACCESS PANEL ASSEMBLY | - | 2.000 | $ 75.19 | ADD TO CART | |
| P10004538 | 1/4-20 X 1/2 SELF TAPPING SCREW | - | 15.000 | $ 4.12 | ADD TO CART | |
| P10201113 | GAS MANIFOLD | - | 1.000 | $ 279.13 | ADD TO CART | |
| P10201115 | MAIN BURNER ORIFICE - NAT GAS - DRILL # 38 | - | 18.000 | $ 0.00 | ADD TO CART | |
| P10201116 | MAIN BURNER ORIFICE - LP - DRILL # 52 | - | 18.000 | $ 0.00 | ADD TO CART | |
| P10004688 | ORIFICE HITCH PIN | - | 18.000 | $ 1.03 | ADD TO CART | |
| P10002672 | MAIN BURNER LESS PILOT BRKT | - | 17.000 | $ 76.22 | ADD TO CART | |
| P10002670 | MAIN BURNER WITH PILOT BRKT. | - | 1.000 | $ 75.19 | ADD TO CART | |
| P10004800 | 1/4 IN. COMPRESSION FERRULE | - | 1.000 | $ 169.95 | ADD TO CART | |
| P10001802 | 10-32 X 3/16 MACHINE SCREW | - | 2.000 | $ 4.12 | ADD TO CART | |
| P10004518 | 1/4 IN. O.D. PILOT TUBING (ft) | - | 3.000 | $ 25.75 | ADD TO CART | |
| P10201118 | 1-1/4 IN. X 1 IN. 90 DEG. REDUCING STREET ELBOW | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201119 | 1 IN. UNION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201120 | 1 IN. X 2 IN. NIPPLE | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004932 | NAT GAS VALVE, ROBERTSHAW 7000DERHC | - | 1.000 | $ 581.95 | ADD TO CART | |
| P10004934 | LP GAS VALVE, ROBERTSHAW 7000DERHC-LP | - | 1.000 | $ 758.08 | ADD TO CART | |
| P10201121 | 1/4 IN. FERRULE, INCLUDED WITH GAS VALVE | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004542 | FLAME ROLL-OUT SWITCH MOUNTING BRACKET | - | 1.000 | $ 13.39 | ADD TO CART | |
| P10196682 | #10 X 1/2 HEX HD SHEET METAL SCREW | - | 1.000 | $ 3.09 | ADD TO CART | |
| P10196643 | #8 X 3/4 SELF TAPPING SCREW | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10003202 | HEAT EXCHANGER ASSEMBLY | - | 1.000 | $ 7,658.05 | ADD TO CART | |
| P10169499 | LEFT END SECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201122 | INTERMEDIATE SECTION | - | 7.000 | $ 0.00 | ADD TO CART | |
| P10201123 | RIGHT END SECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201127 | FLUE COLLECTOR | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004578 | 5/16 IN.-18 X 1-1/2 IN. HEX HEAD CAP SCREW | - | 6.000 | $ 5.15 | ADD TO CART | |
| P10001660 | 3/8 IN. FLAT WASHER | - | 6.000 | $ 5.15 | ADD TO CART | |
| P10201129 | 5/16 IN.-18 HEX NUT | - | 6.000 | $ 0.00 | ADD TO CART | |
| P10004574 | 5/16 IN.-18 X 3/4 IN. HEX HEAD CAP SCREW | - | 2.000 | $ 5.15 | ADD TO CART | |
| P10197210 | 1/4 IN.-20 X 1-1/4 IN. CARRIAGE BOLT | - | 6.000 | $ 4.12 | ADD TO CART | |
| P10001672 | 1/4 IN. FLAT WASHER | - | 6.000 | $ 4.12 | ADD TO CART | |
| P10001666 | 1/4 IN.-20 HEX NUT | - | 6.000 | $ 4.12 | ADD TO CART | |
| P10201130 | 3 IN. PUSH NIPPLES, INCLUDED IN HEAT EXCHANGER ASSY | - | 16.000 | $ 0.00 | ADD TO CART | |
| P10201131 | FURNACE CEMENT, PINT CONTAINER | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10174542 | RIGHT SIDE JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10174543 | LEFT SIDE JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10174491 | REAR JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201135 | VESTIBULE PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201140 | TOP JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10174554 | JACKET DOOR PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
|
P10179962 | EMBOSSED LABEL | - | 1.000 | $ 42.23 | ADD TO CART |
| P10001670 | #8-32 X 1/4 IN. H.W.H. SCREW | - | 2.000 | $ 4.12 | ADD TO CART | |
| P21149683 | VERTICAL JACKET CLIP | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10196684 | #8-32 X 1/2 IN. SELF TAPPING SCREW | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10197227 | #8-32 X 1/2 IN. MACHINE SCREW | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10197228 | #8-32 HEX NUT | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10001688 | 3/4 IN. DRAIN VALVE | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10199129 | 3/4 IN. NPT X 4-1/2 IN. PIPE NIPPLE | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10199130 | 3/4 IN. NPT COUPLING | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201141 | 2 IN. NPT X 10 IN. PIPE NIPPLE WITH GAUGE TAPPING | - | 1.000 | $ 165.83 | ADD TO CART | |
| P10198429 | TEMPERATURE - PRESSURE GAUGE | - | 1.000 | $ 59.41 | ADD TO CART | |
| P10197229 | 4 x 4 JUNCTION BOX | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004586 | IGNITION MODULE MOUNTING BRACKET | - | 1.000 | $ 15.45 | ADD TO CART | |
| P10004890 | IGNITION MODULE, S8610M 1011 (STD ONLY) | - | 1.000 | $ 223.51 | ADD TO CART | |
| P10001510 | OPERATING LIMIT, L4080D1218 | - | 1.000 | $ 203.94 | ADD TO CART | |
| P10201142 | STRAIN RELIEF BUSHING FOR BLOCKED VENT SWITCH WIRING | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10005206 | IGNITION MODULE HARNESS, STD ONLY | - | 1.000 | $ 23.69 | ADD TO CART | |
| P10005210 | WIRE HARNESS ASSEMBLY, STD ONLY | - | 1.000 | $ 62.83 | ADD TO CART | |
| P10004794 | 36 IN. IGNITION CABLE | - | 1.000 | $ 129.78 | ADD TO CART | |
| P10004838 | IGNITION MODULE, UT 1003-612A, (CSD-1 ONLY) | - | 1.000 | $ 319.30 | ADD TO CART | |
| P10004842 | DAUGHTER BOARD, UT 1145-2, (CSD-1 ONLY) | - | 1.000 | $ 120.51 | ADD TO CART | |
| P10201143 | DAUGHTER BOARD MOUNTING BRACKET, (CSD-1 ONLY) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21150583 | DAUGHTER BOARD COVER, (CSD-1 ONLY) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004844 | PILOT VALVEM (CSD-1 ONLY) | - | 1.000 | $ 195.70 | ADD TO CART | |
| P10004846 | RV12L PILOT REGULATOR – NAT/LP, (CSD-1 ONLY) | - | 1.000 | $ 83.43 | ADD TO CART | |
| P10201145 | PILOT COMPRESSION x 1/8 MNPT ADAPTER, (CSD-1 ONLY) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10005214 | WIRE HARNESS ASSEMBLY, (CSD-1 ONLY) | - | 1.000 | $ 57.68 | ADD TO CART | |
| P10005212 | GAS VALVE HARNESS, (CSD-1 ONLY) | - | 1.000 | $ 43.26 | ADD TO CART | |
| P10201146 | ALARM HARNESS, (CSD-1 ONLY - PURPLE) | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10201147 | R-STAT JUMPER HARNESS, (CSD-1 ONLY - GRAY) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201148 | IGNITION MODULE HARNESS, (CSD-1 ONLY- ORANGE) | - | 1.000 | $ 13.39 | ADD TO CART | |
| P10201149 | CSD-1 WIRING LABEL, (CSD-1 ONLY) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201150 | INSTALLATION MANUAL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201151 | USER'S MANUAL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10201152 | OPTIONAL VENT DAMPER HARNESS | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10001744 | OPTIONAL AUTOMATIC VENT DAMPER | - | 1.000 | $ 436.76 | ADD TO CART |
