Parts for Burnham Mfg MPO-IQ147:

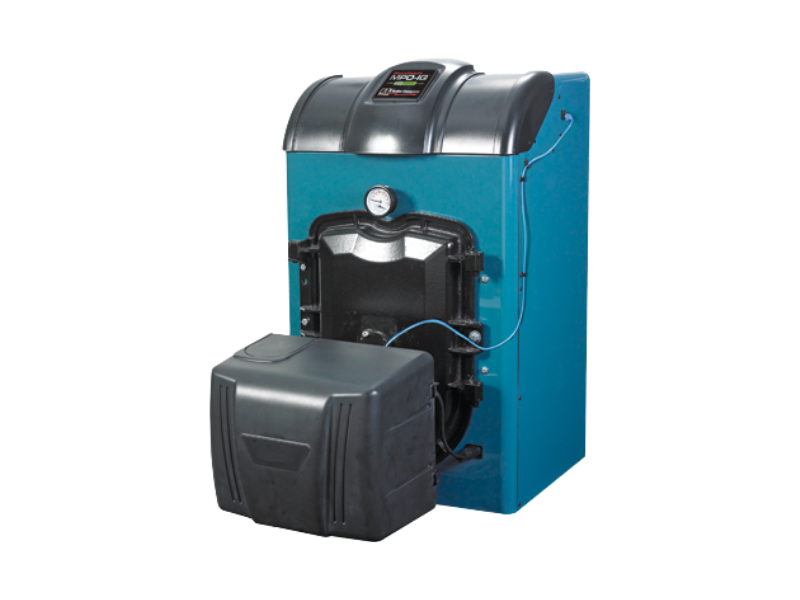

MPO-IQ, 3-Pass Oil Boiler, 147
Manufacturer: Burnham Mfg
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
144 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
| P10166158 | Air Tube Combination | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166162 | Beckett's Spec. No. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166165 | Air Band | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166166 | Air Band Nut | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166167 | Air Band and Shutter Screw | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21032727 | Air Shutter | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166169 | Blower Wheel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166170 | Coupling | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21032728 | Bulkhead Knurled Locknut | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166173 | Connector Tube Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166174 | Electrode Clamp | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166175 | Electrode Clamp Screw | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166176 | Electrode Insulator Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166472 | Spider Spacer Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166473 | Escutcheon Plate | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166475 | Head | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166180 | Head Screws | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166477 | Flange Gasket | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166478 | AFG Housing | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166479 | Motor | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166184 | Nozzle Adapter | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166481 | Nozzle Line Electrode Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166482 | Oil Pump, Clean Cut (Single Stage) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166483 | Oil Pump, Clean Cut (Two-Stage) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166484 | Static Plate | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166188 | Ignitor | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166190 | Ignitor Hinge Screw | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166191 | Ignitor Holding Screw | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166192 | Ignitor Gasket Kit | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166193 | Wire Guard | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166486 | Junction Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153826 | Flame Detector | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166196 | Oil Solenoid Valve Coil | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166197 | Oil Solenoid Valve Cord | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166488 | Complete Oil Burner (without Primary Control) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166491 | Air Adjustment Mechanism Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166492 | Air Guide | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166493 | Air Tube Combination | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166495 | Air Tube Mounting Screws #8 x 3/8 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166496 | Blower Wheel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166497 | Connector Tube Assembly, 11 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166498 | Rear Access Door | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166499 | Electrodes Insulator Kit | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166500 | Mounting Screws 1/4 -20 x 7/8 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166501 | Gasket, Igniter Baseplate and Hinge, Wiring, Rear Access Door | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166502 | Inlet Air Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166503 | Inlet Air Adapter, Outside Air Kit | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166504 | Motor | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166505 | Retention Head Assembly - 6 Slot | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166506 | Retention Head Assembly - 9 Slot | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166507 | Spring, Igniter Prop | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166508 | Low Firing Rate Baffle (If applicable) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166509 | Cover, Burner | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166510 | Mounting Plate, Burner Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166511 | Thumbscrews, Cover Mounting | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166512 | Gasket, Flange | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166513 | Main Housing Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166514 | Nozzle Line Heater (If applicable) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166516 | Cast Iron Block Assembly - 3 Section | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166198 | Spanner Bar w/Threaded Inserts, 1-1/4 in x 1-1/2 in x 20-3/8 in Lg. | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166201 | Carriage Bolt, 3/8 in-16 x 1-1/4 in Lg., Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166202 | Cap Screw, 5/16 in-18 x 7/8 in Lg., Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166203 | Flat Washer, 5/16 in USS, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166204 | Hex Nut, 5/16-18, Serrated Flange, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10114376 | Hinge Bracket | - | 1.000 | $ 12.36 | ADD TO CART | |
| P10166205 | 5/16 in-18 x 3/4 in Lg. Cap Screw, Plated | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166520 | Cast Iron Burner Door Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166522 | Cast Iron Burner Swing Door (Only) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10148560 | Burner Swing Door Insulation (Less Pockets) | - | 1.000 | $ 124.59 | ADD TO CART | |
| P10145155 | 1/2 in Dia. Rope Gasket - Burner Swing Door | - | 1.000 | $ 94.55 | ADD TO CART | |
| P10114380 | 1/8 in Dia. Rope Gasket - Observation Port | - | 1.000 | $ 1.03 | ADD TO CART | |
| P10166208 | Observation Port Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166210 | 5/16 in-18 x 5/8 in Lg. Socket Head Cap Screw, Plated | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166211 | 3/8 in-16 x 1-3/4 in Lg. Tap Bolt, Plated | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10165674 | 3/8 in Flat Washer, USS, Plated | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166212 | Smokebox | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166106 | 5/16 in Flat Washer, USS, Plain | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166218 | 1/4 in NPT Pipe Plug, Square Head, Brass | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10145154 | Smokebox Collar 6 in Dia. | - | 1.000 | $ 94.55 | ADD TO CART | |
| P10166524 | Clean-Out Cover Assembly | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166220 | Cast Iron Clean-Cut Cover (only) | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166221 | 1/2 in Dia. Rope Gasket - Clean-Cut Cover | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166525 | Jacket Front Panel Assembly w/Insulation | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166526 | Power Outlet Receptacle, Heyco #0937 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10137065 | #8 x 1/2 in Sheet Metal Screw, Black Oxide | - | 33.000 | $ 1.45 | ADD TO CART | |
| P10166527 | Jacket Rear Panel Assembly w/Insulation | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166528 | Snap Bushing, Heyco #2240 | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166529 | Internal Junction Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10114418 | Snap Bushing, Heyco #2126 | - | 4.000 | $ 3.09 | ADD TO CART | |
| P10166229 | 5/16 in -18 x 3 in Lg. Tap End Stud, Plain | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10000216 | 5/8 in O.D. x 2-5/32 in Lg. Jacket Spacer | - | 2.000 | $ 1.03 | ADD TO CART | |
| P10166230 | 5/16 in -18 Acorn Nut, Plated | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10123006 | 3 in Thick Fiberglass Insulation Wrapper For: 3 Section Cast Iron, Block Assembly | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10166532 | Jacket Right Side Panel Assembly (No Insulation Required) 3 Section Boiler | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166536 | Jacket Left Side Panel Assembly (No Insulation Required) 3 Section Boiler | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166540 | Jacket Top Panel Assembly (No Insulation Required) 3 Section Boiler | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166543 | Jacket Top Rear Panel Assembly (No Insulation Required) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166243 | Beckett Burner Plastic Enclosure Backer Plate | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166244 | Beckett Burner Plastic Enclosure Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10165920 | Jacket Poly Front Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166544 | Control Panel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000180 | Snap Bushing, Heyco #2043 | - | 2.000 | $ 1.44 | ADD TO CART | |
| P10166545 | MPO-IQ Logo Plate | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166257 | Beckett AFG Oil Burner w/Gasket for: Natural Draft MPO-IQ147 Spec No. BCB9504 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166548 | Beckett Nx Oil burner w/Gasket for: Direct Vent Spec No. BCB9403 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166553 | Riello 40 Oil Burner w/Gasket for: Natural Draft MPO-IQ147 Spec No. C8512478 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166558 | Carlin EZ Oil Burner w/Gasket for: Natural Draft MPO-IQ147 Spec No. 9985811J14 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10118908 | Oil Primary Control, Honeywell R7284P1080 (Universal) | - | 1.000 | $ 256.47 | ADD TO CART | |
| P10114378 | Stainless Steel Second Pass Flueway Baffle | - | 2.000 | $ 164.26 | ADD TO CART | |
| P10154832 | Circulator w/ Gaskets Taco 007 | - | 1.000 | $ 383.76 | ADD TO CART | |
| P10120438 | Circulator w/ Gaskets Bell & Gossett NRF22 | - | 1.000 | $ 501.82 | ADD TO CART | |
| P10165386 | Circulator w/ Gaskets Grundfos UP15-42F | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000210 | Circulator Flange, 1-1/2 in NPT | - | 2.000 | $ 12.36 | ADD TO CART | |
| P10166561 | Cap Screw, Hex Head, 7/16 in -14 x 1-1/2 in Lg. | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166562 | Hex Nut, 7/16 in -14 | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166246 | 6 in RC-STD Draft Control | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10143351 | Temperature & Pressure Gauge, 3-1/4 in Dia., ENFM #4104-3-1/4-1/4-10 CHR | - | 1.000 | $ 58.07 | ADD TO CART | |
| P10122990 | Honeywell #123869A Immersion Well, 1/2 in NPT x 1-1/2 in Insulation | - | 1.000 | $ 49.03 | ADD TO CART | |
| P10127846 | Return Injector Kit | - | 1.000 | $ 87.55 | ADD TO CART | |
| P10166564 | Miscellaneous Parts Bag Assembly - (Note) Includes Items 3Q thru 3V | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10147337 | Relief Valve, 3/4 in NPT M x F, Conbraco #10-407-05 30 PSI | - | 1.000 | $ 89.41 | ADD TO CART | |
| P10166565 | Relief Valve, 3/4 in NPT F x F, Conbraco #10-303-07 40 PSI | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10148506 | Relief Valve, 3/4 in NPT F x F, Watts #374A-50 50 PSI | - | 1.000 | $ 108.55 | ADD TO CART | |
| P10166566 | Nipple, 1-1/4 in NPT x 5 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166567 | Tee, 1-1/4 in x 1-1/4 in x 3/4 in NPT | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166568 | Pipe Plugs 1-1/4 in NPT | - | 1.000 | $ 0.00 | ADD TO CART | |
|
P10141479 | Drain Valve, 3/4 in NPT, Conbraco #35-302-03 | - | 1.000 | $ 52.28 | ADD TO CART |
| P10114450 | IQ Oil Boiler Control | - | 1.000 | $ 155.53 | ADD TO CART | |
| P10149364 | IQ Option Control Panel | - | 1.000 | $ 174.65 | ADD TO CART | |
| P10166569 | Line Voltage Harness | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166570 | Low Voltage Harness | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000306 | Burner-ECOM Harness | - | 1.000 | $ 16.48 | ADD TO CART | |
| P10145602 | Transformer | - | 1.000 | $ 70.08 | ADD TO CART | |
| P10108800 | Limit Rated Temperature Sensor, 12 in Length (Honeywell 50001464-001) | - | 1.000 | $ 21.63 | ADD TO CART | |
| P10166571 | Direct Vent Conversion Kit , 5-6 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166573 | Appliance Adapter, FDVS, 5-6 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166575 | 6 in Appliance Clamp, FDVS-6, Half | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166577 | Cover Sleeve Assembly, FDVS-5 | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166579 | Cover Ring Assembly, FDVS-5 | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166581 | Inner Pipe Clamp, FDVS-5, Half | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166583 | 5 in Dia. x 5 ft. FOVP-505 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166584 | 5 in Dia. x 10 ft. FOVP-510 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166585 | 5 in Dia. x 15 ft. FOVP-515 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10166586 | 5 in Dia. x 20 ft. FOVP-520 | - | 1.000 | $ 0.00 | ADD TO CART |
