Parts for Burnham Mfg ASPNC-155:

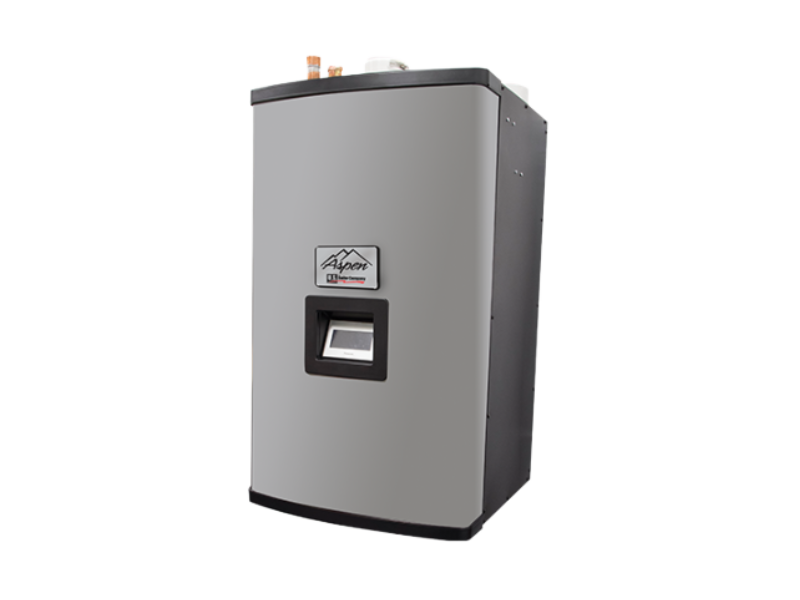

Aspen, Condensing High Efficiency Direct Vent Gas-Fired Hot Water Boiler, 155
Manufacturer: Burnham Mfg
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
61 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
| P10000910 | Burner (includes burner and screws) | - | 1.000 | $ 642.72 | ADD TO CART | |
| P21035228 | Burner Plate Insulation | - | 1.000 | $ 510.88 | ADD TO CART | |
| P10001948 | Flame Sensor (includes electrode, gasket, and hardware) | - | 1.000 | $ 128.75 | ADD TO CART | |
| P21035112 | Ignitor (includes electrode, gasket, and hardware) | - | 1.000 | $ 152.44 | ADD TO CART | |
| P10000660 | Flue Gasket (Heat Exchanger or Flue Pipe) | - | 1.000 | $ 61.80 | ADD TO CART | |
| P21035173 | Silicone Tubing | - | 1.000 | $ 81.37 | ADD TO CART | |
| P10000634 | Blocked Vent Switch | - | 1.000 | $ 96.82 | ADD TO CART | |
| P21035231 | Condensate Float Switch | - | 1.000 | $ 215.27 | ADD TO CART | |
| P10000946 | Condensate Trap | - | 1.000 | $ 217.33 | ADD TO CART | |
| P10000640 | Return Sensor | - | 1.000 | $ 84.46 | ADD TO CART | |
| P10000868 | Flue Sensor | - | 1.000 | $ 129.78 | ADD TO CART | |
| P21035177 | Supply Sensor | - | 1.000 | $ 133.90 | ADD TO CART | |
| P21150609 | 30 psi Relief Valve | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000506 | Temperature & Pressure Gauge | - | 1.000 | $ 106.09 | ADD TO CART | |
| P10000804 | Water Grommet (includes 2 grommets) | - | 1.000 | $ 12.36 | ADD TO CART | |
| P10000646 | Water Gasket (includes 2 gaskets) | - | 1.000 | $ 42.23 | ADD TO CART | |
| P10000604 | Supply Pipe (includes pipe assembly, zone valve body, gasket, & jacket grommet) | - | 1.000 | $ 416.12 | ADD TO CART | |
| P10000606 | Return Pipe Assembly (includes pipe assembly, gasket, & jacket grommet) | - | 1.000 | $ 238.96 | ADD TO CART | |
| P10000940 | Zone Valve Actuator | - | 1.000 | $ 306.94 | ADD TO CART | |
| P10000608 | Circulator to Flat Plate Pipe Assembly (includes gasket) | - | 1.000 | $ 242.05 | ADD TO CART | |
| P10000648 | Water Gasket (top flat plate heat exchanger connections, includes 2 gaskets) | - | 1.000 | $ 40.17 | ADD TO CART | |
| P10000616 | Flat Plate Heat Exchanger (includes heat exchanger, water gaskets, and jacket gasket) | - | 1.000 | $ 623.15 | ADD TO CART | |
| P10000938 | External Combi Piping | - | 1.000 | $ 280.16 | ADD TO CART | |
| P10000572 | External Combi Piping Gasket | - | 1.000 | $ 96.82 | ADD TO CART | |
| P10165632 | Thermostatic Mixing Valve | - | 1.000 | $ 470.71 | ADD TO CART | |
| P10117960 | Flow Switch | - | 1.000 | $ 196.73 | ADD TO CART | |
| P10000884 | Natural Gas (NG) Combustion Assembly (includes Blower, NG Venturi Assembly, Gas Valve, and Hardware) | - | 1.000 | $ 1,003.22 | ADD TO CART | |
| P10000874 | LP (Propane) Combustion Assembly (includes Blower, LP Venturi Assembly, Gas Valve, and Hardware) | - | 1.000 | $ 1,231.88 | ADD TO CART | |
| P10002344 | LP (Propane) Conversion Kit | - | 1.000 | $ 126.69 | ADD TO CART | |
| P21035150 | Blower Outlet Gasket | - | 1.000 | $ 28.84 | ADD TO CART | |
| P10000860 | Gas Valve Flange | - | 1.000 | $ 121.54 | ADD TO CART | |
| P10000802 | Flare Fitting | - | 1.000 | $ 53.56 | ADD TO CART | |
| P21035132 | Gas Valve Rectifier Module | - | 1.000 | $ 221.45 | ADD TO CART | |
| P10000692 | Gas Line Flex Tube | - | 1.000 | $ 32.96 | ADD TO CART | |
| P10000698 | Gas Shutoff Valve | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10000948 | 22 Inch Gs Pipe W/ Flange | - | 1.000 | $ 74.16 | ADD TO CART | |
| P10001962 | Air Proving Switch | - | 1.000 | $ 99.91 | ADD TO CART | |
| P10000950 | Polypropylene Inlet Attenuator | - | 1.000 | $ 163.77 | ADD TO CART | |
| P10130488 | Front Door Assembly (includes door, plastic trim and hardware) | - | 1.000 | $ 448.05 | ADD TO CART | |
| P10000796 | Door Latch (includes 2 Catch and Keeper) | - | 1.000 | $ 116.39 | ADD TO CART | |
| P10000930 | Gas Train Support Bracket (includes hardware) | - | 1.000 | $ 28.84 | ADD TO CART | |
| P10000722 | Vent Connector (includes connector, gaskets, and hardware) | - | 1.000 | $ 206.00 | ADD TO CART | |
| P10000714 | Air Intake Connector (includes connector, gasket, and lockout) | - | 1.000 | $ 133.90 | ADD TO CART | |
| P10000898 | Jacket Panel (includes Painted Control Panel Frame, Unpainted Control Panel, Right Side Panel, 9 in x9 in Access, and hardware) | - | 1.000 | $ 270.89 | ADD TO CART | |
| P10165629 | Wall Hanging Bracket and Bottom Securing Bracket | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10001968 | High Voltage and Low Voltage Fuse Kit | - | 1.000 | $ 49.44 | ADD TO CART | |
| P10119598 | Transformer | - | 1.000 | $ 136.99 | ADD TO CART | |
| P21035202 | High Voltage PCB (includes PCB, fuses, cover, and screws) | - | 1.000 | $ 183.34 | ADD TO CART | |
| P10000852 | Programmed Control | - | 1.000 | $ 490.28 | ADD TO CART | |
| P10000952 | Square Control Panel Gaskets | - | 1.000 | $ 12.36 | ADD TO CART | |
| P10000726 | Low Voltage PCB (includes PCB, fuses, and screws) | - | 1.000 | $ 326.51 | ADD TO CART | |
| P10000954 | User Interface Inner Plastic Trim | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10165630 | Programmed Display | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000934 | Low Voltage / Communication Harness | - | 1.000 | $ 197.76 | ADD TO CART | |
| P10000730 | High Voltage Harness | - | 1.000 | $ 155.53 | ADD TO CART | |
| P21035218 | Ignition Cable Harness | - | 1.000 | $ 95.79 | ADD TO CART | |
| P10000942 | Blower Control (4 pin) and Blower Power (3 pin) Harness | - | 1.000 | $ 61.80 | ADD TO CART | |
| P10000674 | DHW to Circulator and Zone Valve Harness | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10000510 | LWCO Jumper | - | 1.000 | $ 42.23 | ADD TO CART | |
| P10144847 | Outdoor Temperature Sensor | - | 1.000 | $ 157.42 | ADD TO CART | |
| P10114438 | Header Sensor | - | 1.000 | $ 45.32 | ADD TO CART |
