Parts for Burnham Mfg ASPN-205:

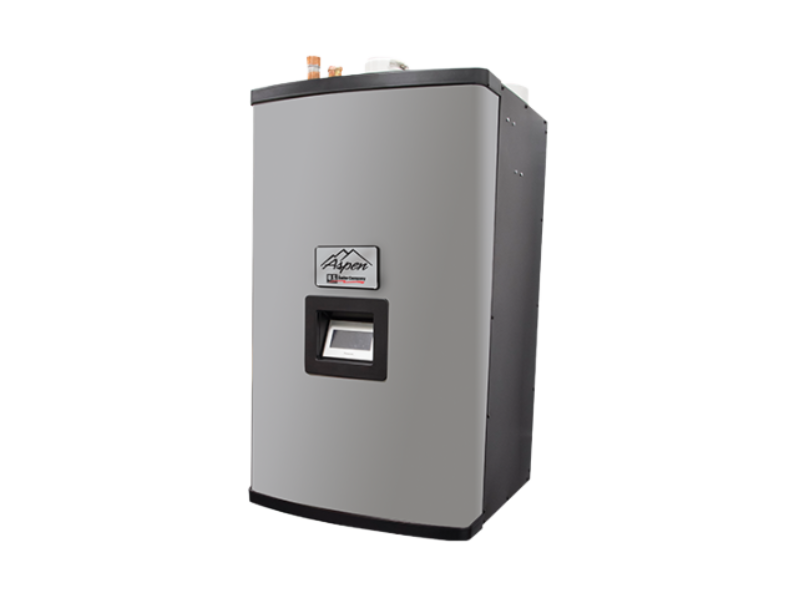

Aspen, Condensing High Efficency Direct Vent Gas-Fired Hot Water Boiler, 205
Manufacturer: Burnham Mfg
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
53 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
| P10000912 | Burner (includes burner and screws) | - | 1.000 | $ 1,306.04 | ADD TO CART | |
| P10000924 | Burner Plate Insulation | - | 1.000 | $ 147.29 | ADD TO CART | |
| P21153828 | Flame Sensor (includes electrode, gasket, and hardware) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153829 | Ignitor (includes electrode, gasket, and hardware) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000662 | Flue Gasket (Heat Exchanger or Flue Pipe) | - | 1.000 | $ 16.48 | ADD TO CART | |
| P10000636 | Silicone Tubing | - | 1.000 | $ 27.81 | ADD TO CART | |
| P10108678 | Blocked Vent Switch | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10000944 | Condensate Float Switch | - | 1.000 | $ 80.34 | ADD TO CART | |
| P10000946 | Condensate Trap | - | 1.000 | $ 90.64 | ADD TO CART | |
| P10000640 | Return Sensor | - | 1.000 | $ 28.84 | ADD TO CART | |
| P10000868 | Flue Sensor | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10000644 | Supply Sensor | - | 1.000 | $ 42.23 | ADD TO CART | |
| P10144906 | 30 psi Releif Valve | - | 1.000 | $ 56.28 | ADD TO CART | |
| P10000506 | Temperature & Pressure Gauge | - | 1.000 | $ 53.77 | ADD TO CART | |
| P10000806 | Water Grommet (includes 2 grommets) | - | 1.000 | $ 13.39 | ADD TO CART | |
| P10000648 | Water Gasket (includes 2 gaskets) | - | 1.000 | $ 11.33 | ADD TO CART | |
| P10000602 | Supply Pipe Assembly (includes pipe assembly, gasket, & jacket grommets) | - | 1.000 | $ 149.35 | ADD TO CART | |
| P10000652 | Return Pipe Assembly (includes pipe assembly, gasket, & jacket grommets) | - | 1.000 | $ 133.90 | ADD TO CART | |
| P21032657 | Natural Gas (NG) Combustion Assembly (includes Blower, NG Venturi Assembly, Gas Valve, and Hardware) | - | 1.000 | $ 856.15 | ADD TO CART | |
| P21032662 | LP (Propane) Combustion Assembly (includes Blower, LP Venturi Assembly, Gas Valve, and Hardware) | - | 1.000 | $ 1,051.35 | ADD TO CART | |
| P21032667 | LP (Propane) Conversion Kit | - | 1.000 | $ 106.09 | ADD TO CART | |
| P10002014 | Blower Outlet Gasket | - | 1.000 | $ 23.07 | ADD TO CART | |
| P10000860 | Gas Valve Flange | - | 1.000 | $ 46.35 | ADD TO CART | |
| P10000802 | Flare Fitting | - | 1.000 | $ 11.33 | ADD TO CART | |
| P10000466 | Gas Valve Rectifier Module | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10000692 | Gas Line Flex Tube | - | 1.000 | $ 32.96 | ADD TO CART | |
| P10000698 | Gas Shutoff Valve | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10000948 | 22 Inch Gs Pipe W/ Flange | - | 1.000 | $ 74.16 | ADD TO CART | |
| P10111356 | Air Proving Switch | - | 1.000 | $ 25.75 | ADD TO CART | |
| P10000950 | Polypropylene Inlet Attenuator | - | 1.000 | $ 298.70 | ADD TO CART | |
| P10130488 | Front Door Assembly (includes door, plastic trim and hardware) | - | 1.000 | $ 448.05 | ADD TO CART | |
| P10000796 | Door Latch (includes 2 Catch and Keeper) | - | 1.000 | $ 50.47 | ADD TO CART | |
| P10000932 | Gas Train Support Bracket (includes hardware) | - | 1.000 | $ 27.81 | ADD TO CART | |
| P10000722 | Vent Connector (includes connector, gaskets, and hardware) | - | 1.000 | $ 95.79 | ADD TO CART | |
| P10000714 | Air Intake Connector (includes connector, gasket, and lockout) | - | 1.000 | $ 42.23 | ADD TO CART | |
| P10000900 | Jacket Panel (includes Painted Control Panel Frame, Unpainted Control Panel, Right Side Panel, 9 in x9 in Access, and hardware) | - | 1.000 | $ 271.92 | ADD TO CART | |
| P10165629 | Wall Hanging Bracket and Bottom Securing Bracket | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21032670 | High Voltage and Low Voltage Fuse Kit | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10119598 | Transformer | - | 1.000 | $ 51.32 | ADD TO CART | |
| P10000720 | High Voltage PCB (includes PCB, fuses, cover, and screws) | - | 1.000 | $ 98.88 | ADD TO CART | |
| P10000852 | Programmed Control | - | 1.000 | $ 490.28 | ADD TO CART | |
| P10000952 | Square Control Panel Gaskets | - | 1.000 | $ 12.36 | ADD TO CART | |
| P10000726 | Low Voltage PCB (includes PCB, fuses, and screws) | - | 1.000 | $ 141.11 | ADD TO CART | |
| P10000954 | User Interface Inner Plastic Trim | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10165630 | Programmed Display | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10000934 | Low Voltage / Communication Harness | - | 1.000 | $ 197.76 | ADD TO CART | |
| P10000730 | High Voltage Harness | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10000798 | Ignition Cable Harness | - | 1.000 | $ 26.78 | ADD TO CART | |
| P10000942 | Blower Control (4 pin) and Blower Power (3 pin) Harness | - | 1.000 | $ 111.24 | ADD TO CART | |
| P10000674 | DHW to Circulator and Zone Valve Harness | - | 1.000 | $ 22.66 | ADD TO CART | |
| P10000510 | LWCO Jumper | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10144847 | Outdoor Temperature Sensor | - | 1.000 | $ 57.41 | ADD TO CART | |
| P10114438 | Header Sensor | - | 1.000 | $ 45.32 | ADD TO CART |
