Parts for Ariston Group USA (NTI Boilers) Tx151C:

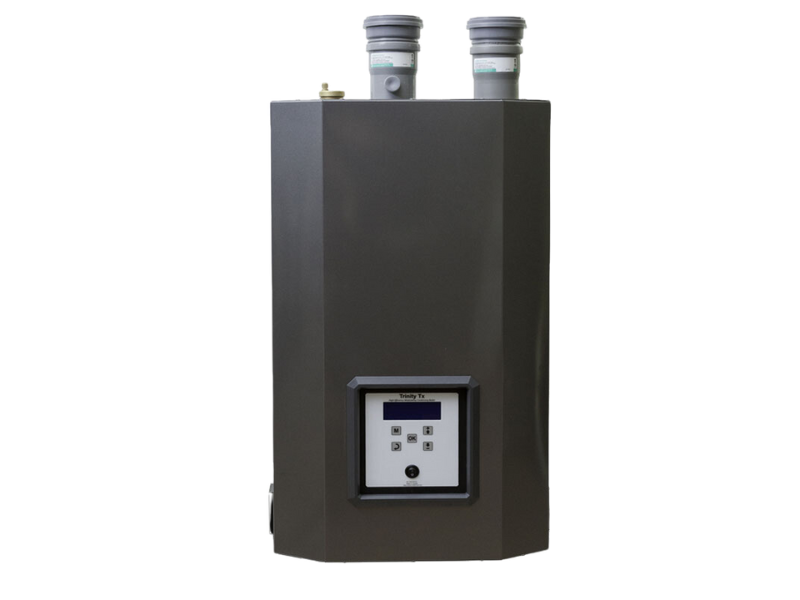

Trinity, High Efficiency Condensing Boiler, 151C
Manufacturer: Ariston Group USA (NTI Boilers)
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
82 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10102894 | Flue Outlet Gasket | - | 1.000 | $ 10.08 | ADD TO CART |
|
P10102212 | Blower Gasket | - | 1.000 | $ 8.96 | ADD TO CART |
|
P10102960 | Blower/Venturi Assembly, 532 | - | 1.000 | $ 819.49 | ADD TO CART |
|
P10102866 | Gas Valve | - | 1.000 | $ 377.51 | ADD TO CART |
|
P10102890 | Ignition Electrode Gasket | - | 1.000 | $ 8.98 | ADD TO CART |
|
P10102906 | Outlet Sensor clip-on, c/w retaining clip | - | 1.000 | $ 62.33 | ADD TO CART |
|
P10102884 | O-ring (medium) Boiler Inlet/Outlet 3.2 x 19 | - 71999 | 1.000 | $ 9.08 | ADD TO CART |
|
P10103002 | O-ring Boiler Inlet/Outlet | 72000 - | 1.000 | $ 7.98 | ADD TO CART |
|
P10102742 | Auto Air Vent 1/2 in. NPT | - | 1.000 | $ 42.61 | ADD TO CART |
|
P10102904 | Flue Sensor | - | 1.000 | $ 50.87 | ADD TO CART |
|
P10103610 | Inlet/Pressure Sensor | - | 1.000 | $ 192.69 | ADD TO CART |
|
P10102964 | Brazed Plate Heat Exchanger | - | 1.000 | $ 284.85 | ADD TO CART |
|
P10102966 | Diverter Valve Stepper Motor | - | 1.000 | $ 86.06 | ADD TO CART |
|
P10102316 | Condensate Trap Assembly | - | 1.000 | $ 73.86 | ADD TO CART |
|
P10102892 | Deflector Insulation | - | 1.000 | $ 60.24 | ADD TO CART |
|
P10102888 | Burner Door Gasket, EPDM | - | 1.000 | $ 45.38 | ADD TO CART |
|
P10102886 | Burner Door Ceramic Insulation | - | 1.000 | $ 42.27 | ADD TO CART |
|
P10103086 | Flue Outlet Adapter c/w test plug | - | 1.000 | $ 100.25 | ADD TO CART |
|
P10102970 | Circulator Cartridge, UPS15-78 | - | 1.000 | $ 310.85 | ADD TO CART |
|
P10102358 | Spark Igniter Wire | 72170 - | 1.000 | $ 24.47 | ADD TO CART |
|
P10102972 | Fuse, LFT 3.15A, 250V | - | 1.000 | $ 7.99 | ADD TO CART |
|
P10103536 | Outdoor Sensor, 10K | - | 1.000 | $ 95.14 | ADD TO CART |
|
P10102952 | DHW Temperature/Flow Sensor VFS | - | 1.000 | $ 233.75 | ADD TO CART |
|
P10102898 | O-ring (large), Combi Block Inlet/Outlet, 4 x 17 | - | 1.000 | $ 6.71 | ADD TO CART |
|
P10102110 | Relief Valve 30 PSI | - | 1.000 | $ 88.58 | ADD TO CART |
|
P10103032 | Pressure Gauge Top Stem Mount 60 PSI | 72000 - | 1.000 | $ 24.58 | ADD TO CART |
|
P10102180 | 3½ Bird Screen | - | 1.000 | $ 14.49 | ADD TO CART |
|
P10102170 | Compression Gasket Rubber | - | 1.000 | $ 6.71 | ADD TO CART |
|
P10103128 | Auto Air Vent - IWC | - | 1.000 | $ 57.42 | ADD TO CART |
|
P10102896 | IWC - Integrated Water Control, Grundfos | - | 1.000 | $ 912.25 | ADD TO CART |
| P10102948 | Burner Assembly c/w door insulation & gasket | - | 1.000 | $ 765.02 | ADD TO CART | |
| P10102854 | Blower Mounting Screws, M5x12 Hex | - | 1.000 | $ 4.61 | ADD TO CART | |
| P10102910 | LP Orifice 5.05 mm | - | 1.000 | $ 26.35 | ADD TO CART | |
| P10103606 | Ignition Electrode c/w gasket & cable, gap = 3/16 to 1/4 inch | - | 1.000 | $ 94.98 | ADD TO CART | |
| P10102902 | Gas Valve Adapter c/w screws and O-ring | - | 1.000 | $ 64.96 | ADD TO CART | |
| P10102882 | Retaining Clip Boiler Outlet/Inlet Pipe 19mm | - 71999 | 1.000 | $ 17.32 | ADD TO CART | |
| P10103000 | Retaining Clip Boiler Outlet/Inlet Pipe 25mm | 72000 - | 1.000 | $ 17.23 | ADD TO CART | |
| P10102916 | Outlet Pipe 19mm, Combi | - 71999 | 1.000 | $ 24.77 | ADD TO CART | |
| P10103628 | Outlet Pipe 25mm, Combi | 72000 - | 1.000 | $ 127.11 | ADD TO CART | |
| P10102918 | Inlet Pipe 19mm, Combi | - 71999 | 1.000 | $ 33.70 | ADD TO CART | |
| P10102992 | Inlet Pipe 25mm, Combi | 72000 - | 1.000 | $ 94.30 | ADD TO CART | |
| P10102912 | Auto Air Vent Adapter | - | 1.000 | $ 34.00 | ADD TO CART | |
| P10102680 | Receptacle 120VAC | - | 1.000 | $ 7.98 | ADD TO CART | |
| P10102962 | Sight Glass, c/w gasket | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10103602 | Heat Exchanger ASME 5+1 | - 71999 | 1.000 | $ 2,862.42 | ADD TO CART | |
| P10103634 | Heat Exchanger ASME 5+1 | 72000 - | 1.000 | $ 3,314.86 | ADD TO CART | |
|
P10103490 | Condensate Drain Tube, 17 in., c/w retaining nut & gear clamps | - | 1.000 | $ 98.64 | ADD TO CART |
| P10102592 | Grommet, Diaphragm 1/2 in. | - | 1.000 | $ 6.88 | ADD TO CART | |
| P10103608 | Ionization Electrode c/w gasket & cable | - | 1.000 | $ 86.57 | ADD TO CART | |
| P10102900 | MJ Coupling 1-1/2 x 1-1/4 | - | 1.000 | $ 29.91 | ADD TO CART | |
| P10102178 | 2 in. Bird Screen | - | 1.000 | $ 12.32 | ADD TO CART | |
| P10102940 | Air Inlet Assembly | - | 1.000 | $ 127.95 | ADD TO CART | |
| P10103088 | Air Inlet Adapter | - | 1.000 | $ 102.00 | ADD TO CART | |
|
P10102976 | Wall Mount Bracket Top | - | 1.000 | $ 44.82 | ADD TO CART |
| P10102308 | Gas Line Grommet 1/2 in. IPS | - | 1.000 | $ 13.45 | ADD TO CART | |
| P10102950 | Thermal Fuse | - | 1.000 | $ 21.63 | ADD TO CART | |
| P10102696 | Air Vent Grommet, 1875 | - | 1.000 | $ 6.72 | ADD TO CART | |
| P10102938 | Wall Mount Bracket Bottom | - | 1.000 | $ 45.53 | ADD TO CART | |
| P10103614 | Display Assembly, 210LB | - | 1.000 | $ 415.51 | ADD TO CART | |
| P10103538 | Spark Ignition Transformer | 72170 - | 1.000 | $ 252.58 | ADD TO CART | |
| P10102914 | Pressure Sensor Retaining Clip | - | 1.000 | $ 9.20 | ADD TO CART | |
| P10103004 | Relief Valve Manifold | 72000 - | 1.000 | $ 102.39 | ADD TO CART | |
| P10164713 | Controller, 210MN | - | 1.000 | $ 551.80 | ADD TO CART | |
| P10164714 | Wiring Harness Complete | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10102874 | Heat Exchanger Support Rail c/w screws | - | 1.000 | $ 28.01 | ADD TO CART | |
| P10102876 | Heat Exchanger Support Front Clip | - | 1.000 | $ 12.55 | ADD TO CART | |
| P10102974 | Gas Valve to Venturi Gasket | - | 1.000 | $ 7.87 | ADD TO CART | |
| P10102150 | Elbow Brass 3/4 | 72000 - | 1.000 | $ 11.33 | ADD TO CART | |
| P10102978 | Retaining Clips, Combi Block Inlet/Outlet | - | 1.000 | $ 26.76 | ADD TO CART | |
| P10102518 | Plug Dome 7/8 in. | - | 1.000 | $ 6.78 | ADD TO CART | |
| P10440546 | DHW Fitting Set, 3/4 in. NPT, c/w O-rings, Tx151C | - | 1.000 | $ 96.81 | ADD TO CART | |
| P10102982 | CH Fittings (c/w O-ring), Combi Block, 3/4 in. NPT | - | 1.000 | $ 116.70 | ADD TO CART | |
| P10102984 | Retaining Clip Air Vent Adapter | - | 1.000 | $ 7.80 | ADD TO CART | |
| P10102678 | Rocker Power Switch | - | 1.000 | $ 7.88 | ADD TO CART | |
| P10102438 | CPVC Pipe 3 in., System 636, 5 in. Long | - | 1.000 | $ 71.07 | ADD TO CART | |
| P10164715 | Pressure Gauge Back Mount 60 PSI | - 71999 | 1.000 | $ 13.39 | ADD TO CART | |
| P10440547 | Natural Gas to LP Conversion Instructions | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102930 | LP Conversion Decal | - | 1.000 | $ 37.85 | ADD TO CART | |
| P10102344 | Y-Strainer Brass, 3/4 in. 100M Screen | - | 1.000 | $ 137.51 | ADD TO CART | |
| P10102924 | Low Loss Header Pipe, FIDT | - 71999 | 1.000 | $ 123.23 | ADD TO CART | |
| P10103006 | Low Loss Header Pipe, FIDT | 72000 - | 1.000 | $ 84.65 | ADD TO CART | |
| P10103626 | NG to LP Conversion Kit, Tx151 & Tx151C (5+1) | - | 1.000 | $ 44.74 | ADD TO CART |
