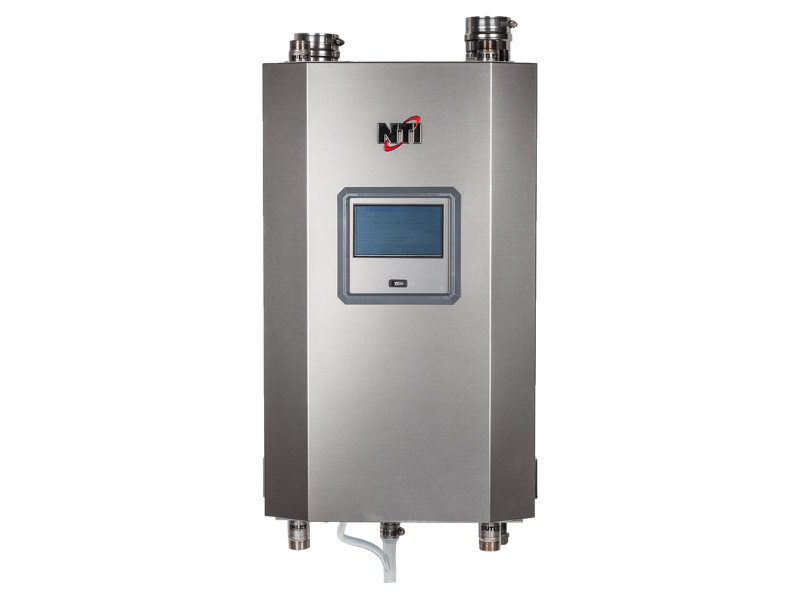

Parts for Ariston Group USA (NTI Boilers) Tft201:
Trinity Tft, Trinity Tft Boiler, 201
Manufacturer: Ariston Group USA (NTI Boilers)
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
89 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10103194 | Premix Burner | - | 1.000 | $ 518.40 | ADD TO CART |
|
P10102698 | Blower Gasket | - | 1.000 | $ 27.91 | ADD TO CART |
|
P10103338 | EBM Blower, NRV118 | - | 1.000 | $ 955.83 | ADD TO CART |
|
P10103204 | Gas Valve, GB 055, 24VDC | - | 1.000 | $ 474.05 | ADD TO CART |
|
P10102672 | Sensor Supply & Return Dual | - | 1.000 | $ 79.42 | ADD TO CART |
|
P10102682 | Low Water Cut Off | - | 1.000 | $ 228.14 | ADD TO CART |
|
P10102742 | Auto Air Vent 1/2 in. NPT | - | 1.000 | $ 48.85 | ADD TO CART |
|
P10102342 | Flue Sensor Dual | - | 1.000 | $ 83.58 | ADD TO CART |
|
P10102316 | Condensate Trap | 119300 - 15139 | 1.000 | $ 92.36 | ADD TO CART |
|
P10103642 | Condensate Trap | 15140 - 119299 | 1.000 | $ 95.83 | ADD TO CART |
|
P10102778 | Burner Plate Gasket | - | 1.000 | $ 120.89 | ADD TO CART |
|
P10102782 | Burner Plate Ceramic Disc | - | 1.000 | $ 89.74 | ADD TO CART |
|
P10102142 | 1-1/2 in. MJ Coupling | - | 1.000 | $ 36.94 | ADD TO CART |
|
P10102352 | Hose Clamp 1-1/16 to 1-1/2 | - | 1.000 | $ 9.12 | ADD TO CART |
|
P10103096 | Blocked Condensate Drain / Blocked Vent Switch | - | 1.000 | $ 90.74 | ADD TO CART |
|
P10102358 | Spark Igniter Wire 12 in. | - | 1.000 | $ 30.29 | ADD TO CART |
|
P10103558 | Power Supply White Touch Screen Only, Newer Model | - | 1.000 | $ 441.20 | ADD TO CART |
|
P10103420 | Transformer 24V at 40VA | - | 1.000 | $ 190.03 | ADD TO CART |
|
|
P10103502 | Transformer 24V at 40VA, Newer Model | - | 1.000 | $ 187.59 | ADD TO CART |
|
P10102116 | Sola Controller, Honeywell R7910B1015/B | - | 1.000 | $ 905.19 | ADD TO CART |
|
P10102318 | Fuse 2A 32V Plug Style | - | 1.000 | $ 7.96 | ADD TO CART |
|
P10102578 | Fuse Holder Panel Mount 20A 250VAC max | - | 1.000 | $ 21.68 | ADD TO CART |
|
P10102364 | Fuse 7A 250VAC Barrel Style Fast Blow | - | 1.000 | $ 10.33 | ADD TO CART |
|
P10102848 | Display Mounting Support, White Touch Screen, Tft | - | 1.000 | $ 92.09 | ADD TO CART |
|
P10103536 | Outdoor Sensor 10K | - | 1.000 | $ 106.04 | ADD TO CART |
|
P10102110 | Pressure Relief Valve ASME, 3/4 in. NPT 30psi | - | 1.000 | $ 97.52 | ADD TO CART |
|
P10103130 | Tridicator | - | 1.000 | $ 85.66 | ADD TO CART |
|
P10102180 | Round Mesh Vent Screen 3 in. | - | 1.000 | $ 18.95 | ADD TO CART |
| P10102774 | Premix Burner | - | 1.000 | $ 571.33 | ADD TO CART | |
| P10102776 | Premix Burner Gasket | - | 1.000 | $ 29.16 | ADD TO CART | |
| P10103202 | Venturi Housing (w/o Venturi Insert) | - | 1.000 | $ 288.60 | ADD TO CART | |
| P10103274 | LP-Venturi Insert | - | 1.000 | $ 113.90 | ADD TO CART | |
| P10164723 | Ignition Electrode, Dual, (Includes P/N: 82774), gap = 3/16 to 1/4 inch | - | 1.000 | $ 100.72 | ADD TO CART | |
| P10102220 | Igniter Gasket, Graphite (Ignition Electrode / Flame Rod) | - | 1.000 | $ 18.09 | ADD TO CART | |
| P10103062 | O-Ring Gas Valve Inlet | - | 1.000 | $ 10.07 | ADD TO CART | |
| P10103166 | Gas Valve Inlet Adapter | - | 1.000 | $ 33.32 | ADD TO CART | |
| P10102724 | Pipe Coupling Groove Joint 1-1/4 in. | - | 1.000 | $ 57.92 | ADD TO CART | |
| P10102712 | Supply Pipe SS 1-1/4 in. | - | 1.000 | $ 452.92 | ADD TO CART | |
| P10102714 | Return Pipe SS 1-1/4 in. | - | 1.000 | $ 428.46 | ADD TO CART | |
| P10102680 | Receptacle 120VAC | - | 1.000 | $ 8.99 | ADD TO CART | |
| P10103588 | Sight Glass Assembly, Tft-series | - | 1.000 | $ 163.41 | ADD TO CART | |
| P10164858 | Heat Exchanger ASME | - | 1.000 | $ 6,616.63 | ADD TO CART | |
| P10102760 | Tube Strap | - | 1.000 | $ 4.51 | ADD TO CART | |
| P10102862 | Grommet Flue Sensor | - | 1.000 | $ 24.72 | ADD TO CART | |
|
P10102746 | Elbow Brass Street 90 3/4 in. | - | 1.000 | $ 24.11 | ADD TO CART |
| P10102780 | Burner Plate | - | 1.000 | $ 303.05 | ADD TO CART | |
| P10102592 | Grommet Diaphragm 1/2 in. | - | 1.000 | $ 8.04 | ADD TO CART | |
| P10103460 | Flame Rod | - | 1.000 | $ 108.93 | ADD TO CART | |
| P10164859 | Air Inlet Assembly | - | 1.000 | $ 76.22 | ADD TO CART | |
| P10103578 | Flue Outlet Adapter SS 3 in., (304066) | - | 1.000 | $ 457.71 | ADD TO CART | |
| P10102690 | Air Inlet Adapter SS 3 in. | - | 1.000 | $ 222.76 | ADD TO CART | |
| P10164779 | Condensate Drain Adapter Tube | - 119299 | 1.000 | $ 78.11 | ADD TO CART | |
| P10103640 | Condensate Drain Adapter Tube Kit | 15140 - 119299 | 1.000 | $ 97.08 | ADD TO CART | |
| P10102756 | Exhaust Test Plug EPDM | - | 1.000 | $ 9.09 | ADD TO CART | |
| P10102808 | Wall Mount Bracket | - | 1.000 | $ 105.40 | ADD TO CART | |
| P10102308 | Grommet Vinyl 7/8 OD 1/2 in. IPS, (1020T) | - | 1.000 | $ 16.82 | ADD TO CART | |
| P10102694 | Grommet Vinyl 1-1/4 in. IPS, (1625) | - | 1.000 | $ 7.82 | ADD TO CART | |
| P10164860 | Touchscreen Upgrade Kit, Tft | - | 1.000 | $ 1,869.94 | ADD TO CART | |
| P10102864 | Display Black Touch Screen, S7999D | - | 1.000 | $ 1,753.98 | ADD TO CART | |
| P10102674 | Terminal, Barrier 2 Row, 8 Position | - | 1.000 | $ 19.66 | ADD TO CART | |
| P10102840 | Control Panel Support | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10103538 | Ignition Coil | - | 1.000 | $ 299.19 | ADD TO CART | |
| P10102160 | Snap Bushing 1 in. | - | 1.000 | $ 14.56 | ADD TO CART | |
| P10103530 | Power Supply White Touch Screen Only | - | 1.000 | $ 432.73 | ADD TO CART | |
| P10102852 | Control Panel Cover | - | 1.000 | $ 112.92 | ADD TO CART | |
| P10102844 | Control Panel | - | 1.000 | $ 915.93 | ADD TO CART | |
| P10102676 | Terminal Barrier 2 Row 9 Position | - | 1.000 | $ 29.67 | ADD TO CART | |
| P10102850 | Display Cover White Touch Screen, Tft | - | 1.000 | $ 65.92 | ADD TO CART | |
| P10103374 | Outdoor Sensor 10K | - | 1.000 | $ 104.35 | ADD TO CART | |
| P10102830 | Front Cover | - | 1.000 | $ 232.32 | ADD TO CART | |
| P10102818 | Right Side | - | 1.000 | $ 207.14 | ADD TO CART | |
| P10102824 | Left Side | - | 1.000 | $ 120.39 | ADD TO CART | |
| P10102804 | Top Panel Access Cover | - | 1.000 | $ 122.75 | ADD TO CART | |
| P10102814 | Bottom Heat Exchanger Support | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102812 | Top Heat Exchanger Support | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102974 | Gas Valve to Venturi Gasket | - | 1.000 | $ 10.12 | ADD TO CART | |
|
P10102444 | System Sensor Pipe Sensor | - | 1.000 | $ 83.45 | ADD TO CART |
| P10102260 | Hose Clamp 9/16 to 1-1/16 | - | 1.000 | $ 9.16 | ADD TO CART | |
| P10103144 | Gas Supply Manifold | - | 1.000 | $ 185.67 | ADD TO CART | |
| P10103186 | Gasket Gas Line | - | 1.000 | $ 16.11 | ADD TO CART | |
| P10102738 | Brass Bushing 1-1/4 in. x 3/4 in. | - | 1.000 | $ 28.86 | ADD TO CART | |
|
P10102730 | Brass Tee 1-1/4 in. x 1/2 in. x 1-1/4 in. | - | 1.000 | $ 71.17 | ADD TO CART |
| P10102518 | Plug 7/8 in. Black Dome | - | 1.000 | $ 8.00 | ADD TO CART | |
| P10103370 | Gas Valve Rectifier Box Kit | - | 1.000 | $ 73.32 | ADD TO CART | |
| P10102750 | Switch On-Off | - | 1.000 | $ 19.66 | ADD TO CART | |
| P10102438 | CPVC Pipe 3 in., System 636, 5 in. Long | - | 1.000 | $ 71.79 | ADD TO CART | |
| P10060998 | Natural Gas To LP Conversion Instructions, (Included in 85801-1) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10103282 | Conversion Decal, (Included In 85801-1) | - | 1.000 | $ 95.86 | ADD TO CART | |
| P10103662 | NG to LP Conversion Kit | - | 1.000 | $ 96.40 | ADD TO CART |
