Parts for NTI Boilers Lx400WH:
Lx
Manufacturer: NTI Boilers
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
76 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10103518 | Premix burner (Lx400-500) | - | 1.000 | $ 1,007.34 | ADD TO CART |
|
P10102206 | Premix Burner Gasket (Lx150-500) | - | 1.000 | $ 21.63 | ADD TO CART |
|
P10102212 | Blower Gasket (Lx150-500) | - | 1.000 | $ 6.18 | ADD TO CART |
|
P10103476 | EBM Blower RG148/Enhanced (Lx400) | - | 1.000 | $ 1,023.82 | ADD TO CART |
|
P10102258 | O-ring, Venturi to Blower (Lx400) | - | 1.000 | $ 5.15 | ADD TO CART |
|
P10102232 | Gas Valve VR8615VB 1044B (Lx400) | - | 1.000 | $ 503.67 | ADD TO CART |
|
P10102340 | Outlet Sensor, Dual (Lx Series) | - | 1.000 | $ 52.53 | ADD TO CART |
|
P10103510 | Low Water Pressure Switch, 1/4 in NPT (Lx150-400) | - | 1.000 | $ 94.76 | ADD TO CART |
|
P10102342 | Flue Sensor, Dual (Lx150-400) | - | 1.000 | $ 42.23 | ADD TO CART |
|
P10102338 | Inlet Sensor, Single (Lx Series) | - | 1.000 | $ 47.38 | ADD TO CART |
|
P10102216 | Burner Door Viton Gasket (Lx150-500) | - | 1.000 | $ 66.95 | ADD TO CART |
|

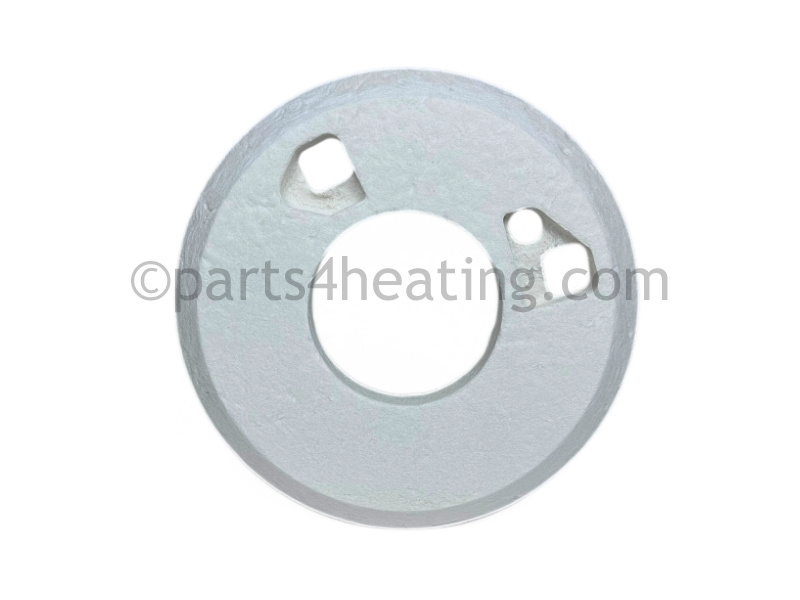

P10102414 | Burner Door Ceramic Disc (Lx300-400) | - | 1.000 | $ 26.78 | ADD TO CART |
|
P10102390 | Cast Alum Burner Door (Lx150-200,500) | - | 1.000 | $ 86.52 | ADD TO CART |
|
P10103550 | Cast Alum Burner Door (Lx300-400) | - | 1.000 | $ 191.33 | ADD TO CART |
|
P10103458 | Flame Rod (Lx150-500) | - | 1.000 | $ 57.68 | ADD TO CART |
|
P10102192 | Air Switch Huba 604.E021180 set @ .15 in w.c. (Lx Series) | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10102358 | Spark Igniter Wire, 12 in (Lx Series) | - | 1.000 | $ 30.90 | ADD TO CART |
|
P10103502 | Transformer, 24V, 40VA (Lx150-400) | - | 1.000 | $ 59.74 | ADD TO CART |
|
P10102334 | ICP Honeywell Sola Controller R7910B1015/B (Lx150-400) | - | 1.000 | $ 561.35 | ADD TO CART |
|
P10102318 | Fuse, Matrix/Lx, 2 Amp (Lx150-400) | - | 1.000 | $ 4.12 | ADD TO CART |
|
P10102578 | Fuse Holder, 20 Amp at 250VAC Max (Lx Series) | - | 1.000 | $ 13.39 | ADD TO CART |
|
P10102364 | Fuse, Littlefuse 7A, 250VAC, Fast Blow (Lx Series) | - | 1.000 | $ 5.15 | ADD TO CART |
|
P10102404 | High-Vent Pressure Switch, AFS460-367 (Lx300-400) | - | 1.000 | $ 179.22 | ADD TO CART |
| P10102274 | Extended Air Tube (Lx300-500) | - | 1.000 | $ 130.81 | ADD TO CART | |
|
P10102234 | CVI Venturi (Lx400) | - | 1.000 | $ 167.89 | ADD TO CART |
| P10102238 | Gas Valve Orifice, 8.0mm, NG (Lx400) | - | 1.000 | $ 29.87 | ADD TO CART | |
| P10102244 | Gas Valve Orifice, 6.2mm, LP (Lx400) | - | 1.000 | $ 26.78 | ADD TO CART | |
| P10164723 | Ignition Electrode, Dual - c/w gasket (Lx150-500), gap = 3/16 to 1/4 inch | - | 1.000 | $ 73.42 | ADD TO CART | |
| P10102220 | Flame Probe Gasket (Lx Series) | - | 1.000 | $ 6.18 | ADD TO CART | |
| P10102272 | Gas Valve Connector O-ring, Large (Lx400) | - | 1.000 | $ 6.18 | ADD TO CART | |
| P10102236 | Gas Valve Adapter 45900400-138B, 3/4 in NPT (Lx400) | - | 1.000 | $ 27.81 | ADD TO CART | |
| P10102198 | 1/4 in NPT Brass Tee (Lx300-400) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10102240 | 1/4 inx 1/8 in Bushing Brass (Lx Series) | - | 1.000 | $ 6.18 | ADD TO CART | |
| P10164702 | Automatic Air Vent 1/8 in (Lx Series) | - | 1.000 | $ 31.93 | ADD TO CART | |
| P10102346 | Plug, Brass, 1/4 in NPT (Lx150-400) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10103466 | Heat Exchanger-ASME (Lx400) | - | 1.000 | $ 6,484.88 | ADD TO CART | |
| P10102356 | Tee, PVC, 1/2 in, Sch.40, White (Lx Series) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102354 | Elbow, Street, PVC, 1/2 in, Sch.40, White (Lx Series) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102402 | Condensate Drain Tube (Lx300-400) | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10103496 | Trinity Divider Plate Insulation c/w Washer & Screw (Lx Series) | - | 1.000 | $ 58.71 | ADD TO CART | |
|
P10102362 | Burner Door Ceramic Disc (Lx150-200,500) | - | 1.000 | $ 35.02 | ADD TO CART |
| P10102412 | Nipple, 1/4 in x 6 in, Brass 113-B6 (Lx300-400) | - | 1.000 | $ 17.51 | ADD TO CART | |
| P10103552 | 2 in Gear Clamp Assembly (Lx400) | - | 1.000 | $ 13.39 | ADD TO CART | |
| P10102416 | Air Inlet Assembly (Lx400) | - | 1.000 | $ 86.52 | ADD TO CART | |
| P10102280 | Flue Outlet Adapter (Lx300-400) | - | 1.000 | $ 288.40 | ADD TO CART | |
| P10102226 | Coupling, Rubber , 4 in, Fernco (Lx300-400) | - | 1.000 | $ 35.02 | ADD TO CART | |
| P10102478 | Exhaust Test Plug (Lx300-800) | - | 1.000 | $ 16.48 | ADD TO CART | |
| P10102418 | Wall Mounting Clip (Lx300-400) | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10102406 | Grommet, Vinyl, 3/4 in IPS (Lx400) | - | 1.000 | $ 3.09 | ADD TO CART | |
| P10102408 | Grommet, Vinyl, 2 in OD (Lx300-400) | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10102420 | Air Switch Bracket (Lx300-400) | - | 1.000 | $ 27.81 | ADD TO CART | |
| P10102422 | Wall Mounting Support, Bottom (Lx300-400) | - | 1.000 | $ 35.02 | ADD TO CART | |
| P10102314 | Display Molding (Models manufactured before June 1, 2012) | - | 1.000 | $ 140.08 | ADD TO CART | |
| P10102858 | Display Molding (Models manufactured after June 1, 2012) | - | 1.000 | $ 110.21 | ADD TO CART | |
| P10103532 | Display Upgrade kit (Models manufactured before June 1, 2012) | - | 1.000 | $ 980.56 | ADD TO CART | |
| P10102864 | Display S7999D, Black (Models manufactured after June 1, 2012) | - | 1.000 | $ 1,272.05 | ADD TO CART | |
| P10102368 | Barrier Strip, Line Voltage (Lx Series) | - | 1.000 | $ 21.63 | ADD TO CART | |
| P10103538 | Ignition Coil Q652B1006/B (Lx Series) | - | 1.000 | $ 189.52 | ADD TO CART | |
| P10102160 | SNAP BUSHING, 1 in (Lx Series) | - | 1.000 | $ 3.09 | ADD TO CART | |
| P10103530 | Power Supply - Touch Screen (Lx Series) | - | 1.000 | $ 245.14 | ADD TO CART | |
| P10102380 | Drawer Cover (Lx150-400) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102382 | Drawer (Lx150-400) | - | 1.000 | $ 96.82 | ADD TO CART | |
| P10102366 | Barrier Strip, Low Voltage (Lx150-400) | - | 1.000 | $ 28.84 | ADD TO CART | |
| P10102386 | Touch Screen Display Support (Lx Series) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10103374 | Outdoor Sensor, 10K (Lx Series) | - | 1.000 | $ 57.68 | ADD TO CART | |
| P10102424 | Front Cover (Lx300-400) | - | 1.000 | $ 146.26 | ADD TO CART | |
| P10102426 | Right Side R1 (Lx400) | - | 1.000 | $ 268.83 | ADD TO CART | |
| P10102428 | Left Side (Lx400) | - | 1.000 | $ 85.49 | ADD TO CART | |
| P10102228 | Front Top (Lx400) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102430 | Rear Top (Lx300-400) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102432 | Fuel-Air Metallic Tubing with Ends (Lx400) | - | 1.000 | $ 42.23 | ADD TO CART | |
| P10102434 | Gas Valve Orifice O-ring, Large (Lx400) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102444 | System Sensor, Pipe Sensor TSA00A4 (Lx Series) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102242 | Gas Valve Harness (Lx400) | - | 1.000 | $ 31.93 | ADD TO CART | |
| P10102670 | Thermal Fuse, Heat Exchanger Exterior (Lx300-800) | - | 1.000 | $ 20.60 | ADD TO CART | |
| P10103008 | M5 Reset Safety Switch (Lx300-800) | - | 1.000 | $ 22.66 | ADD TO CART |
